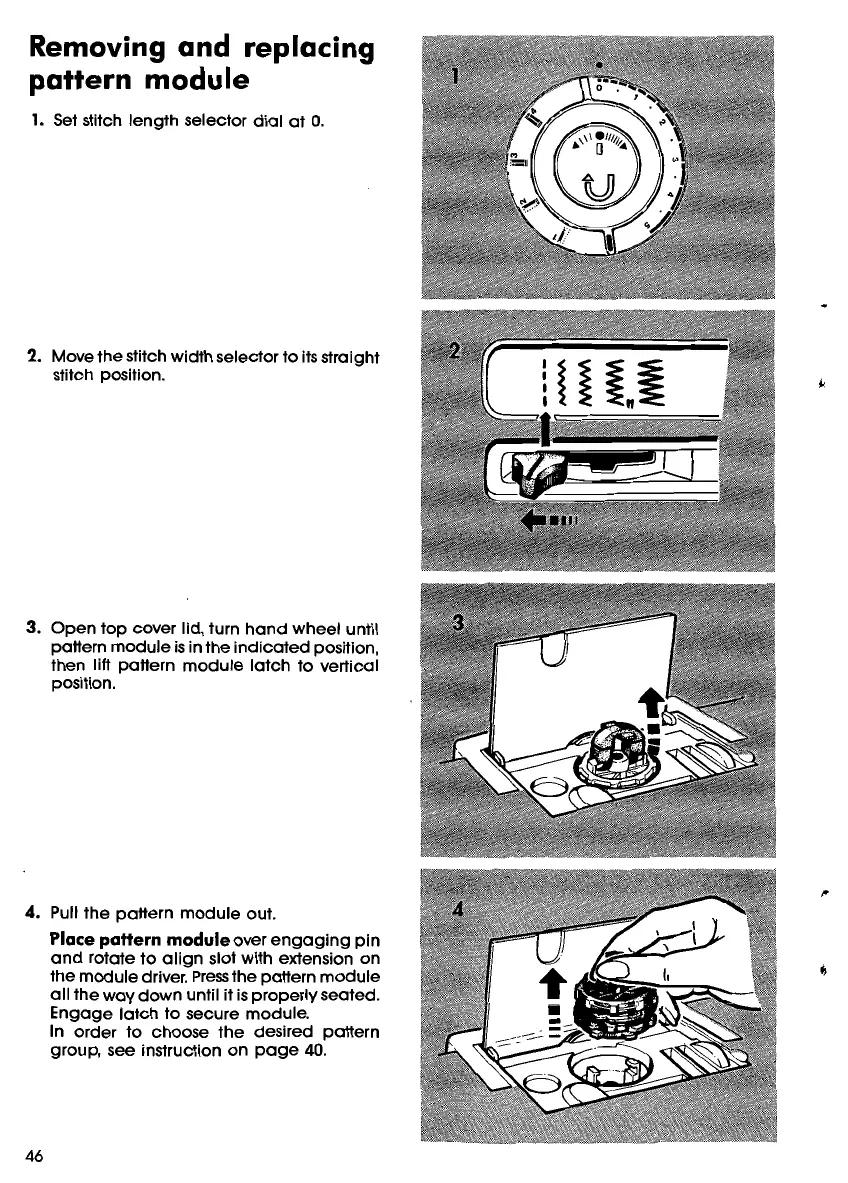

Removing and replacing
pattern module
1. Set stitch length selector dial at O.
2. Move the stitch width selector to itsstraight
stitch position.
3.
Open top cover lid, turn hand wheel untíl
pattem
module isin the indicated position,
then 11ft pattem module latch to vertical
position.
4. Pull
the pattem module out.
Place pattern module over engaging pin
and rotate to align slot with extension on
the
module driver. Press the pattem module
ali the way down until it is properly seated.
Engage latch to secure module.
In order to choose the desired pattem
group, see instruction on page 40.
46
