4.1 Crank handle, hand wheel
■
Motor driven operation of the crank handle/hand wheel is not permitted.
■
After commissioning, the actuator must not be operated beyond the parameterized end posi-
tions using the crank handle/hand wheel.
■
When pressing in the crank handle/ the hand wheel, make sure that the hand is not between
the crank handle/the hand wheel and the housing: Danger of crushing! See the following opera-
tion step 3.
During motor operation the crank handle/the hand
wheel does not turn.
Operation
Operation of all actuators except for 2SG5:
1. The actuator must be at standstill (1).
2. Remove the clamp (option) (2). The clamp is used
as protection against accidental engaging of the
crank handle/the hand wheel, if the actuator is expo-
sed to heavy vibration or water pressure (enclosure
protection IP 68).
3. Press crank handle/hand wheel in direction of the
gear housing against the spring force (3) and turn
(4). (Caution: Danger of crushing when engaging!)
The hand wheel has priority over motorized operation. The actuator can only be operated electri-
cally once the crank handle/hand wheel is released.
If the actuator is operated manually in the „Remote“ state and an operation command is present,
the actuator is immediately operated after releasing the crank handle.
Only for 2SG5:
Turn hand wheel without pressing it in. Manual operation interferes with motor operation: If the hand
wheel is turned during motor operation, the positioning time is either extended or reduced, depen-
ding on the direction of rotation.
Direction of rotation
Clockwise turning of the crank handle/hand wheel leads to
■
2SA5 rotary actuator: Clockwise rotation of the output drive shaft (exception: 2SA5.7. and
2SA5.8.).
■
2SB5 linear actuator: Extension of the thrust rod.
■
2SC5 part-turn actuator: With view on the pointer cover of the worm gearbox: clockwise move-
ment of the coupling or lever arm with the worm gearbox versions RR or LR.
■
2SG5 part-turn actuator: With view on the mechanical position indicator: clockwise rotation at the
coupling or at the swing lever.

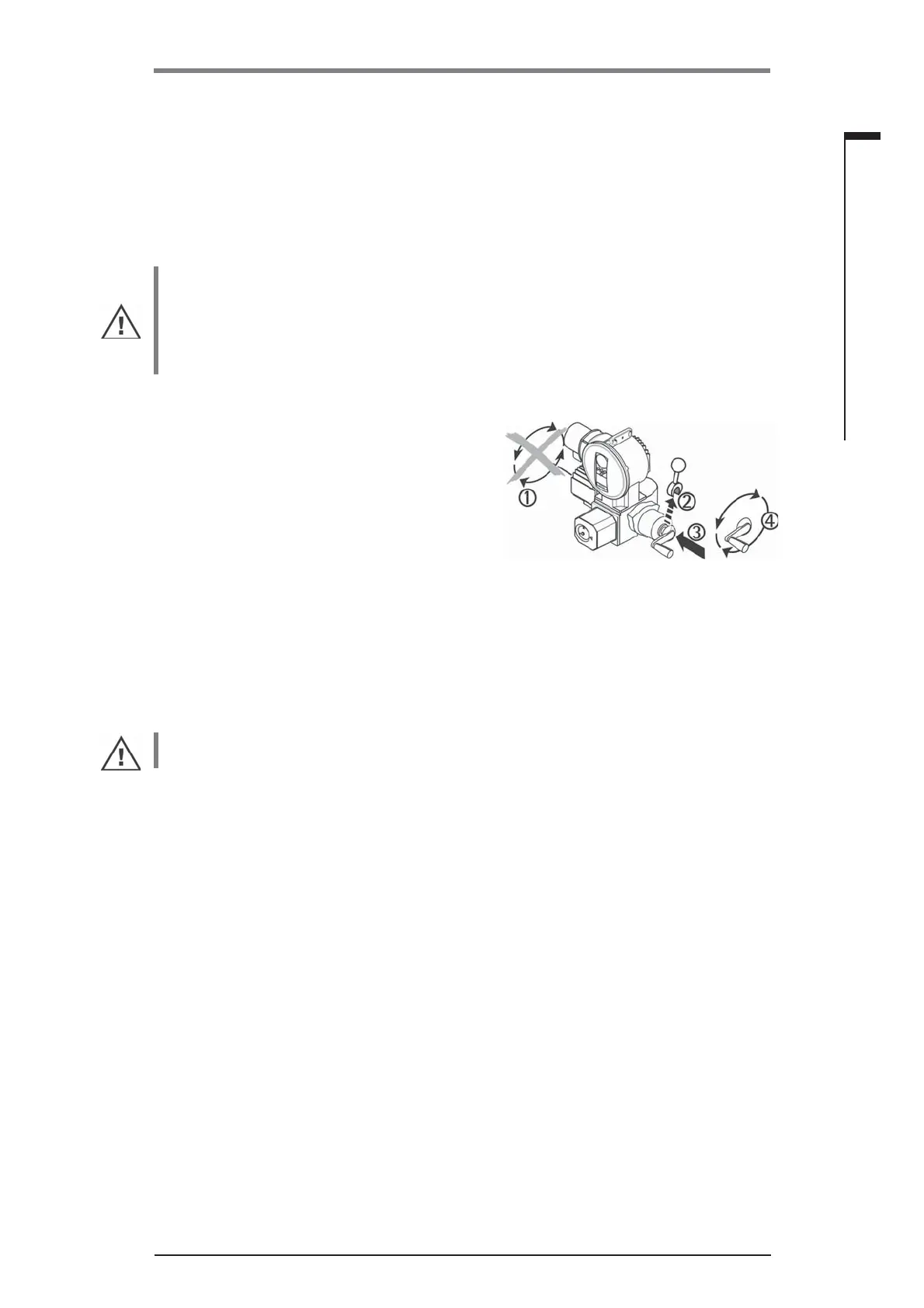

Fig.: Operating the crank handle
