SIPOS AKTORIK SIPOS 5 - Block Diagram (Electrical Connections)

Operation instructions
SIPOS 5 PROFITRON, HiMod
Page 8 Y070.020/GB
2 General
2
General
2.3 Block diagram (electrical connections)

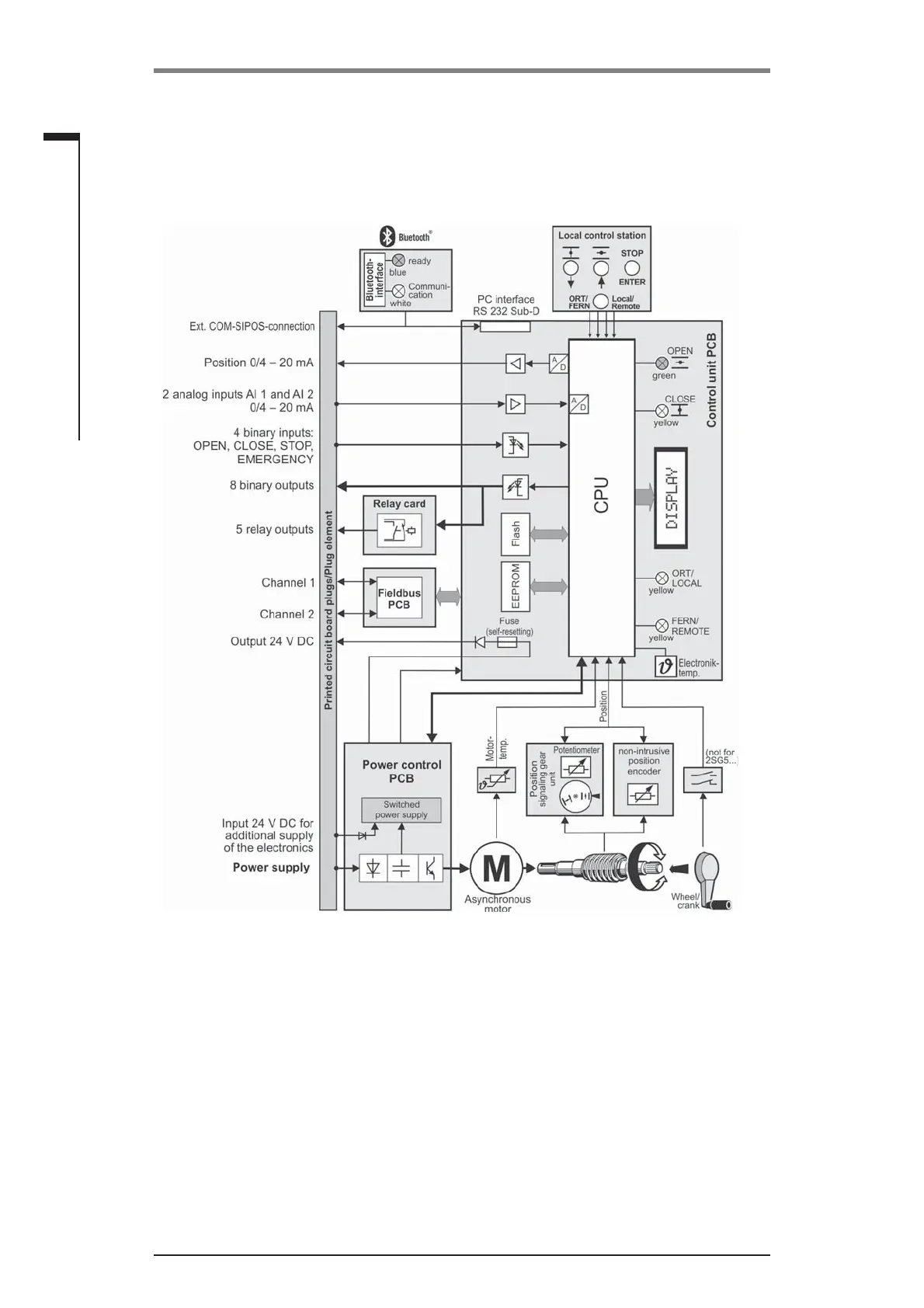

The block diagram shows the electronic sub-assemblies and the inputs and outputs for possible
customer-specifi c connections.
Fig.: Block diagram
