4 Instructions on operator control and operation
4
Instructions on operator control and operation

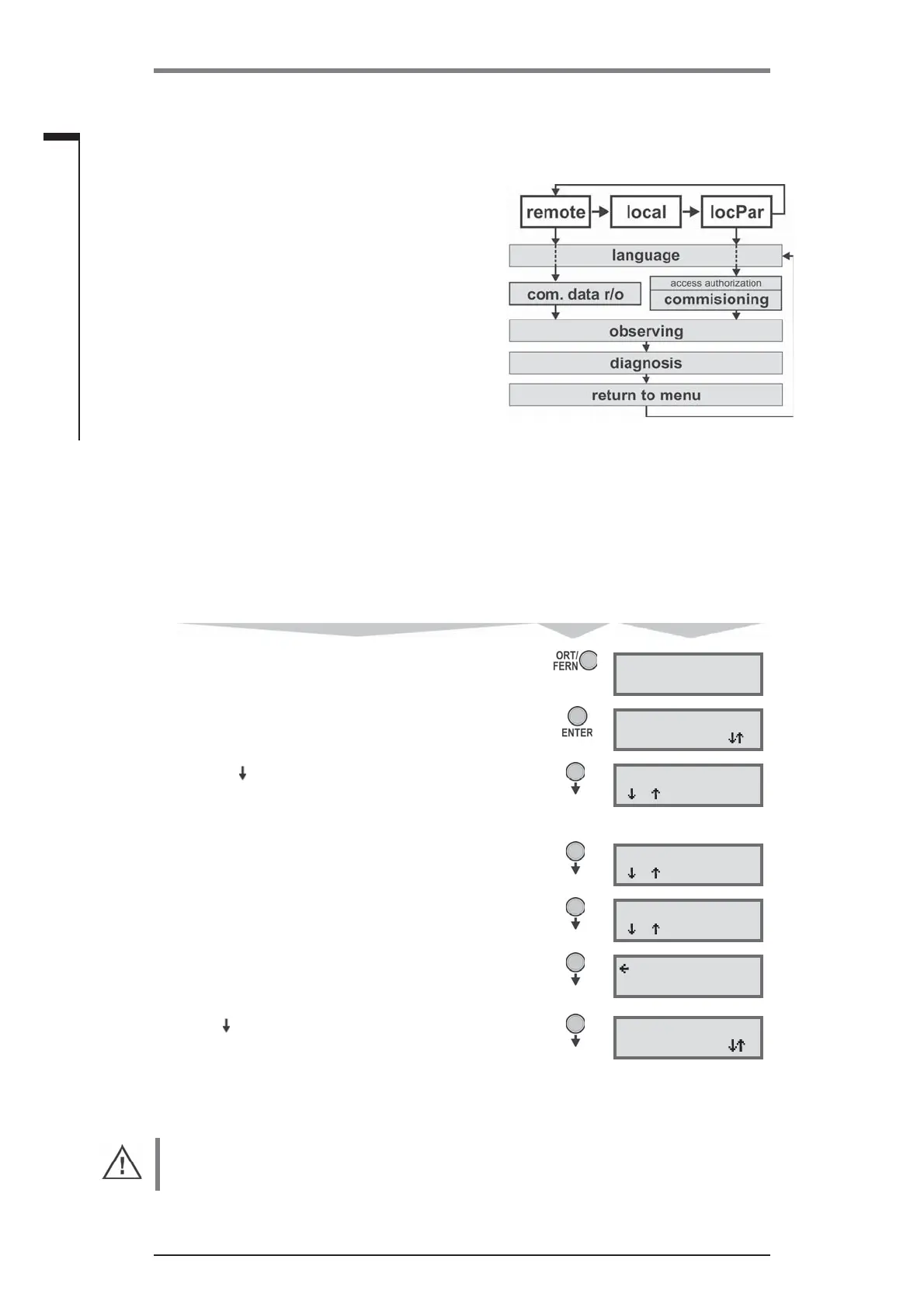

4.3.1 Main menu
Press the ENTER button to get from the „Remote“ and
„locPar“ states to the main menu.
The main menu has fi ve menu items:
■
language: Use this command to select another lan-
guage for the text in the display.
■
com. data r/o: This command can be accessed from
„Remote“. The current parameters can be read.
Or
commissioning: The „commissioning“ menu can
only be accessed from the „locPar“ state and after
entering the authorization code (4-digit code, see
also chapter 5.3). This menu is used to change the
actuator parameters.
Fig.: Main menu
■
observing: Indication of the devices state and fault signals in the display. Changing the values is
not possible. A resettable fault (refer to chapter 7) can however be acknowledged.
■
diagnosis: The operational data and the maintenance limits are indicated.
■
return to menu: The system returns to the initial state.
4.3.2 Scrolling up and down in the main menu
Instruction Button Message in the display
1. Set actuator to the „locPar“ or „Remote“ state.
In the „locPar“ state, the control is disabled by the DCS.
XXX
locPar ready
2. Use the ENTER button to call up the main menu.
The fi rst menu ‚Language‘ is indicated.
langu./Sprache
idioma/lingua E
3. Use the
button to scroll down in the main menu.
The next menu is displayed. If the main menu was ac-
cessed from the „Remote“ operation state, „com.data r/o“
is displayed.
commissioning
E
4. Scroll down to the next menu.
observing
E
5. Scroll down to the next menu.
diagnosis
E
6. Scroll down to the next menu.
Press the ENTER button to exit the main menu to the
initial state.*
return to menu
7. Press
buttons. The fi rst menu is displayed again.
langu./Sprache
idioma/lingua
E
* You can also use the „Local/Remote“ button to exit the menu. However, the actuator does not
return to the initial state, but to the next state in the „Remote“ – ”Local“ – ”locPar“ loop.
If the main menu was accessed from the „locPar“ state, and if the „Local/Remote“ button is
pressed, the actuator changes to the „Remote“ state and starts to move if a control command
from the DCS is present!
4.3 Main menu, menu control
