Maintenance
IM Machine Name Rev.: END 47

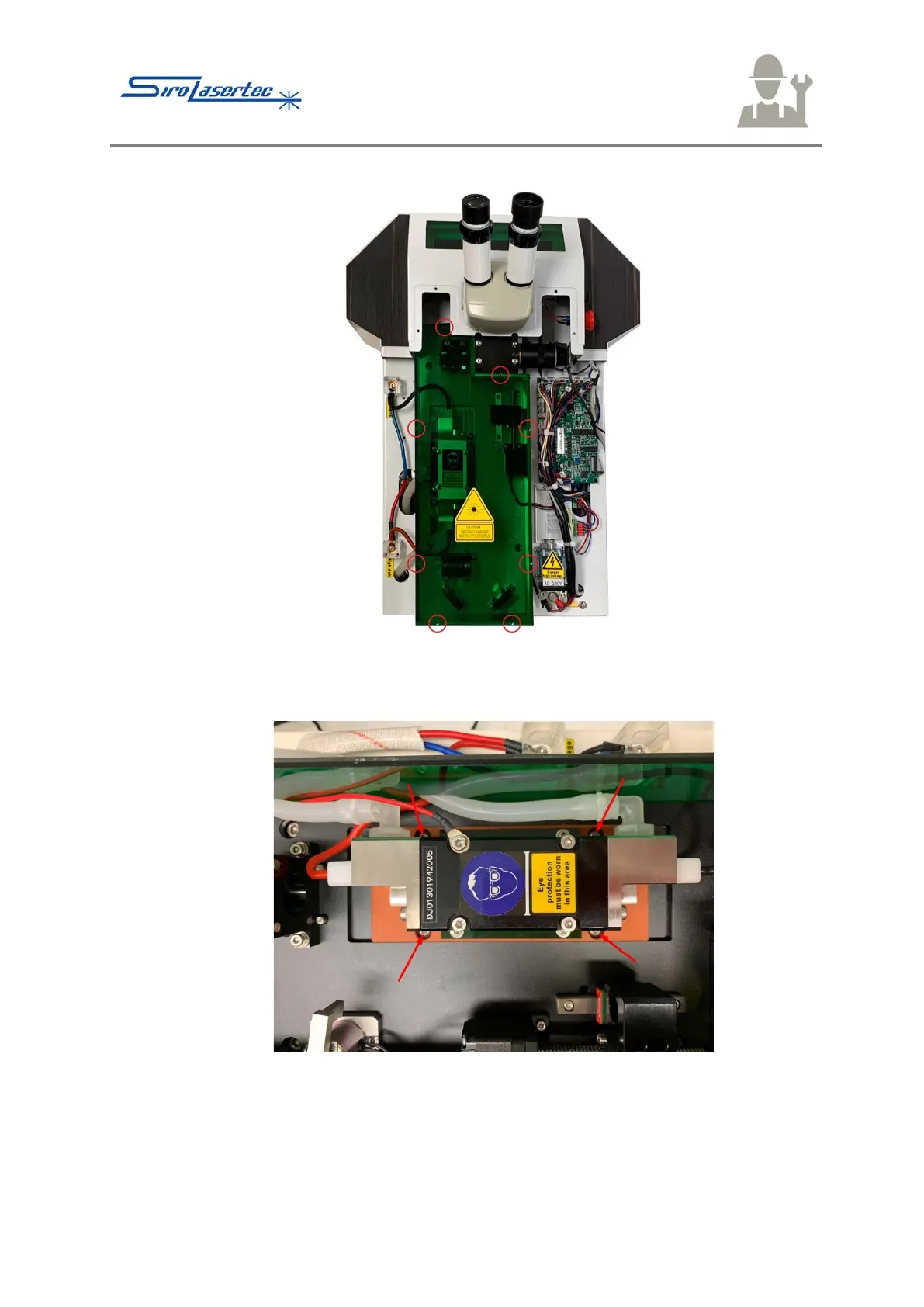

Illustration 25 Resonator Cover
● Remove all the screws of the resonator cover – outlined in red – and carefully
place the cover down.
Illustration 26 Laser Lamp Base Plate
● Remove the four retaining screws – red arrows – of the orange baseplate of the
cavity.
