Sirona C4+ - System Overview C4 + Cart

Sirona Dental Systems GmbH 3 System versions
Operating Instructions C4
+

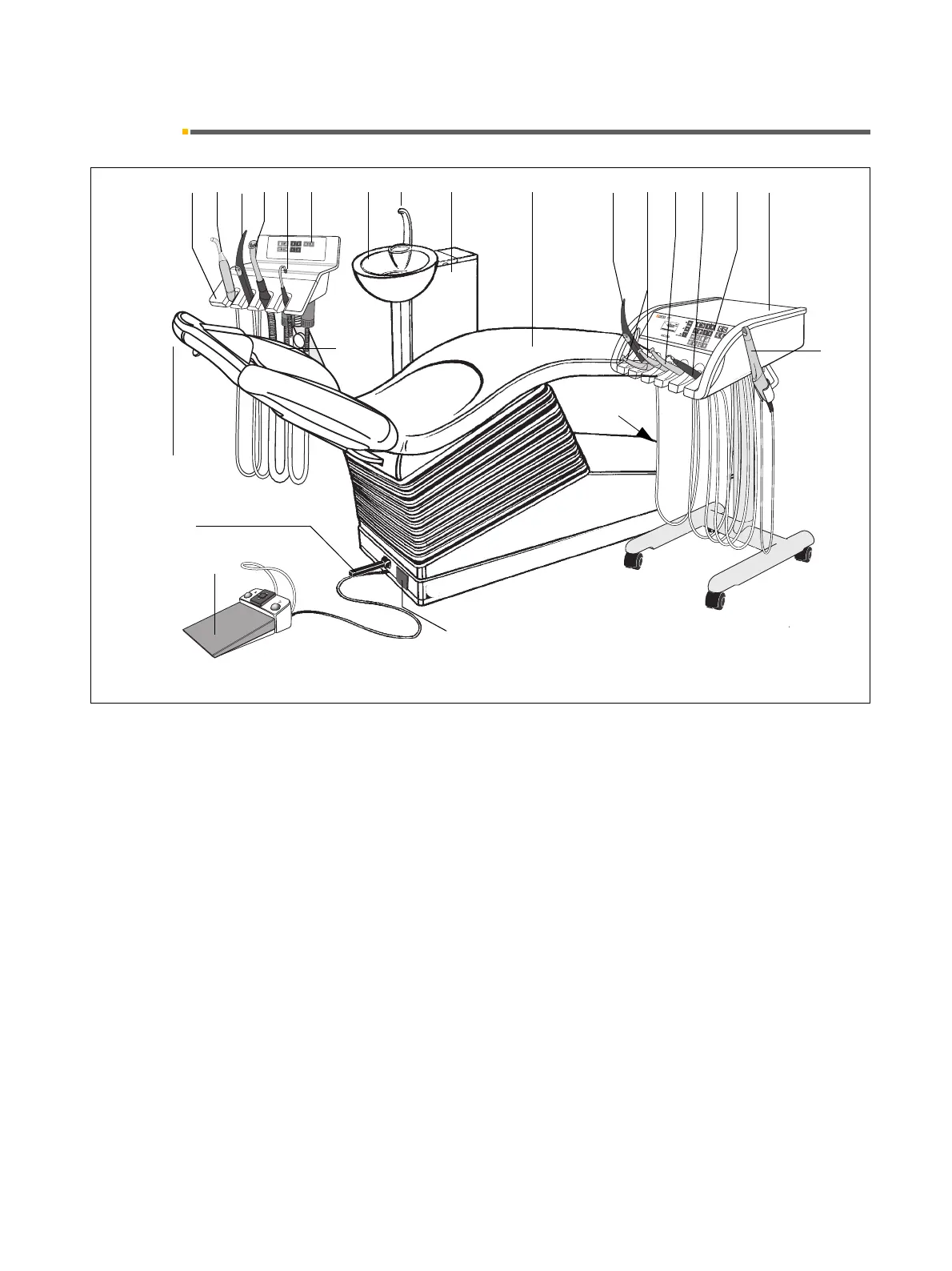

3.2 System overview C4
+
Cart
59 06 313 D 3382
D 3382.201.01.13.02
13
3.2 System overview C4
+
Cart
S
0
123456 87 9 10 11 12 13 14
19
18
20
22
16 17
21
23
15
1
Assistant element
2
Holder 1: Mini L.E.D. polylight or 3rd suction hose or
SIROCAM 3 / SIROCAM C
3
Holder 2: SPRAYVIT in the assistant element or
SIROCAM 3 / SIROCAM C
4
Holder 3: Suction handpiece
5
Holder 4: Saliva ejector
6
Control panel on the assistant element
7
Rigid or swivelable cuspidor
8
Tu mbl e r f i lle r
9
Water unit with amalgam rotor, disinfection system,
automatic separator, wet suction
10
Patient chair, option: folding armrest
11
Holder 1: SPRAYVIT in the dentist element
12
Holder 2 and 3: Electric motor / highspeed hand-
piece burr drives
13
Holder 4: 3rd electric motor / highspeed handpiece
burr drive or SIROSONIC L scaler or Mini L.E.D.
polylight
14
Holder 5: 4th burr drive (only highspeed handpiece)
or SIROSONIC L or Mini L.E.D. polylight or
SIROCAM 3 / SIROCAM C
15
Additional instrument holder (only for SIROCAM 3 /
SIROCAM C)
16
Control panel on the dentist element
17
C4
+
Cart – dentist element
18
Locking brake on the assistant element
19
Unit main switch
20
Flat headrest or manually adjustable headrest or
motorized headrest
21
4-way foot control of chair
22
Unit foot switch C
+
or C
23
Foot button for SIROCAM 3 / SIROCAM Con the
assistant element
