14.8 SIROCAM 3 / SIROCAM C integrated in the assistant element (video)
59 06 313 D 3382
D 3382.201.01.13.02
89
14.8 SIROCAM 3 / SIROCAM C integrated in the assistant element (video)
Operation in video mode
If a PC is connected, PC mode must be switched OFF!
See section 14.10 „Switching between VIDEO mode
and PC mode“
In this version the SIROCAM 3 / SIROCAM C intraoral
camera is installed in holder 1 or 2 of the assistant ele-
ment.
It is operated exclusively with a separate foot button in
the chair base and the camera button.

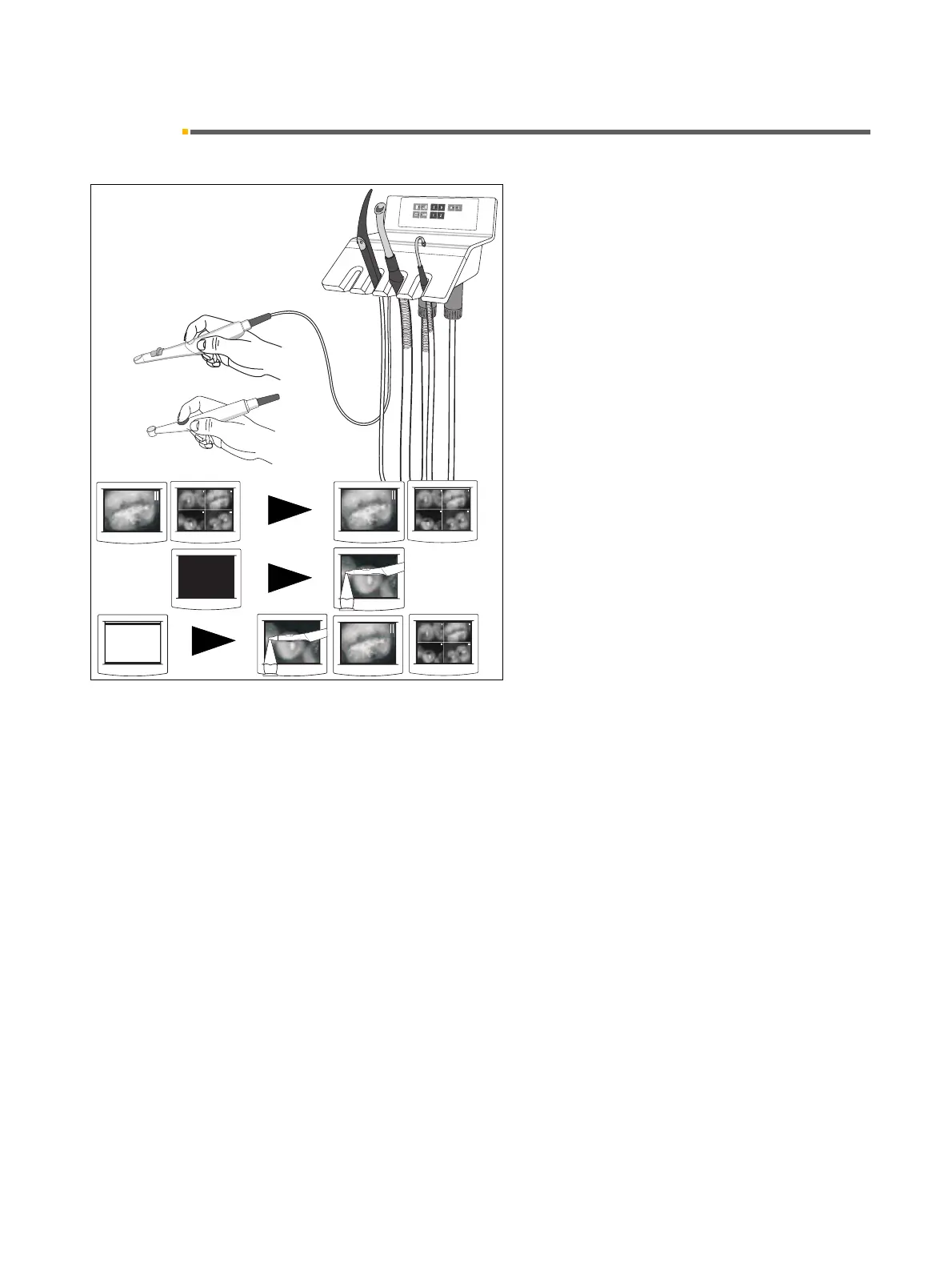

Picking up the camera
•If a STILL IMAGE or QUAD IMAGE was displayed
while the camera was in place, this view is retained.
•If a BLACK SCREEN was displayed while the cam-
era was in place, a LIVE IMAGE appears.
•If a WHITE SCREEN was displayed while the cam-
era was in place, the view preceding the WHITE
SCREEN, i.e. a LIVE, STILL or QUAD IMAGE, re-
appears.
