14.11 SIVISION3 – second monitor function without SIROCAM3/
SIROCAM C
The monitor integrated in the treatment center serves as
primary or secondary monitor for the externally con-
nected PC.

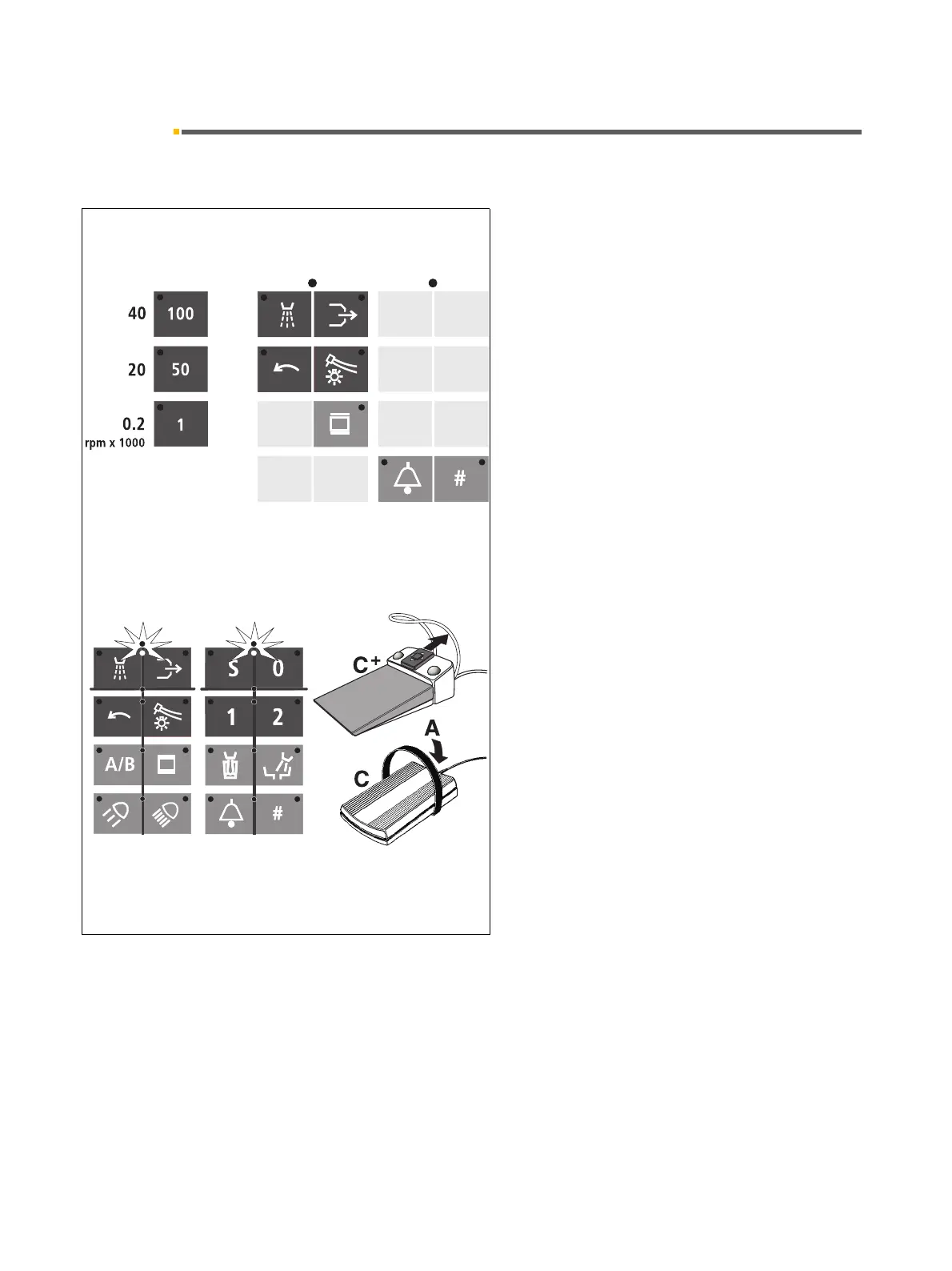

The following function keys of the control panels as well
as foot switch functions are available for controlling PC
functions:
•Spray
• Chip blower
• Electric motor CCW rotation
• Instrument light
• Call key (if not already used for relay functions)
• # key (if not already used for relay functions)
• All quick setting keys: 100, 50 and 1
• Cursor forward, if the cursor is between the
spray and chip blower keys
• Cursor forward, if the cursor is between the S
and 0 chair program keys
(With C
+
foot switch – cursor forward. With C foot
switch – Actuate foot switch in direction A – cursor
upward.)
All instruments must be in place when you do so!
as well as the function keys:
• X-ray image viewer
They can be used to control e.g. SIDEXIS/VIDEXIS
functions such as Tile, Next Image, Full Frame, Zoom
In, Zoom Out, Rotate Image, but also other PC applica-
tions.
The factory settings as well as the configuration proce-
dure are described in the “Installation manual for PC
software“, REF 59 11 719 Operator’s Manual.
