9.9 Surgery with saline solution (NaCl)

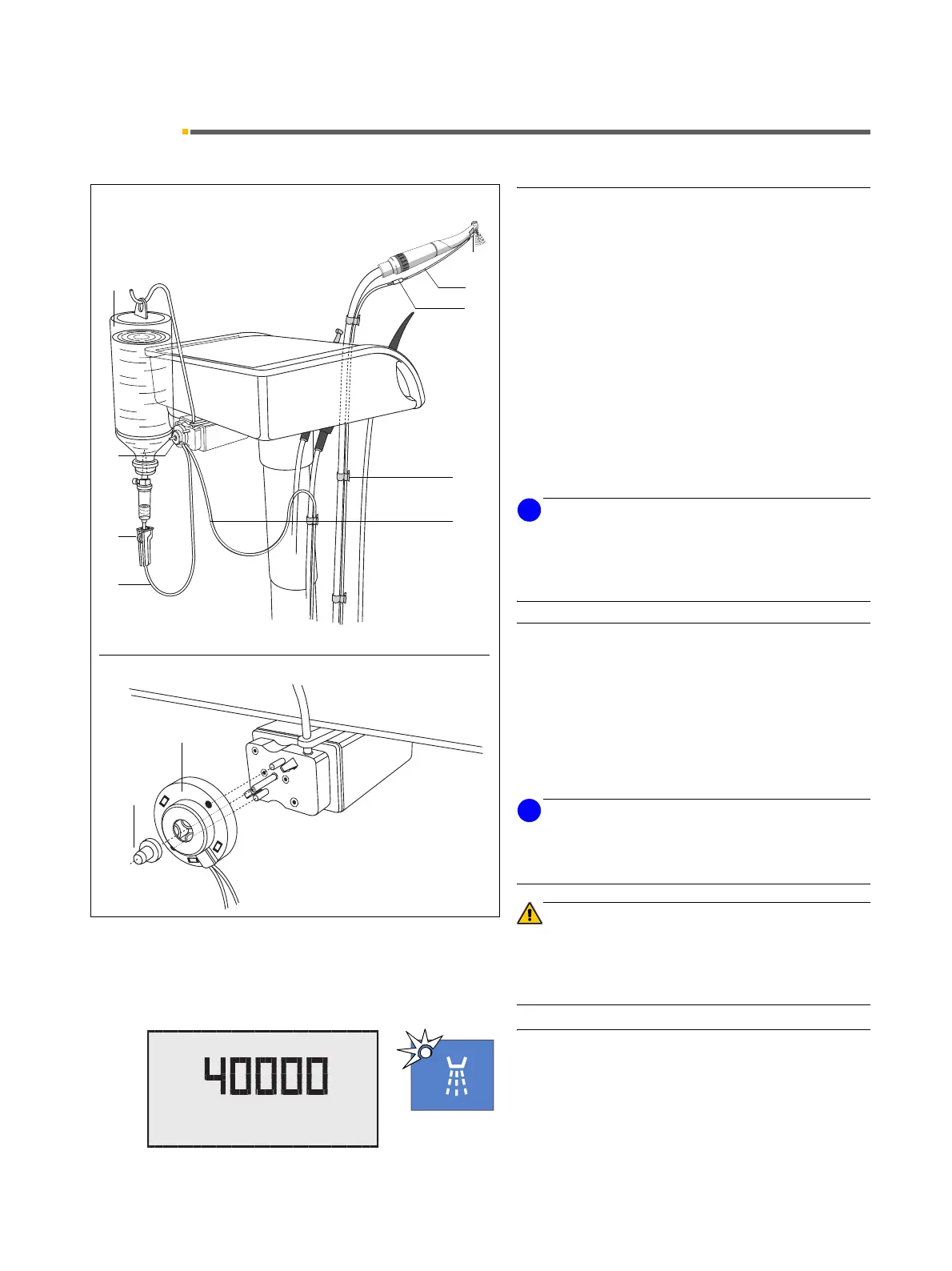

Preparation of the unit
• Hook the NaCl bottle (1) in place.
• Attach the peristaltic pump hose set (2).
• Push the short end of the hose (3) with the cannula
through the stopper and into the NaCl bottle as illus-
trated.
• The regulator in the hose clip (4) must be in the top-
most position (completely open).
• Run the long hose (5) along the corresponding mo-
tor hose up to the contra-angle handpiece and fas-
ten it with the clips (6).
• Fit the coupling (7) onto the hose and connect it with
the thin silicone hose (8).
• Connect the spray clip (9) with the thin hose and at-
tach it to the contra-angle handpiece.
NOTICE
i
The one-way NaCl pump must be secured with a cap af-
ter it is attached to the drive (10). Only then is proper op-
eration of the pump guaranteed. The safety cap is sup-
plied with every one-way pump.
Pump hose set
The peristaltic pump hose set (2) is a disposable arti-
cle and can be purchased in packs of 10 pcs. as con-
sumable material under article number F 58707 directly
from the manufacturer.
NOTICE
i
How to preset a certain instrument holder for saline solu-
tion is described under “Basic treatment center settings
in the Mode dialog” 11.2 on page 57.
CAUTION
The pump flow rate must be at least 70ml/min for rea-
sons of safe cooling and to prevent a pressure rise in the
hose (risk of bursting). This is not always given when us-
ing third-party ultrasonic tips.
Switching the NaCl pump on / off
After picking up the respective handpiece, you can
switch the NaCl pump ON/OFF by pressing the spray
key (or by stepping on the left button on the C
+
foot
switch or by swinging the pedal plate to the left on the C
foot switch).
9
7
8
6
5
1
4
3
2
2
10
Ordering address: Satelec
