13 Water unit
13.1 Swivelable cuspidor (alternative equipment))

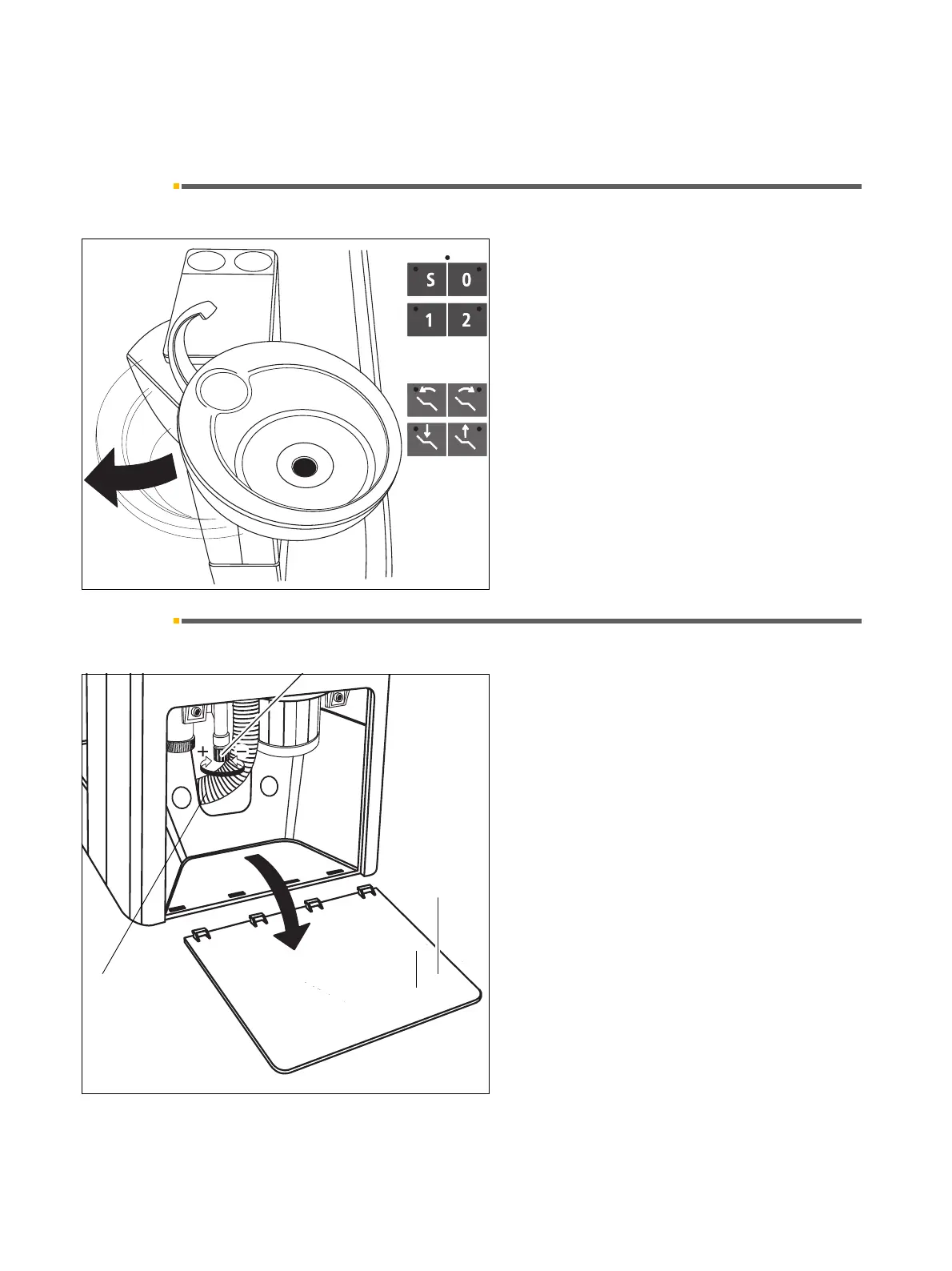

The cuspidor on the water unit can be swiveled manually
by approx. 110mm towards the patient chair.
Collision protection
Certain chair movements are locked as long as the cus-
pidor is swiveled in. When you start a programmed
movement S, 0, 1 or 2, the cuspidor first moves back to
its starting position before the chair moves to the pro-
grammed position.
When you press a key for the individual adjustment of
the chair, i.e. height adjustment up/down or backrest
tilt backward/forward, the cuspidor also swivels back
first, and if the corresponding key is still pressed, the
chair moves.
You can make individual adjustments of the motorized
headrest even when the cuspidor is swiveled in.
If the cuspidor is swiveled in while the chair is moving,
the program is aborted. This is signaled by a double
beep.
13.2 Adjusting the water amount for the cuspidor
• Open the flap (1) on the base of the water unit.
• Adjust the amount of water with the valve (2).
1
2
1
