9 Dentist element and instrument functions Sirona Dental Systems GmbH
9.10 Satelec Mini L.E.D. curing light Operating Instructions C4
+
59 06 313 D 3382
48 D 3382.201.01.13.02

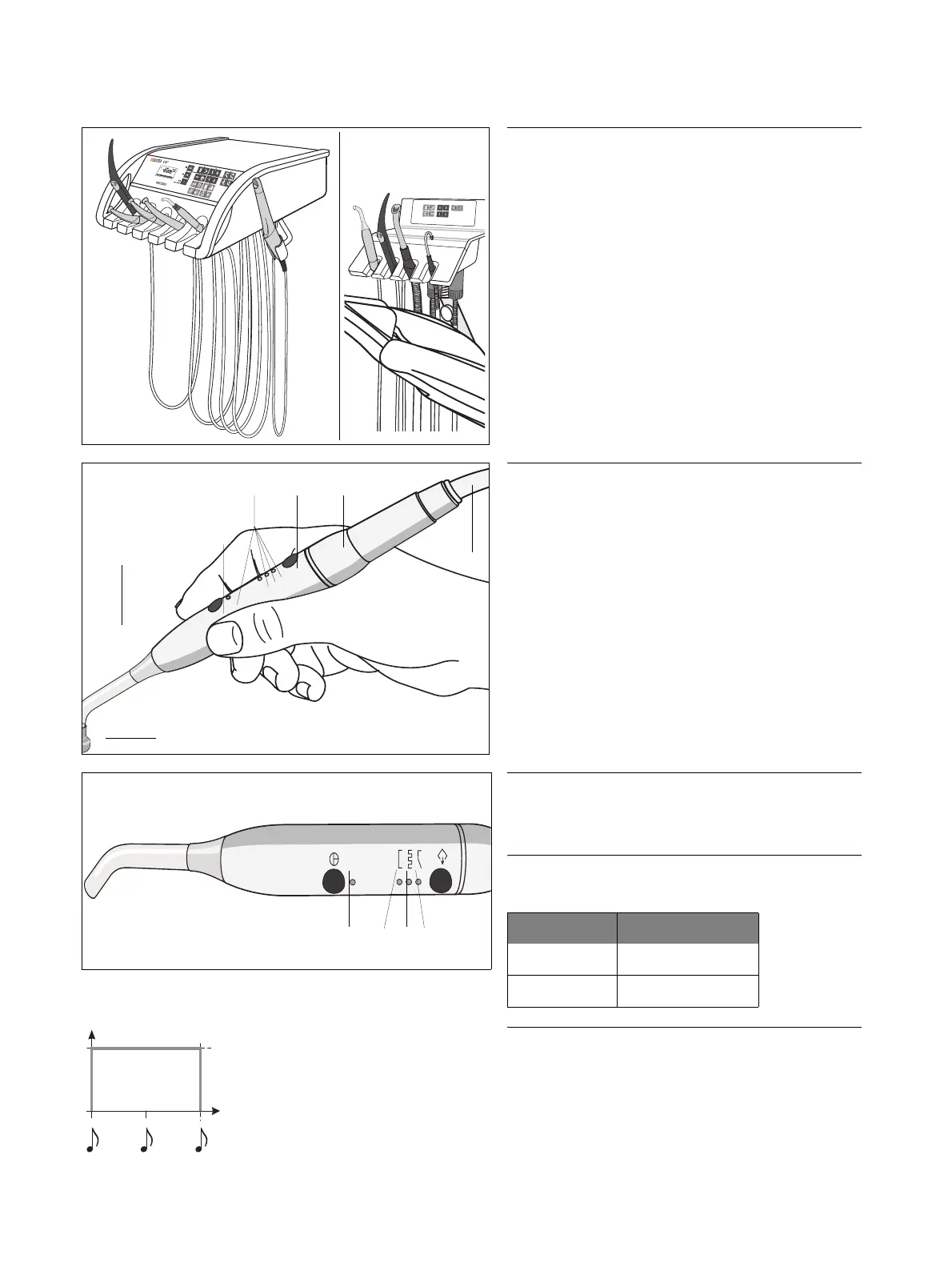

Installation options
• in the dentist element, holder 4 or 5
• in the assistant element, holder 1
Handpiece and accessories
1 Handpiece
2 Light guide
3 Supply cable
4 Status LEDs
5 Glare shield
6 ON/OFF switch
7 Function button
Operating modes
The Mini L.E.D. has three different modes. To select the
desired menu, press the function button.
4.1 Status LED
The status LED signals the following states:
4.2 Quick curing mode
In this mode the Mini L.E.D. operates at full power for 10
seconds.
LED 4.2 shows your selection.
In this mode, the light intensity output is approximately
as follows:
1
3
5
2
4
6
7
4.1
4.2
4.3
4.4
Color Mode
green Normal operation
red, flashing Overheat protection
0 510
Sec.
