Connection to operating element
Depending on the version of the linear actuator the Matrix MAX6 is
controlled via an electric (2) or pneumatic (4) († fig. 11) operating
element († Chapter “Operating Elements”).
Connection to power line
The device is directly connected to the power supply via connection
(3) († fig. 11).
4.7 Operating elements
Matrix MAX1 and MAX3
!
Note!
The device does not feature its own operating elements.
The operation takes place via a SKF operating element at an
external SKF control († Separate operating manual).
Matrix MAX6
!
Note!
The device does not feature its own operating elements.
The operation takes place via an electric or pneumatic SKF
operating element which is connected directly to the device
(† Separate operating manual).
1
2
3
4

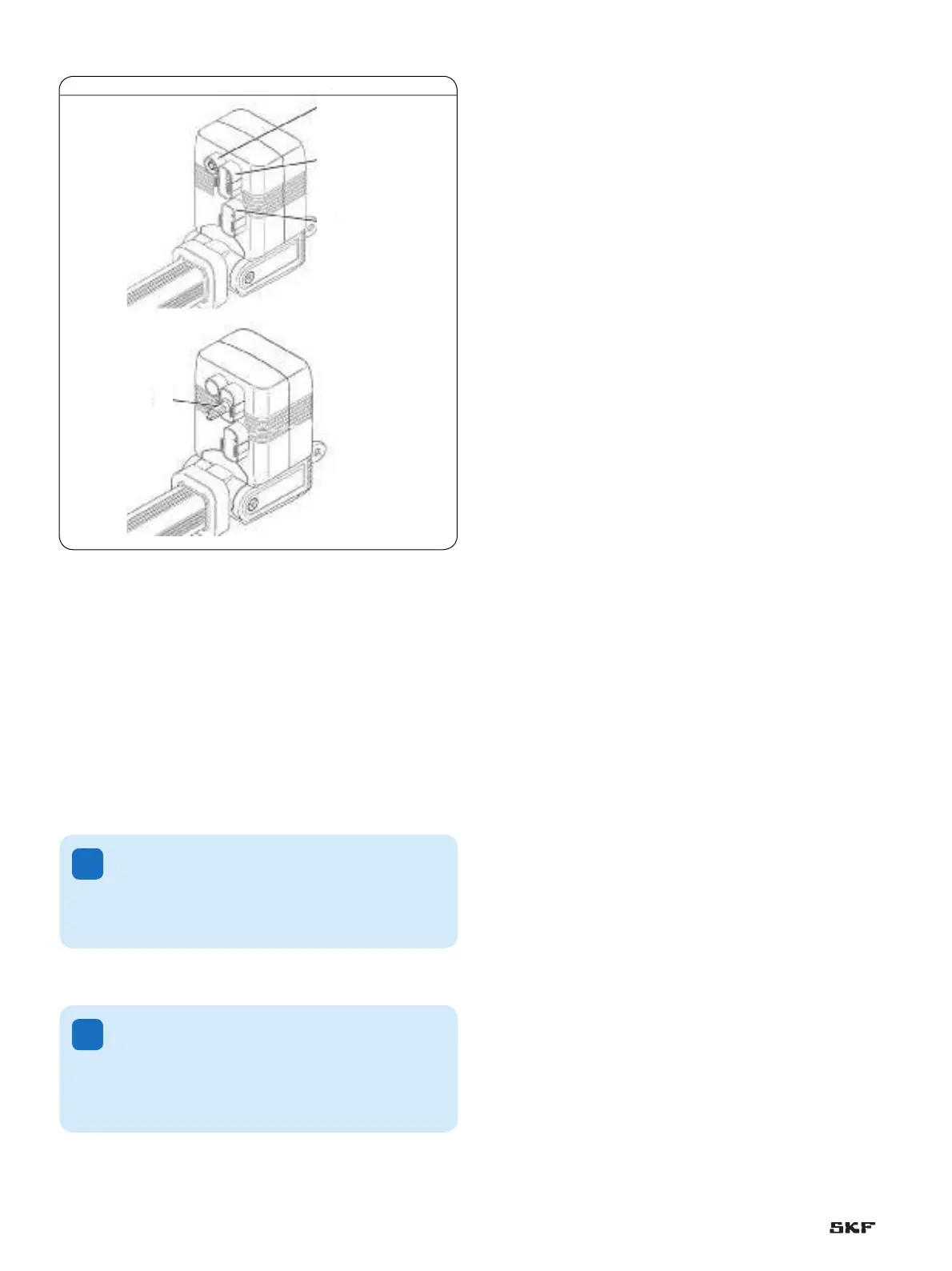

Fig. 11
Matrix MAX6
1 Connection slave actuator for jack plug
(optional)*
2 Connection to operation device (electric)
3 Connection power line
4 Connection to operation element (pneumatic)
*
†
Chapter “Master-Slave Actuator Function”
