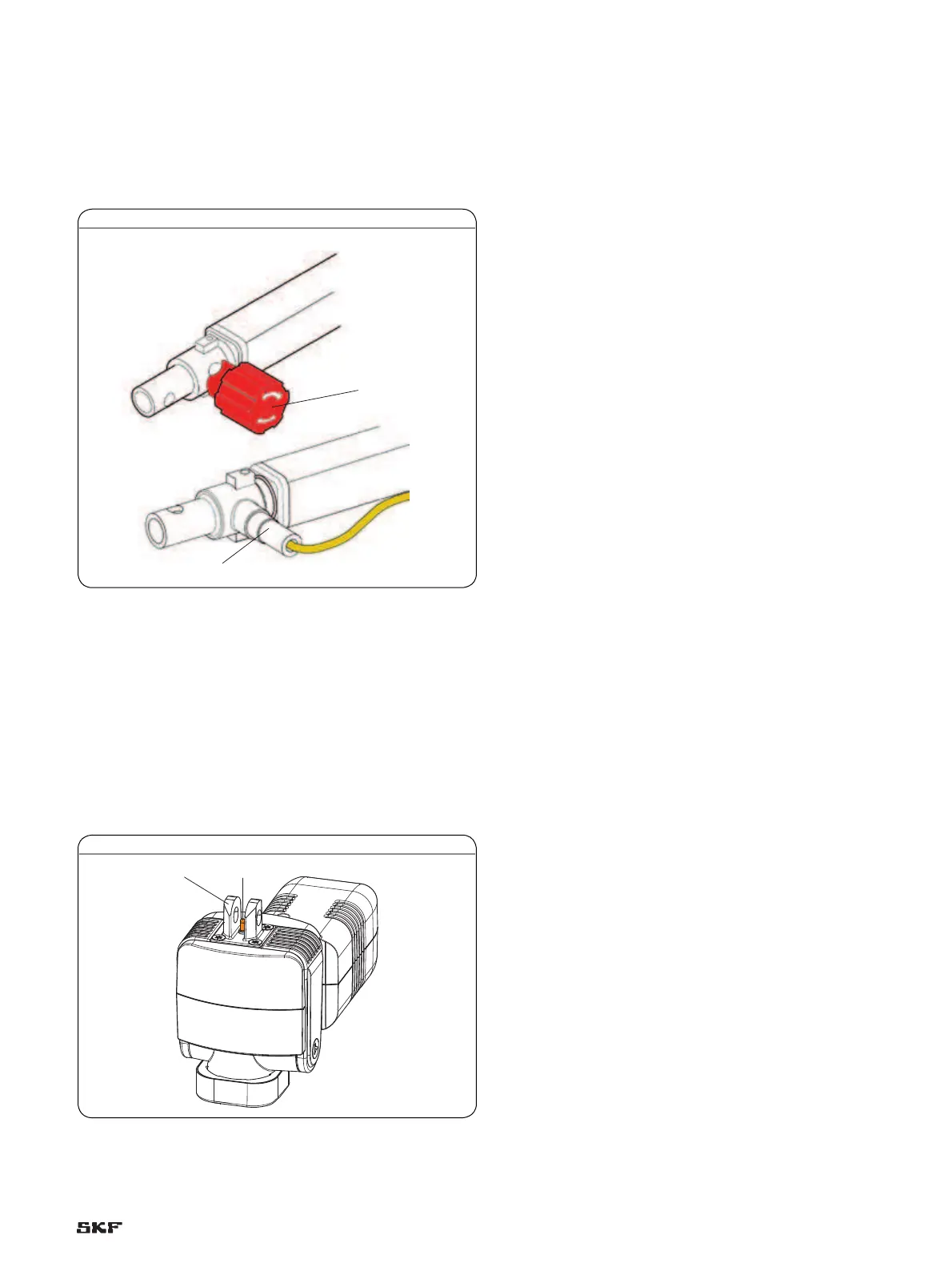

6.7.2 Quick adjustment

N o te the following during the construction of the application

kinematics:

• In the application there must be enough room in the area of the

knob (1) or the Bowden cable (2), so that the two elements can be

operated easily.

Fig. 37

• The Bowden cable between the linear actuator and the operating

element has to be installed so that it is not pinched or affected by

the movements of the linear actuator.

6.7.3 Electrical pinch protection

Note the following during the installation of the linear actuator

with electric pinch protection.

• The gear pin (2) at the hinge head (1) may not be jammed.

• Use fastening bolts with ∅12 h7 for the mounting of the hinge

head.

Fig. 38
