6.3 Installation
• Execution by qualified personnel
The Matrix linear actuator is attached to two elements via the fork
head and the hinge head.
1 Secure elements of the application in between which the linear
actuator will be inserted.
2 Insert storage inserts (1) at the fork head (2) and the hinge head,
if necessary.

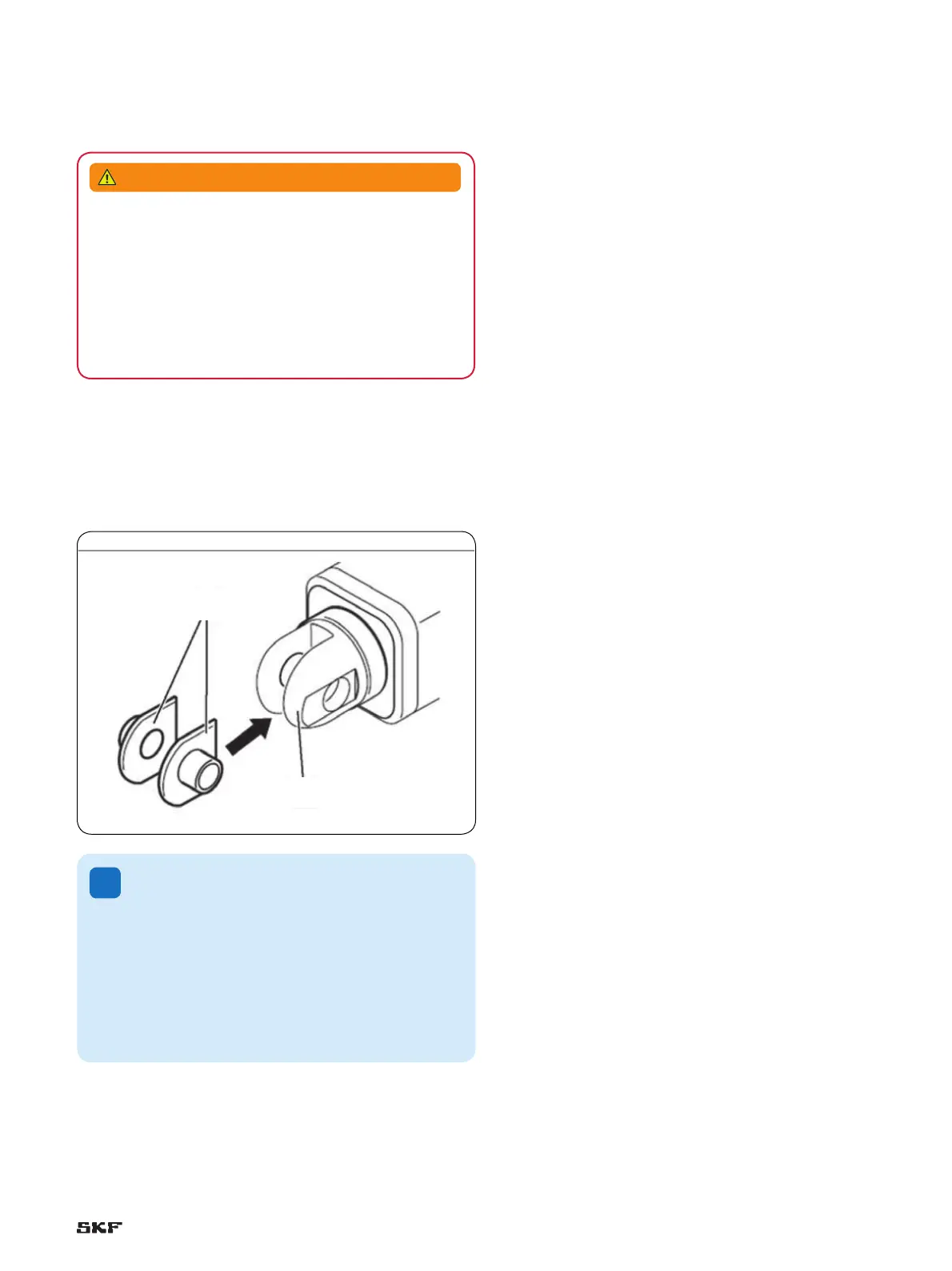

Fig. 16
!
Note!
The storage inserts that are part of the delivery can be
installed in the following cases:
• For a bolt diameter of 10 mm
• To reduce electro-magnetic charging
• As an electric insulation
• As an optimization of the storage place, so that metal doesn’t
rub on metal
Risk of injury and material damage due to manipulation of
the screws on the device
Manipulation or loosening of the screws on the device or on the
options may lead to injuries and material damage during the
operation.
Therefore:
• Never loosen screws on the device or the options.
