6.7 Requirements concerning the
installation of the actuators with
options

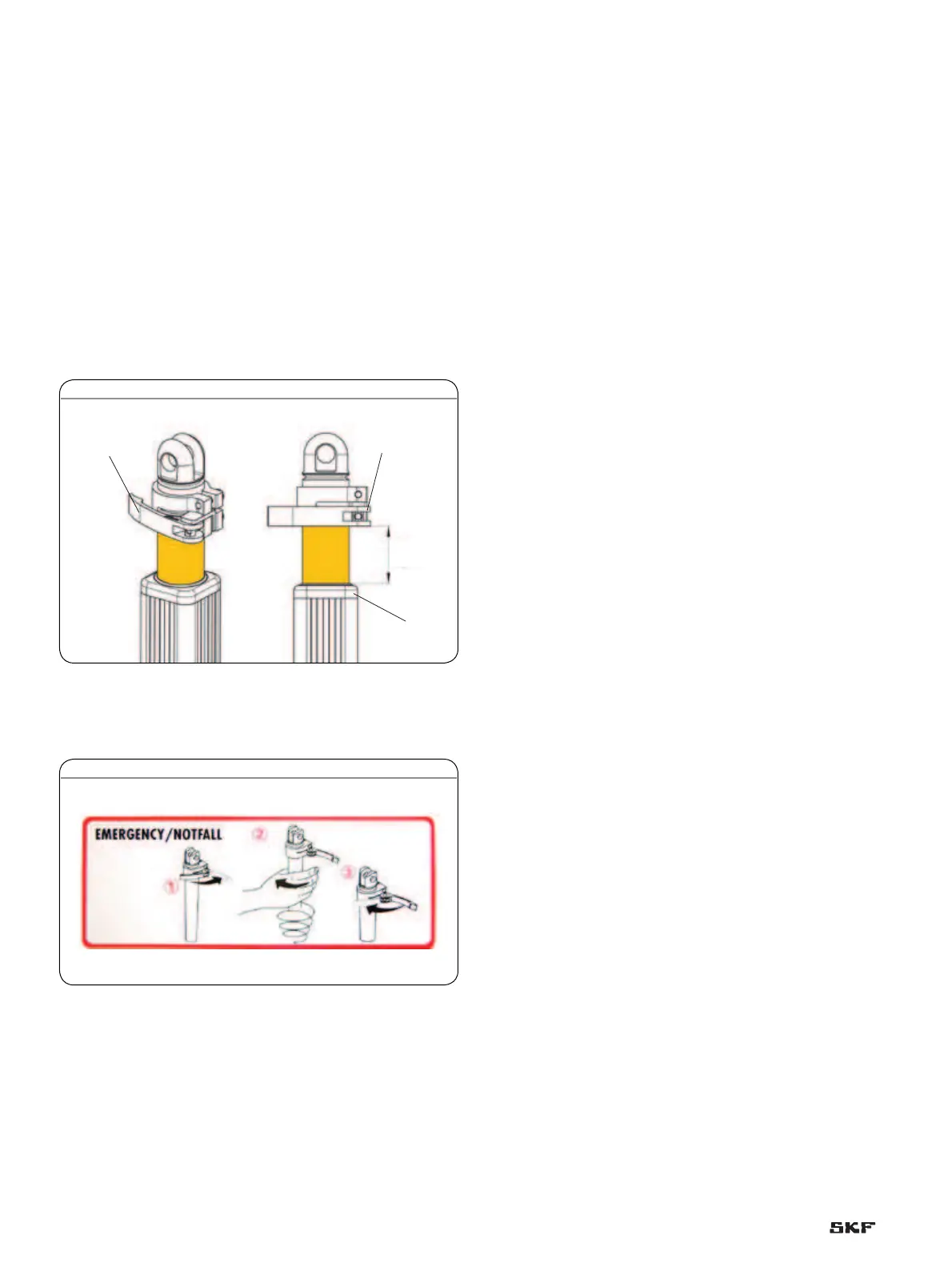

6.7.1 Emergency lowering device
Note the following during the construction of the application
kinematics:
• When the linear actuator is retracted, a distance of at least
25 mm must remain between the mechanism of the emergency
lowering device (1) and the casing tube (2).
• There must be sufficient room in the area of the emergency
lowering device in the application, so that the release handle (3)
can be operated easily.
3
1
25 mm
2
Fig. 35
• The operating label for the emergency lowering device “Emer-
gency/ Notfall” (parts no. 0112420) must be easily visible and
permanently affixed on the actuator or the application.
Fig. 36
