SKF Matrix Series User Manual

3 Technical data
The product label provides the following
Information
1 Identification of type
2 Power frequency
3 Power consumption
4 Serial number
5 Power-on/of time (duty cycle)
6 Inspection mark UL
7 IP safety type
8 Speed of linear actuator
9 Manufacturing date (month/year)
10 Extension (stroke)
11 Force
12 Read this user manual
13 Energy (Main supply voltage)
14 Class II equipment
15 CE-mark (CE-Conformity)
16 Manufacturer’s address
17 Waste symbol
3.1 Operating conditions
Environment
Information Value Unit
Temperature range 0 to +40 °C
Relative atmospheric humidity,
(no build up of condensation)
5 to 85 %
Duration (intermittent)
Information Value Unit
Maximum operating time without a break 1 Minutes
Break until next operation 9 Minutes

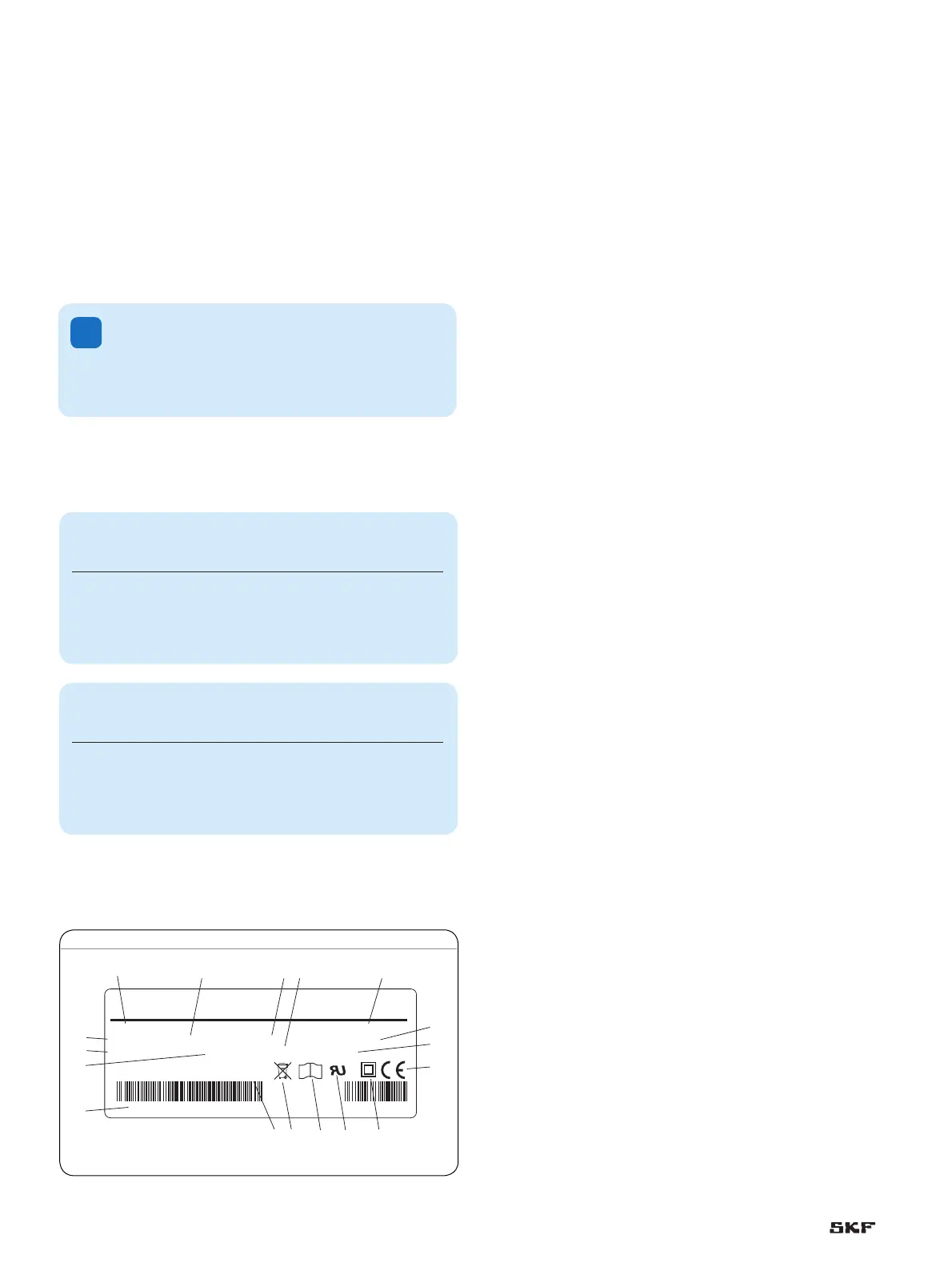

3.2 Product label
SKF Actuation System
MAX64-C500715A01M0-500 №L09999999
230 V~
max. 3 000 Npush
SKF Actuation System (Liestal) AG, CH-4410 Liestal SWISS MADE
BJ:03.16MAX64-500-0011
15 mm/s500 mm IP66S
50/60 Hz 1,2 A Int. 1 min/9 min
1
2 3 8 4
5
7
15
612
9 1417
10
16
11
13
i
C US
Fig. 4
!
Note!
The technical data (dimensions, weight, output, connec-
tion values etc.) can be found in the enclosed drawings and data
sheets († Appendix).
24
