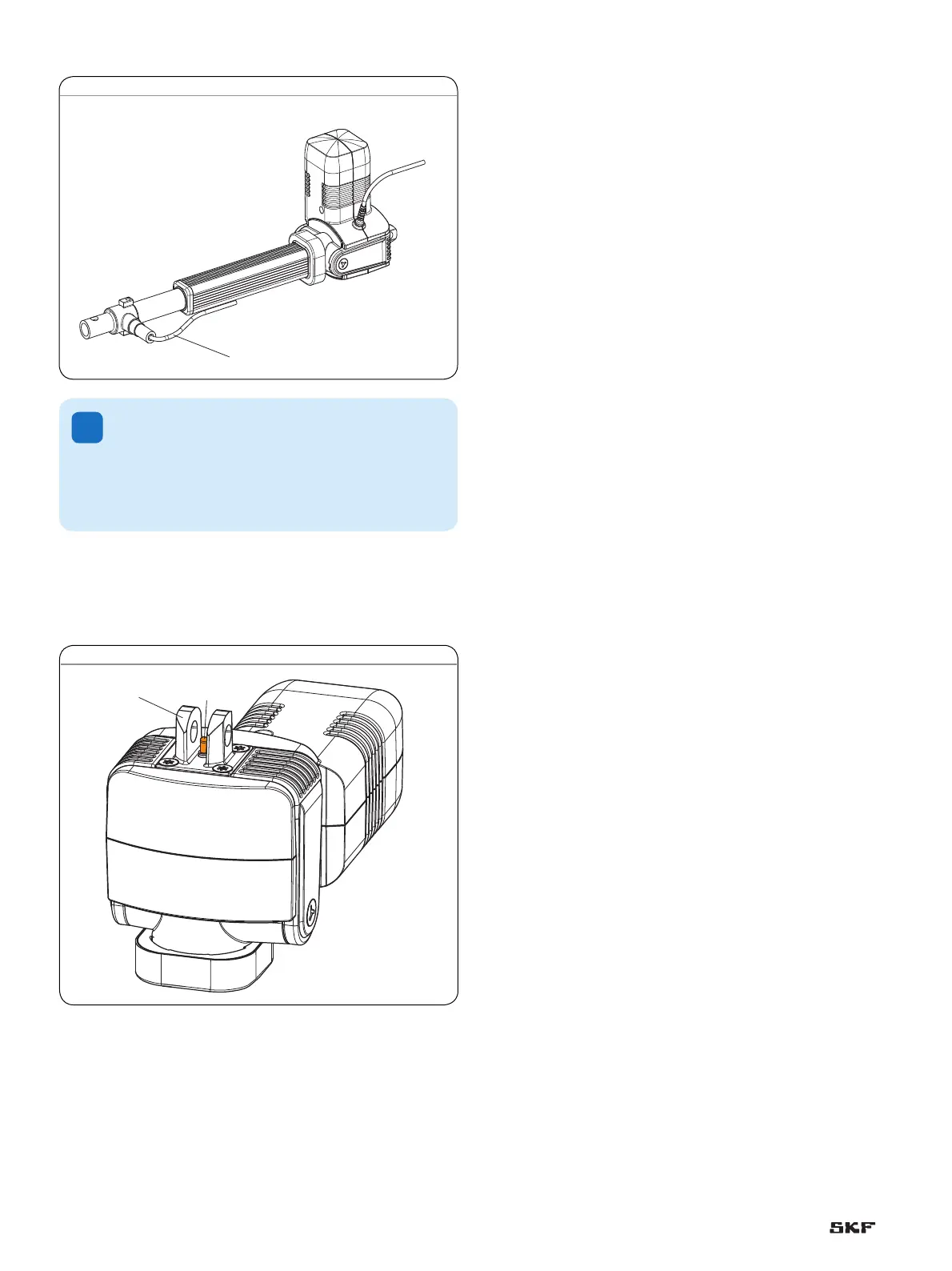

Fig. 15
The electrical pinch protection consists of a hinge head with an elon-
gated hole (1), an integrated control pin (2) and a micro switch,
which turns off the device when it moves against the effective direc-
tion. In the event of a jam, the pin is lifted from the fastening bold
and triggers the activation of the turn-off function.
!
Note!
It is recommended that this option is not used in
connection with an impulse transmitter. Additional information
in conjunction with the quick adjustment feature († Chapter
“Operation”).
Electrical pinch protection
Quick adjustment via Bowden cable (2)
