10.1 Dismantling
• Special tools required:
• Special tool from the manufacturer (part no. 0125322)
10.1.1 Dismantling of MAX1 and MAX3
1 Separate device from energy supply († Chapter “Operation”
†“Shut down MAX1 and MAX3“).
2
Secure elements of the application in such a fashion, that no loads
can impact the fork and the hinge head.
3 Loosen and remove fastening bolts from the mounting strap of
the fork and the hinge head.
4 Separate linear actuator from application elements.
5 Clean device.
6 Carefully package for shipment to the manufacturer. For disposal,
disassemble device according to applicable local occupational
health and environmental regulations.
10.1.2 Dismantling of MAX6
1 Separate device from energy supply († Chapter “Operation”
†“Shut down MAX6“).
Separate device from operating element:

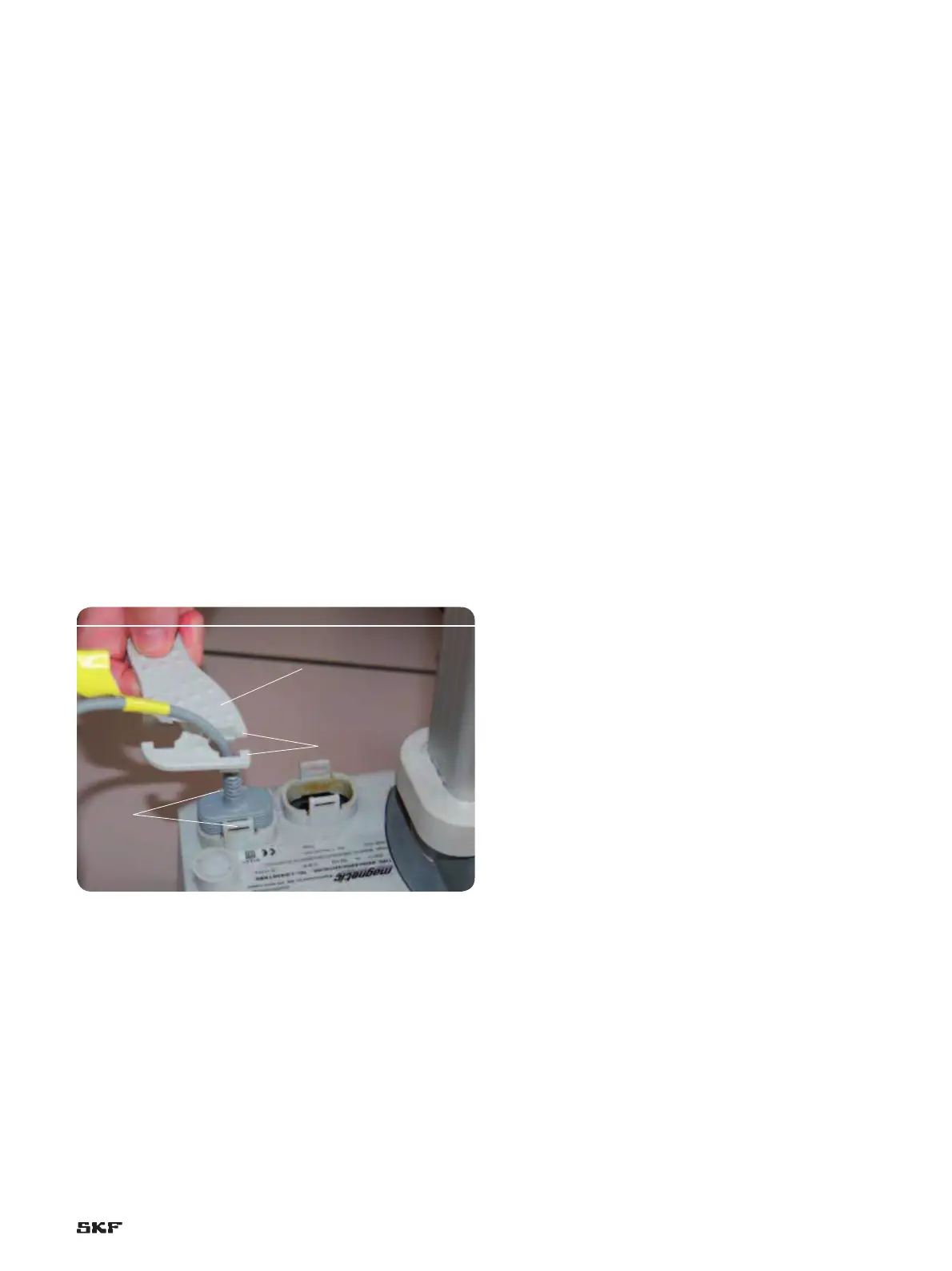

2 Place special tool (1) onto the plug of the operating element,
so that the form-fitted edges (2) snap into the grooves (3).
2
3
1
Fig. 61
83
