Sever connection to the slave actuator, if it exists:

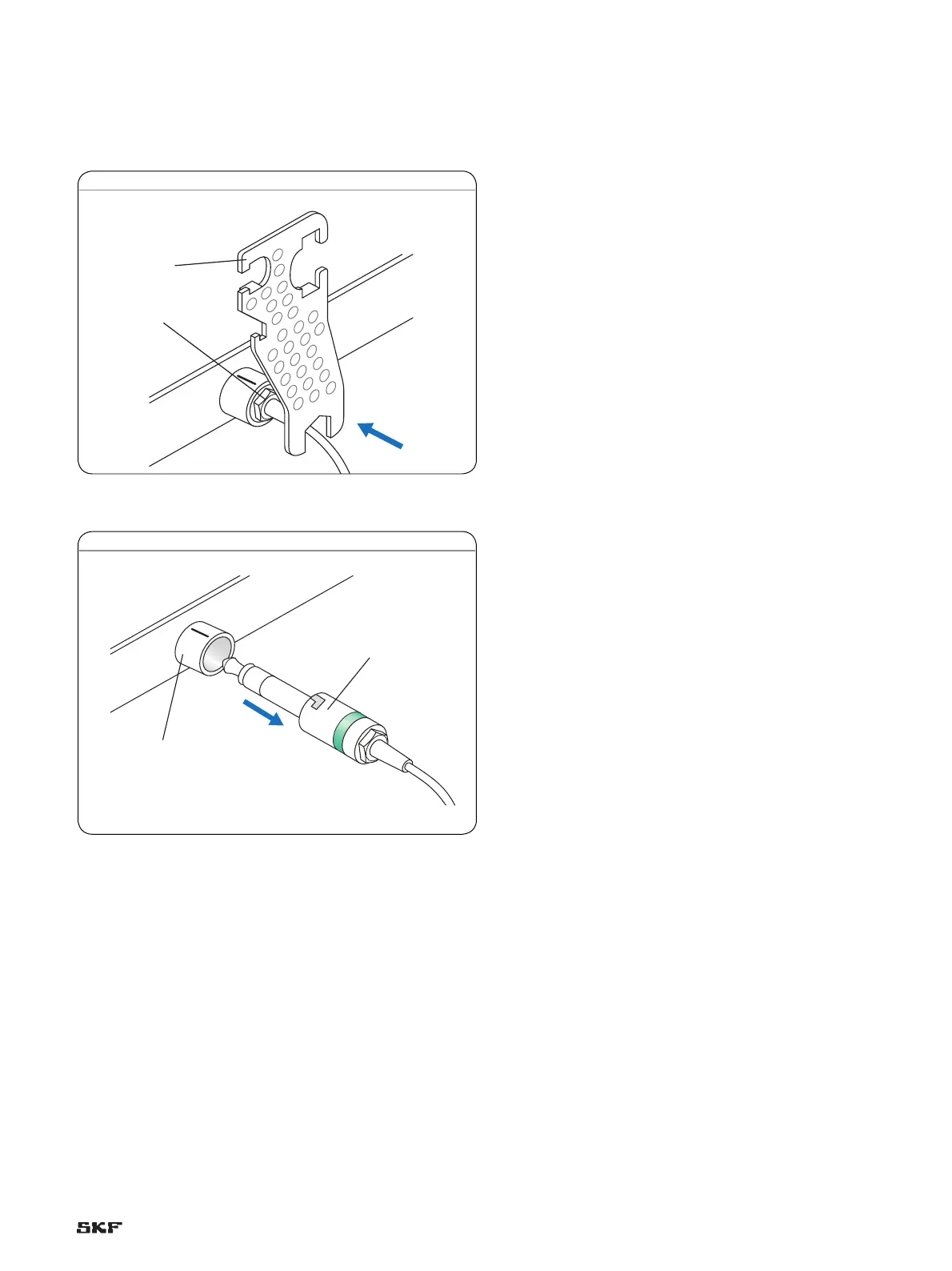

6 Place special tool (1) onto the nut (2) of the jack plug.
7 Turn special tool (1) counter-clockwise until the bayonet joint
of the jack plug is unlocked.
1
2
Fig. 65
8 Pull jack plug (1) out of the connection outlet (2) of the actuator.
2
1
Fig. 66
9 Secure elements of the application in such a fashion, that no
loads can impact the fork and the hinge head.
10 Loosen and remove fastening bolts from the mounting strap
of the fork and the hinge head.
11 Separate linear actuator from application elements.
12 Clean actuator.
13 Careful packaging for shipment to the manufacturer. For
disposal, disassemble device according to applicable local
occupational health and environmental regulations.
