6.4.3 MKU/MKF/MKL gear pump units with 3-liter metal reservoir for oil and fluid grease

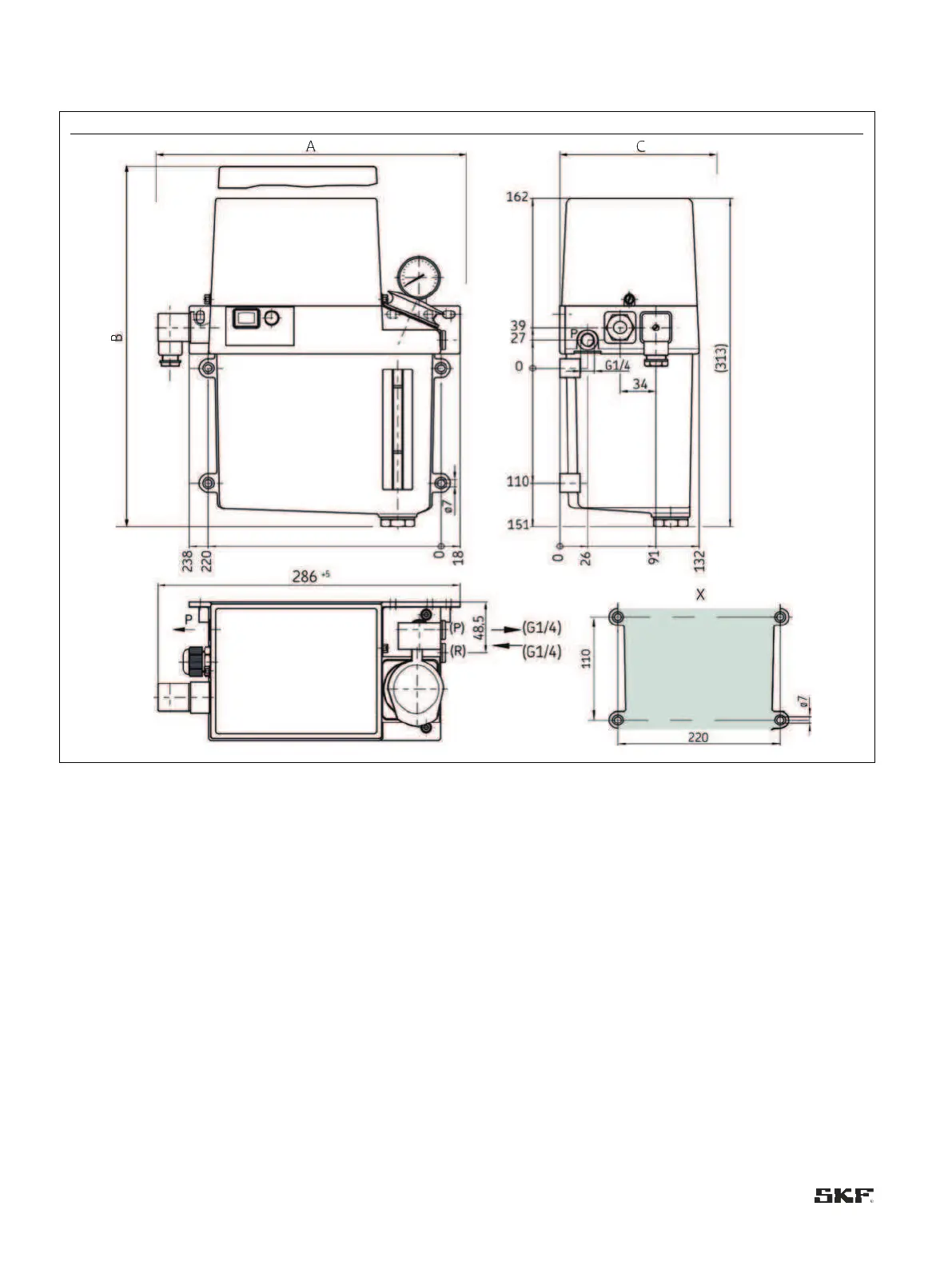

Fig. 22
Gear pump unit with 3-liter metal reservoir for oil and fluid grease
Legend to Figure 22:
A Width
B Height (clearance for lid removal)
C Depth
X Assembly holes
Minimum mounting dimensions:
A 390 mm
B 400 mm
C 140 mm
Recommended fastening hardware:
Hexagon head bolts (2x) acc. to ISO 4017-M6x25-8.8
Hexagon nuts (2x) acc. to ISO 4032-M6-8
Washers (4x) acc. to ISO 7090- 6-200-HV
Tightening torque: 10 Nm
