SKF MKU Series Assembly Instructions

27
6.4.2 MKU/MKF/MKL gear pump units with 3-liter plastic reservoir for oil and fluid grease

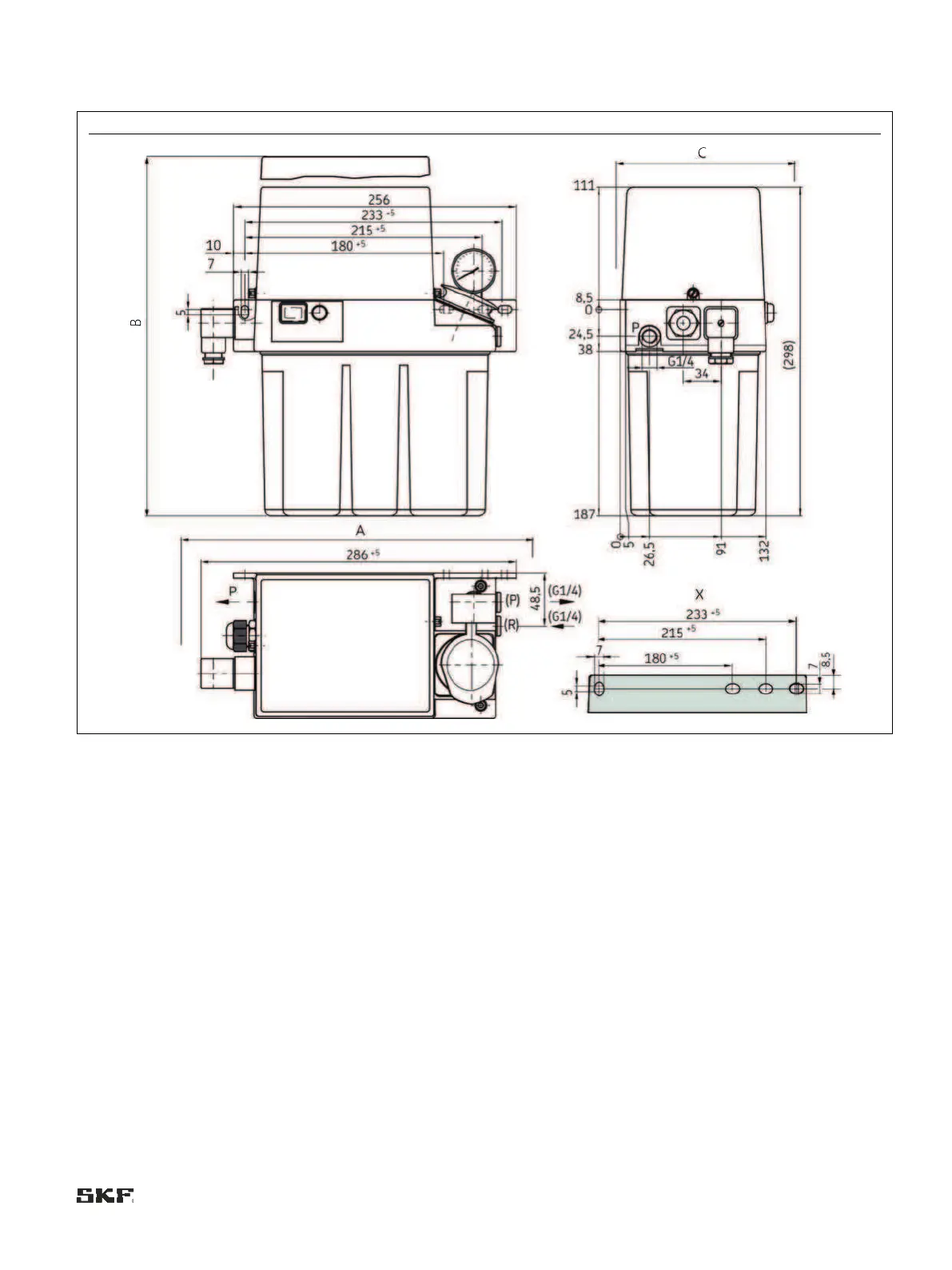

Fig. 21
Gear pump unit with 3-liter plastic reservoir for oil and fluid grease
Legend to Figure 21:
A Width
B Height (clearance for lid removal)
C Depth
X Assembly holes
Minimum mounting dimensions:
A 390 mm
B 400 mm
C 140 mm
Recommended fastening hardware:
• Hexagon head bolts acc. to ISO 4017-M6x25-8.8
• Washers (4x) acc. to ISO 7090-6-200-HV
• Hexagon nuts (2x) acc. to ISO 4032-M6-8
Tightening torque: 10 Nm
