21
6.2.2 Dimensions

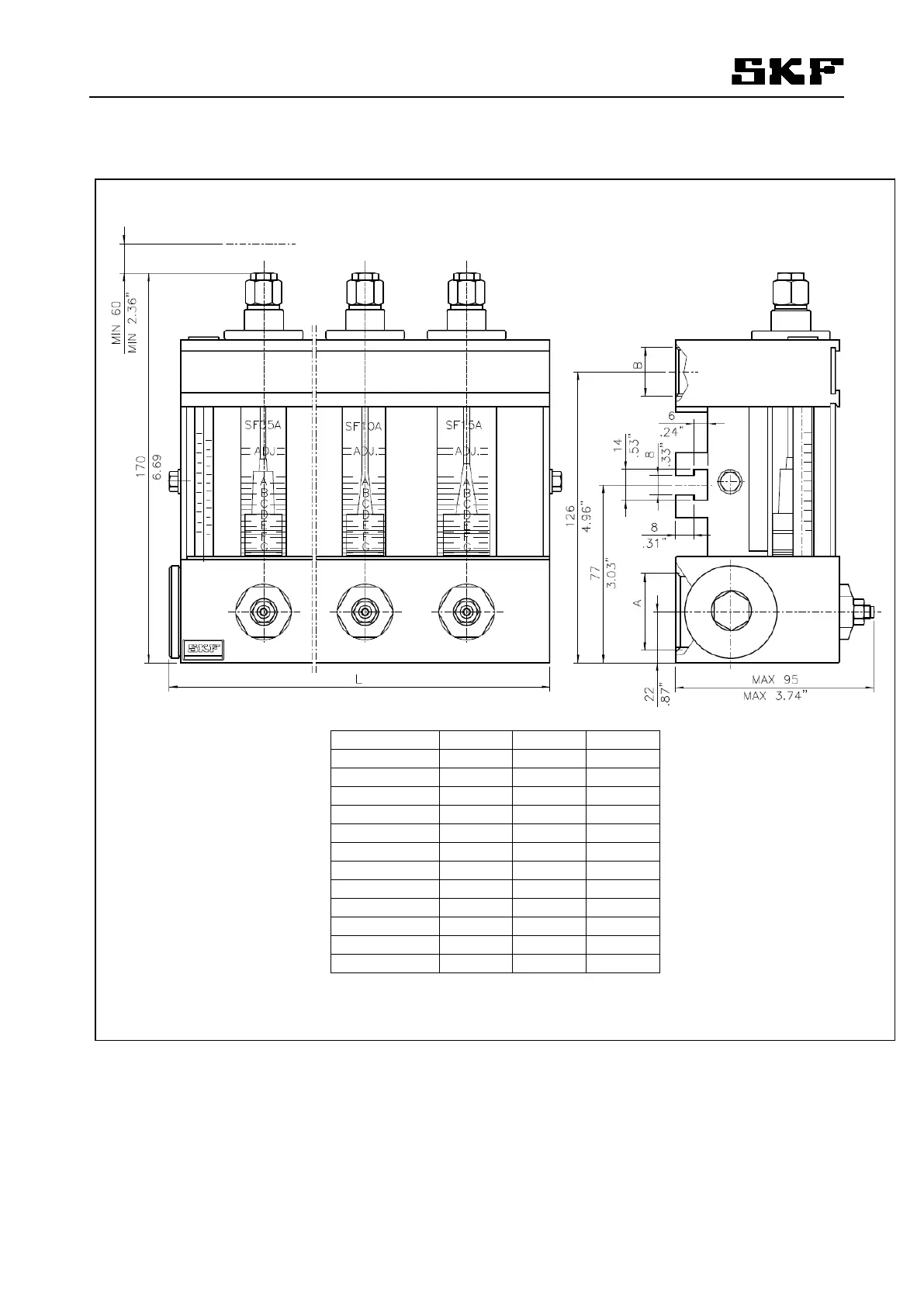

Fig.1. Dimension
al drawi
ng SF05A,
SF10A,
SF15A, w
ithout
alarm
Type
L
A
B
SF**A-01-RX
79 mm
G 1/2
G 1/2
SF**A-02-RX
123 mm
G1
G 1/2
SF**A-04-RX
211 mm
G1
G 1/2
SF**A-06-RX
299 mm
G1
G 1/2
SF**A-08-RX
387 mm
G1
G 1/2
SF**A-10-RX
475 mm
G1
G 1/2
SF**A-01-UX
3.11”
NPT 1/2
NPT 1/2
SF**A-02-UX
4.84”
NPT 1
NPT 1/2
SF**A-04-UX
8.31”
NPT 1
NPT 1/2
SF**A-06-UX
11.77”
NPT 1
NPT 1/2
SF**A-08-UX
15.24”
NPT 1
NPT 1/2
SF**A-10-UX
18.70”
NPT 1
NPT 1/2
20
