6.2.3 Accessories
Inductive flow monitoring with alarm for each meter, and connection to external monitoring system.
6.2.4 Specifying the flow
Calibration is based on the required flow, the viscosity of the oil and the operating temperature.
6.2.5 Adjustment curves
Table 2. Adjustment curves
Flowmeter type Drawing number
6.2.6 Drawing the oil line to the chart
The oil ISO VG class allows ±10% variation in viscosity. For example, ISO VG 220 class oil can have a mini-
mum of 198 cSt and a maximum of 242 cSt at a temperature of +40°C, but it is still of class ISO VG 220.

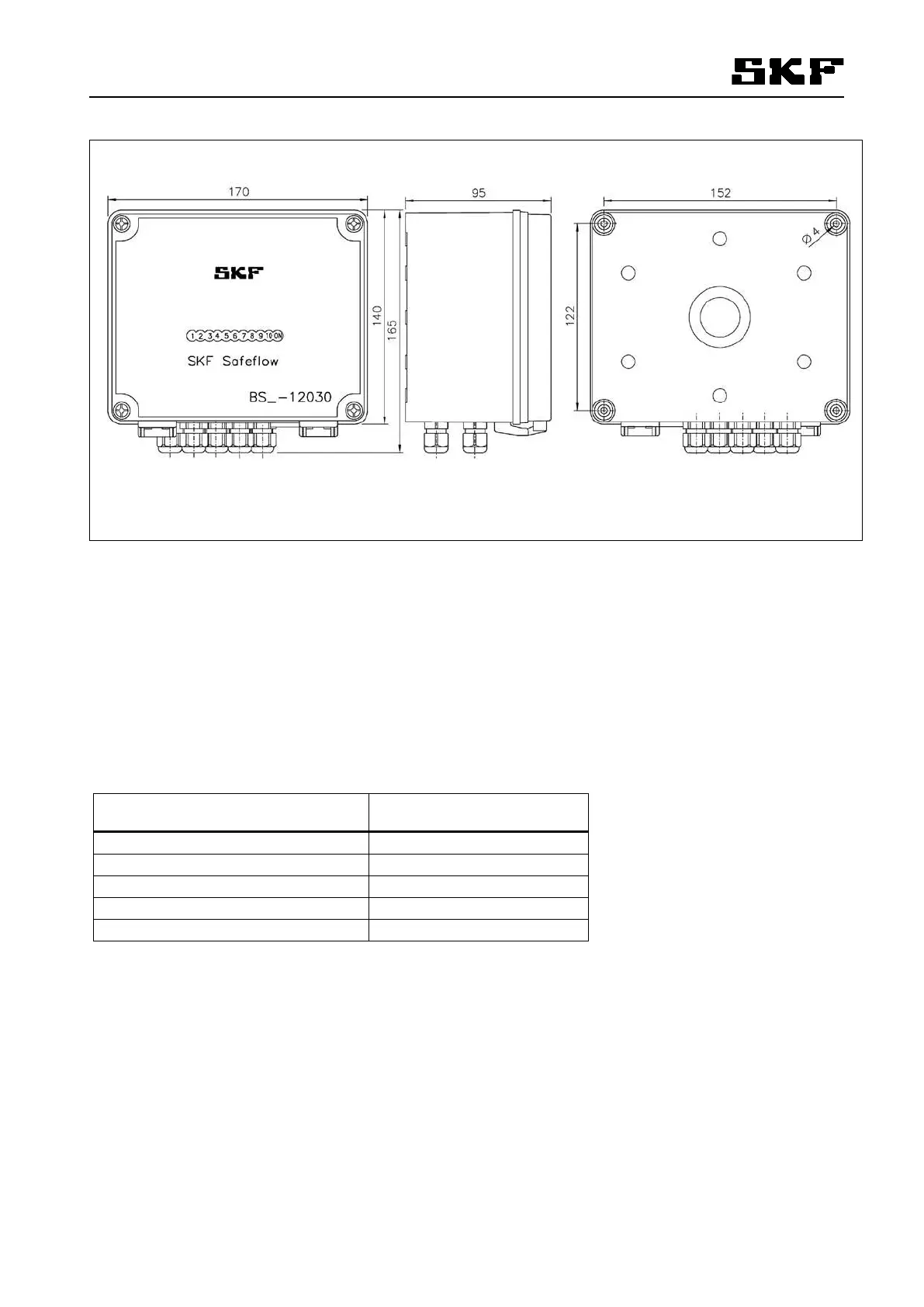

Figure 5. Dimensional drawing BS*-12030
