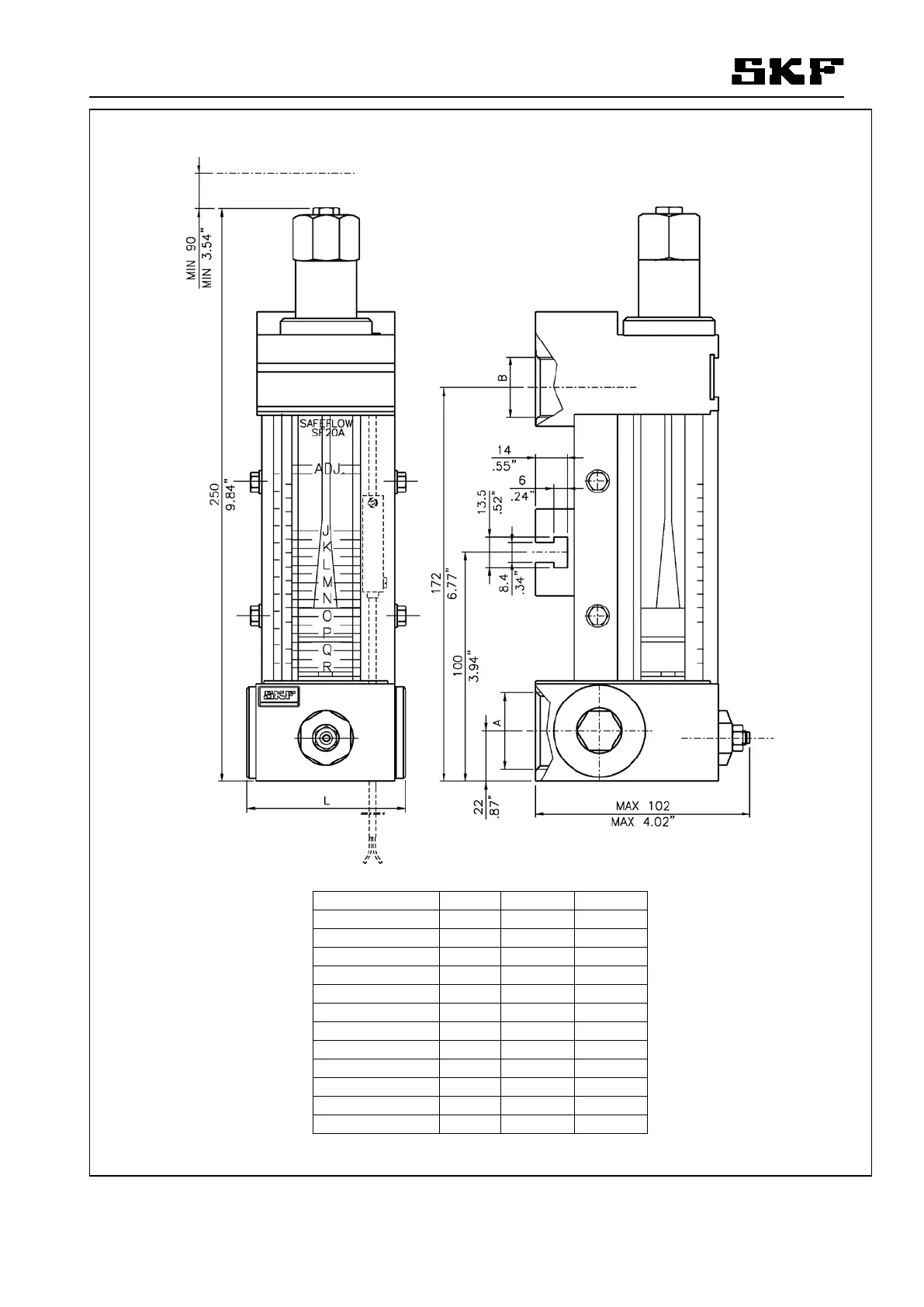

Figure 3. Dimensional drawing SF20A-
Type
L
A
B
SF20A-01-R*-**
74
G3/4
G3/4
SF20A-02-R*-**
124
G1
G3/4
SF20A-03-R*-**
174
G1
G3/4
SF20A-04-R*-**
224
G1
G3/4
SF20A-05-R*-**
274
G1
G3/4
SF20A-06-R*-**
324
G1
G3/4
SF20A-01-U*-**
3.07”
NPT 3/4
NPT 3/4
SF20A-02-U*-**
5.67”
NPT 1
NPT 3/4
SF20A-03-U*-**
7.64”
NPT 1
NPT 3/4
SF20A-04-U*-**
9.61”
NPT 1
NPT 3/4
SF20A-05-U*-**
11.57”
NPT 1
NPT 3/4
SF20A-06-U*-**
13.54”
NPT 1
NPT 3/4
