48

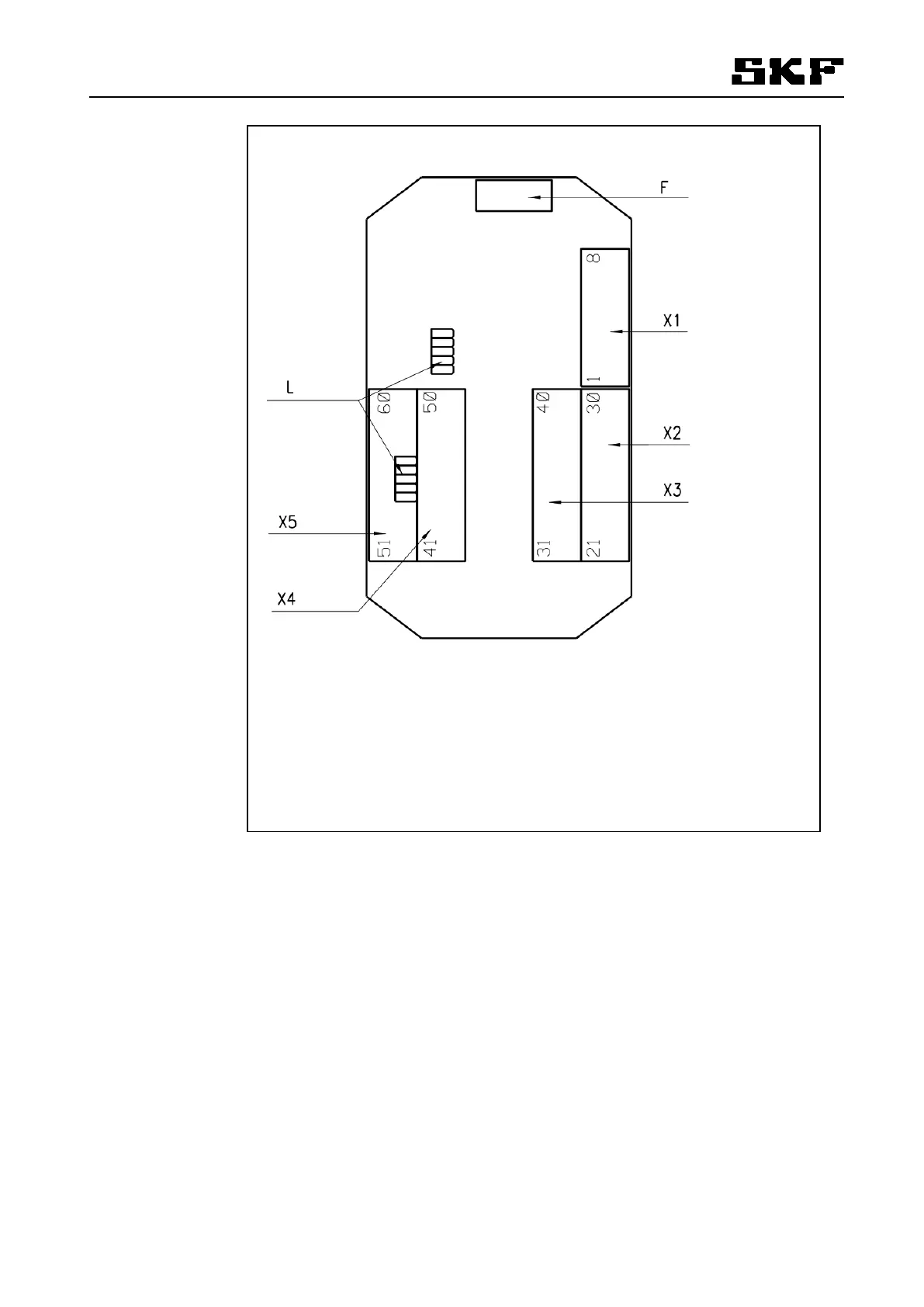

Figure 22. FAU1015
S layout
461252
F
Fu
se 315 mAT
L
LED connection pad
s
X1
Terminal blo
ck power
supply
X2
Terminal blo
ck sensor
s 1
– 5
X3
Terminal blo
ck sensor
s 6
– 10
X4
Terminal blo
ck relay ou
tputs 1
–
5
X5
Terminal blo
ck outputs
6
– 10
47
49
Table of Contents
Table of Contents
2
Legal Disclosure
5
Explanation of Symbols, Signs and Abbreviations
6
Safety Instructions
9
General Safety Instructions
9
General Behaviour When Handling the Product
9
Intended Use
9
Foreseeable Misuse
10
Painting of Plastic Parts Not Allowed
10
Modifications to the Product
10
Forbidden Measures
10
Other Applicable Documents
10
Notes on the Type Plate
11
Notes on the CE Marking
11
Note on UKCA Marking
11
Notes on the EAC Marking
11
Note on the Rohs Mark in China
11
Persons Authorised to Operate the Device
12
Operator
12
Mechanical Specialist
12
Electrician
12
Orientation for External Technicians
13
Provision of Personal Protective Equipment
13
Operation
13
Emergency Stopping of the Flowmeter Unit
13
Transport, Installation, Maintenance, Malfunctions, Repairs, Shutdown for Maintenance and Disposal
13
Commissioning and Daily Start-Up
14
Cleaning
14
Residual Risks
15
Delivery, Return & Storage
16
Delivery
16
Return
16
Storage
16
Lubricants
17
General Information
17
Lubricant Selection
17
Material Compatibility
18
Ageing of Lubricants
18
Skf Safeflow Flowmeters Sf05A, Sf10A, Sf15A, Sf20A, Sf30A
19
SKF Safeflow Flowmeter's Technical Description
19
Main Components
19
Operating Principle
19
Technical Specifications
19
Specifications
19
Dimensions
21
Accessories
25
Specifying the Flow
25
Adjustment Curves
25
Drawing the Oil Line to the Chart
25
Defining the Flowmeter Cone Level
26
Flow Adjustment (See Adjustment Curves)
26
Maintenance
32
Spare Parts and Modification Kits
32
Flow Tube -Specific Alarm Bss
42
EC Declaration of Conformity
42
Technical Specifications BSS-051015
43
General
43
Control Unit
44
Alarm Sensor
44
Technical Specifications BSS-12030
45
General
45
Control Unit
46
Alarm Sensor
46
Operating Principle BSS-051015 and BSS-12030
47
Electrical Installation BSS-051015 and BSS12030
47
Connecting the Sensors
49
External Connections
49
Settings and Adjustments BSS-051015
51
Disabling the Indicator Lights
51
Adjusting the Sensors' Switching Point
51
Settings and Adjustments BSS-12030
52
Disabling the Indicator Lights
52
Adjusting the Sensors' Switching Point
52
Terminal Block Sequence BSS-051015 and BSS-12030
53
Measuring Group-Specific Alarm Bsc
54
Technical Specifications BSC-051015
54
General
54
Control Unit
55
Alarm Sensor
55
Technical Specifications BSC-12030
56
General
56
Control Unit
57
Alarm Sensor
58
Working Principle BSC-051015 and BSC-12030
58
Electrical Installation BSC-051015 and BSC-12030
59
Connecting the Sensors
60
External Connections
60
Settings and Adjustments BSC-051015
62
Setting the Delay
62
Adjusting the Sensors' Switching Point
62
Settings and Adjustments BSC-12030
62
Terminal Block Sequence BSC-051015 and BSC-12030
63
Appendices
64
CHINA Rohs Table
64
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the SKF SF05A and is the answer not in the manual?
Ask a question
