Ski-Doo Summit 583 1998 - Cylinder;Piston Clearance; Used Piston Measurement

Section 04 ENGINE
Subsection 04 (LEAK TEST AND ENGINE DIMENSION MEASUREMENT)
04-04-8

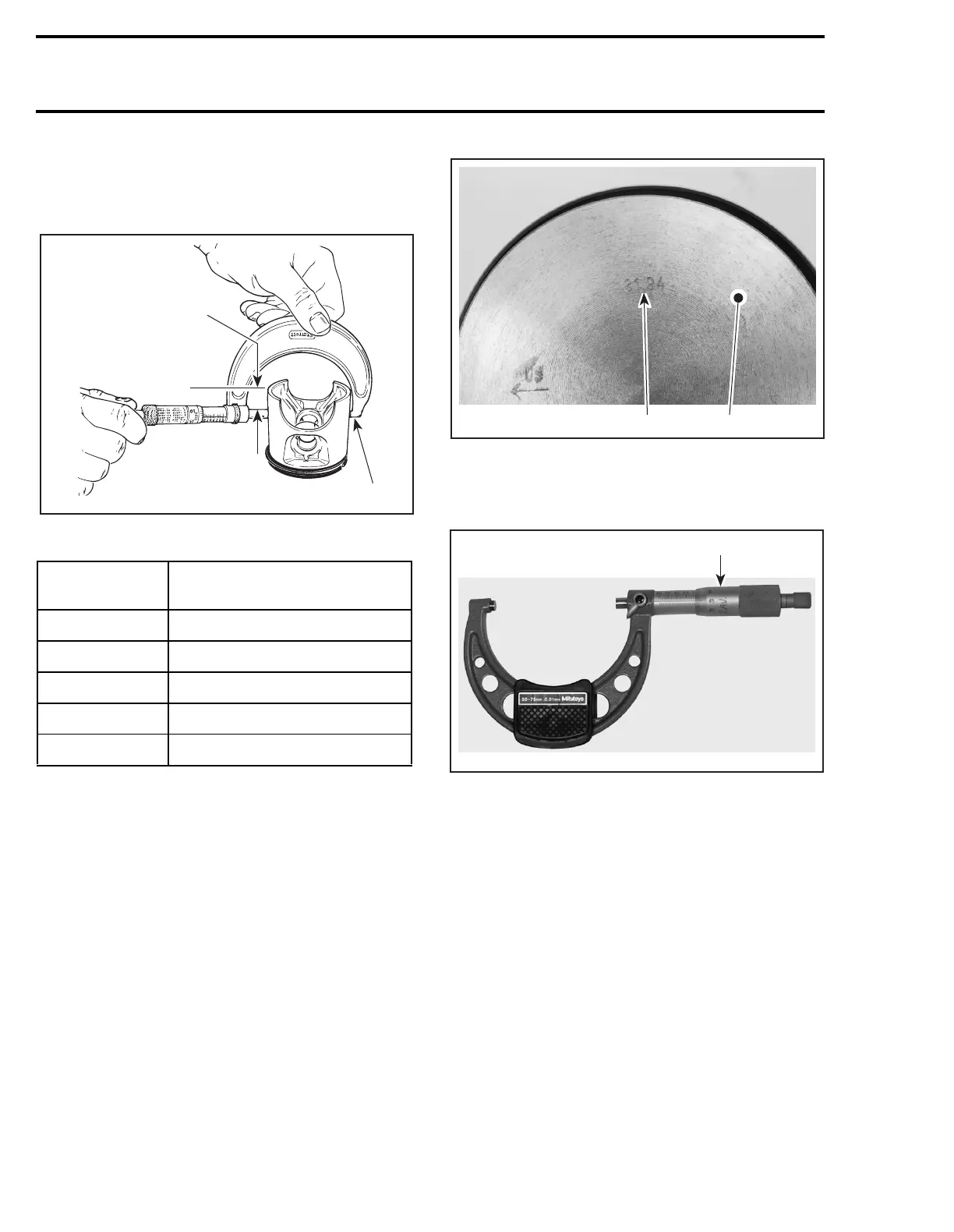

USED PISTON MEASUREMENT
Using a micrometer, measure piston at A perpendic-
ularly (90°) to piston pin.
1. Measuring perpendicularly (90º) to piston pin axis
A. See table below
The measured dimension should be the same as
the one scribed on piston dome. If not, install a
new piston.
CYLINDER/PISTON CLEARANCE
Used and New Pistons
NOTE:
Make sure used piston is not worn. See
USED PISTON MEASUREMENT above.
Take the measurement on the piston dome.
1. Piston dome
2. Piston measurement
Adjust and lock a micrometer to the specified val-
ue on the piston dome.
1. Micrometer set to the piston dimension
With the micrometer set to the piston dimension,
adjust a cylinder bore gauge to the micrometer di-
mension and set the indicator to 0.
ENGINE TYPE
DIMENSION A
mm (in)
443 20.8 (.82)
503 18 (.71)
494 30 (1.18)
583 27 (1.06)
670 29 (1.14)
F01D0NA
1
A
F00D0EA
2 1
F00B08A
1
