Section 07 REAR SUSPENSION
Subsection 03 (FORMULA Z 670 SUSPENSION)
07-03-9

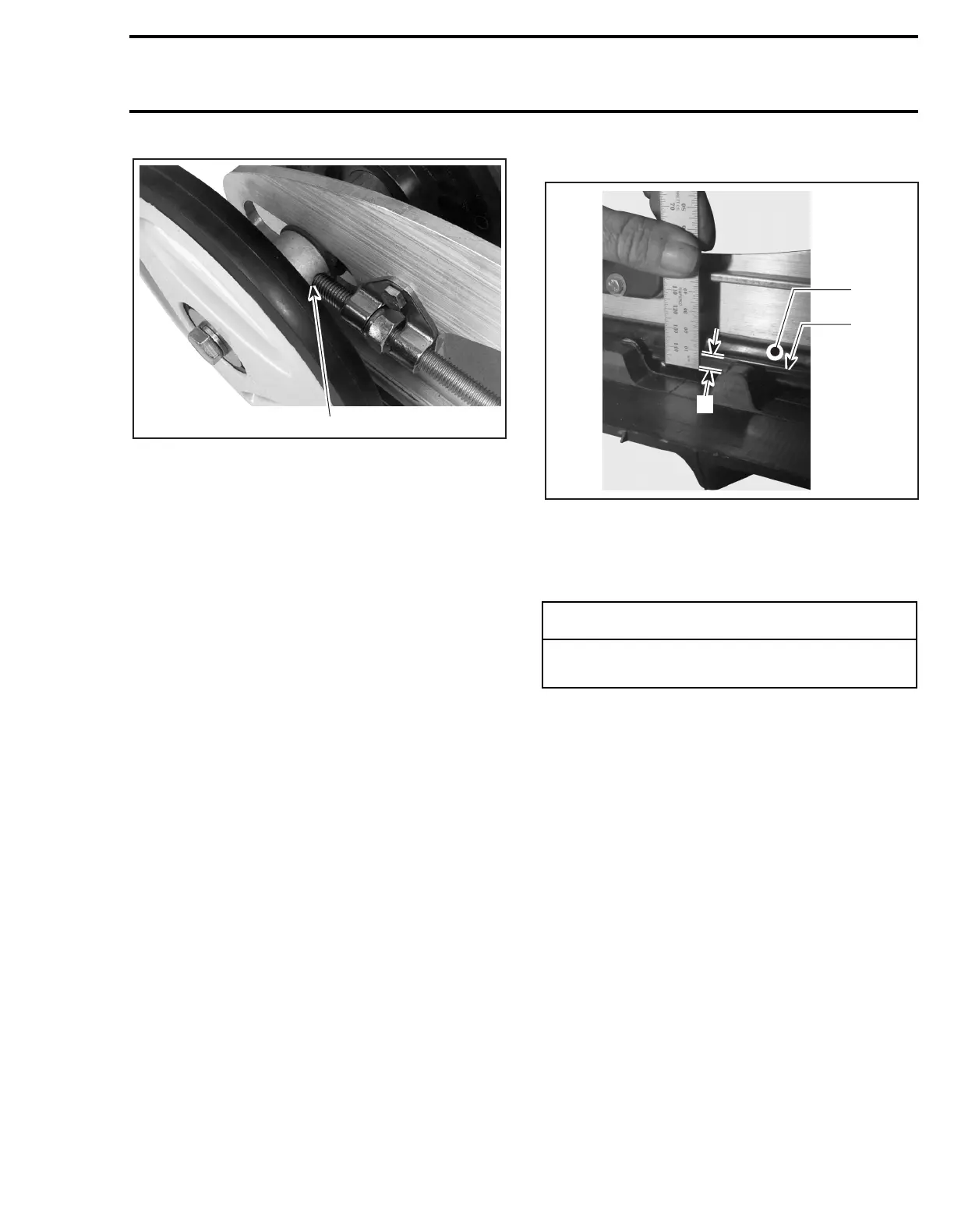

1. Screw in bushing hole
INSPECTION
Shock Absorber
Refer to SUSPENSION AND SKI SYSTEM 08-03
then look for
Shock Inspection
.
8, Slider Shoe
Measure slider shoes from the bottom to the
0.5 mm (.020 in) radius as shown on the next pho-
to.
Minimum thickness must be 2 mm
(.080 in).
TYPICAL
1. Slider shoe
2. Molding line (this line is not the wear limit)
A. Wear limit measurement (must be at least 2 mm (.080 in))
Replace slider shoes when wear limit is reached.
A03F3EA
1
-
CAUTION
Slider shoes must always be replaced in
pairs.
A01F2MA
1
2
A
