Section 05 TRANSMISSION
Subsection 08 (GEARBOX)
05-08-9
INSPECTION
Check bearing condition. There must be no discol-
oration, missing rollers or balls, broken cages, etc.
Check sprocket teeth.

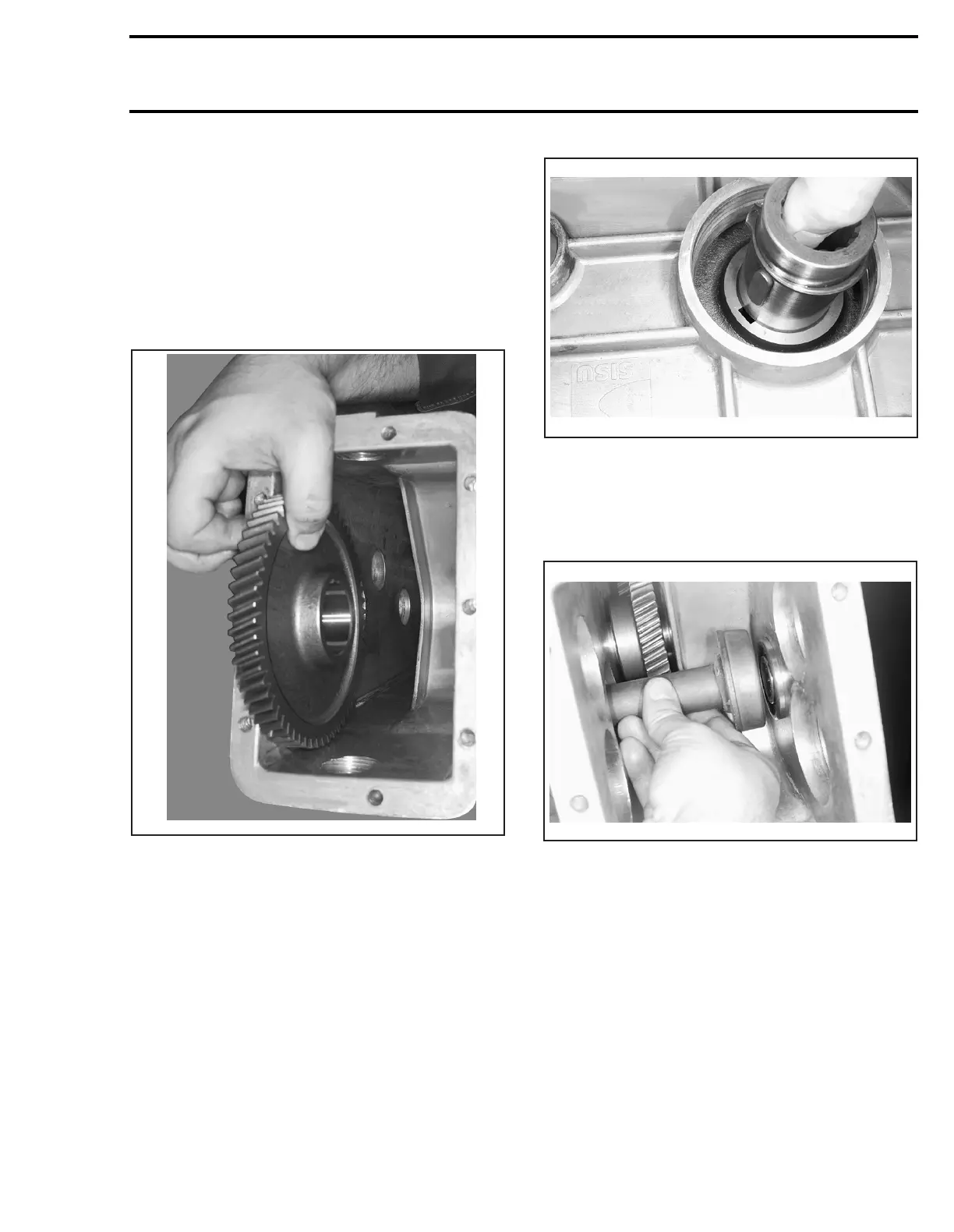

ASSEMBLY
Install lower gear
no. 34
with its shoulder facing
RH side.
Install lower shaft
no. 36
with its hollow side (no
splines) on RH side. Align key with lower gear
no. 34
keyway.
Install intermediate gears
no. 29
with their shoul-
der towards LH side. Position spacers
no. 28
as
illustrated in removal procedure. Bevelded side of
spacers goes against gearbox wall.
Install RH side bearing of brake and reverse shafts.
Partially assemble brake shaft gears
nos. 24
and
25
with shoulder facing recess.
A29D1FA
A29D1GA
A29D1HA
