Section 06 ELECTRICAL
Subsection 06 (TESTING PROCEDURE)
06-06-10
3. IGNITION SWITCH, TETHER
CORD SWITCH AND
EMERGENCY SWITCH
TESTING

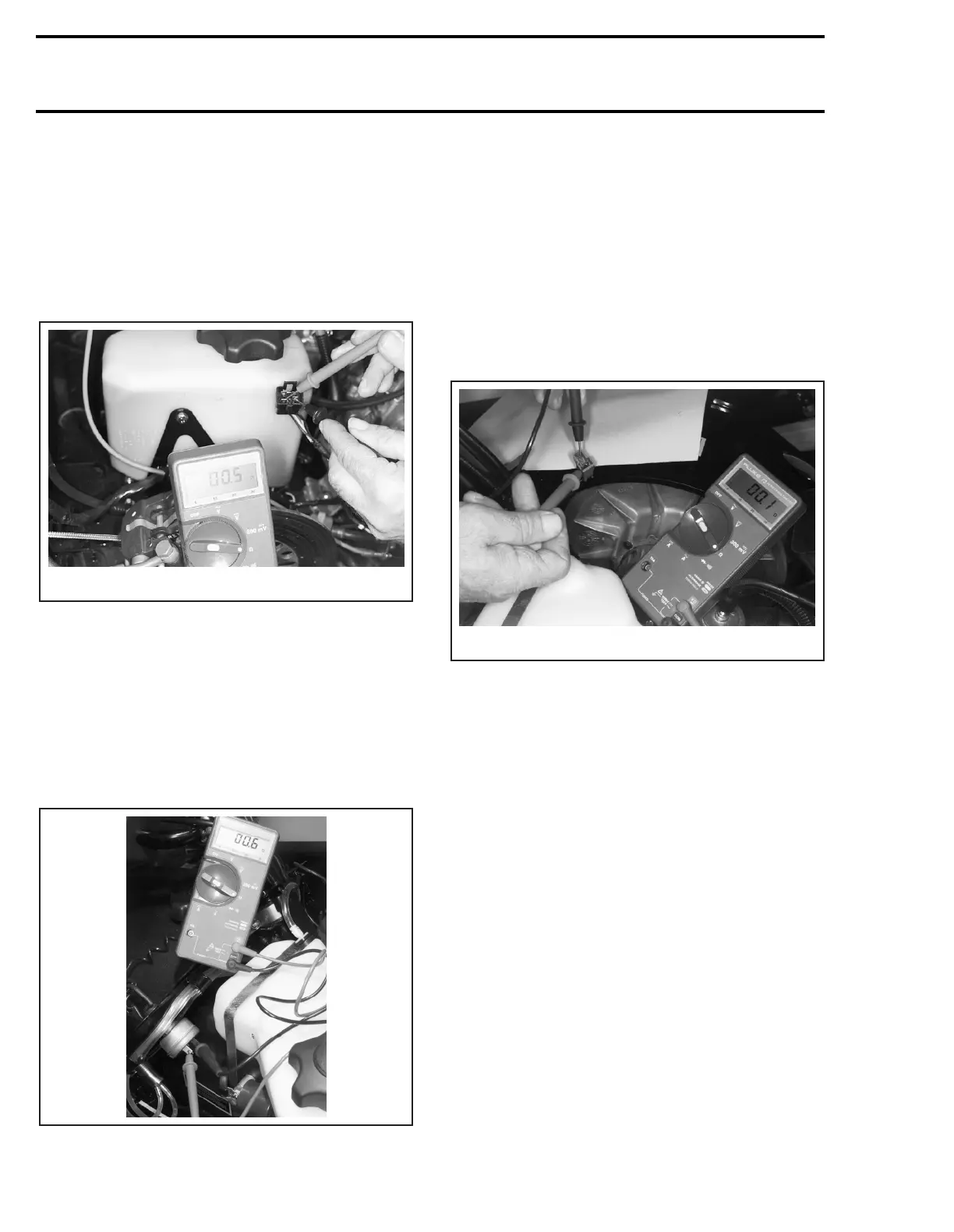

Disconnect connector housing 2-01 from engine,
and using a multimeter, check resistance as indi-
cated in IGNITION table.
If readings are acceptable, go on to next step.
If readings are inadequate, individually check each
switch as follows.
Ignition Switch (key)
Disconnect switch housing. Using a multimeter,
check between
MAG
and
GRD
terminals if the
circuit is open (0.L
M
Ω
) in operating position and if
the circuit is closed (0
Ω
) in off position.
TYPICAL
If readings do not correspond to the above-men-
tioned indications, replace switch.
If readings are acceptable, check other switches.
Emergency Switch
Unplug switch block connected to main wiring
harness. Check using a multimeter. Connect
probes to 6-02-C-M and 6-02-D-M terminals. The
multimeter should indicate an open circuit (0.L
M
Ω
)
in operating position and a closed circuit (0
Ω
) in
off position.
TYPICAL
If readings do not correspond to the above-men-
tioned indications, replace switch.
If readings are acceptable, check other switches.
Tether Cord Switch
Unplug switch block connected to main wiring
harness. Check using a multimeter by connecting
probes to 6-03-B-M and 6-03-A-M wires. The mul-
timeter should indicate an open circuit (0.L
M
Ω
) in
operating position and a closed circuit (0
Ω
) in off
position.
A03E1IA
A05E07A
A05E08A
