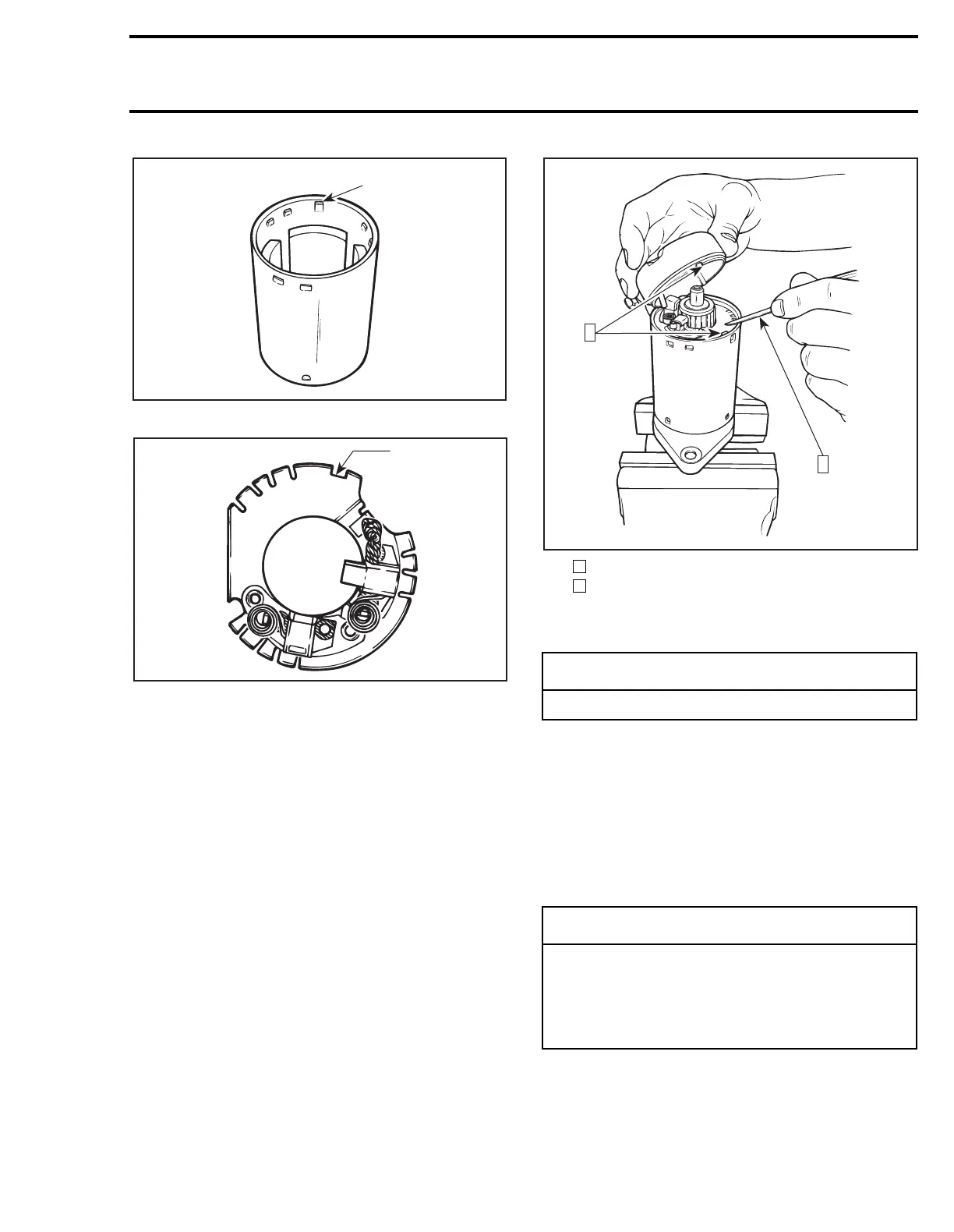

1. Locating protrusion is the higher one
1. Brush holder locating notch
To ease end frame installation, retain brush holder
with a small screwdriver while installing end
frame.
Step : Retaining brush holder with a screwdriver
Step : Align here
Align end frame notch with brush holder notch/
yoke protrusion.
STARTER INSTALLATION
Installation is essentially the reverse of removal
procedure. However, pay particular attention to
the following.
Make sure that starter and engine mating surfac-
es are free of debris. Serious trouble may arise if
starter is not properly aligned.
F01H0SA
1
F01H0TA
1
-
CAUTION
Make sure end frame fits perfectly on yoke.
◆
WARNING
Always connect RED positive cable first then
BLACK negative cable last. Whenever con-
necting the RED positive cable to the starter
motor make sure the battery cables are dis-
connected to prevent electric shock.
F01H0UA
2
1
1
2
