Section 04 ENGINE
Subsection 02 (443 AND 503 ENGINE TYPES)
04-02-2
ENGINE REMOVAL AND
INSTALLATION
Disconnect or remove the following:
– negative cable from battery (on electric starting
models)
– belt guard
–drive belt
– drive pulley using appropriate puller, refer to 05-03
DRIVE PULLEY
– air silencer and carburetors
– impulse line from engine crankcase
– 4-connector housing
– exhaust pipe and exhaust cooling hose on so
equipped models
– oil pump inlet tube and plug it
– oil pump cable
– rewind cable: tie a knot near rewind housing
and remove starting grip

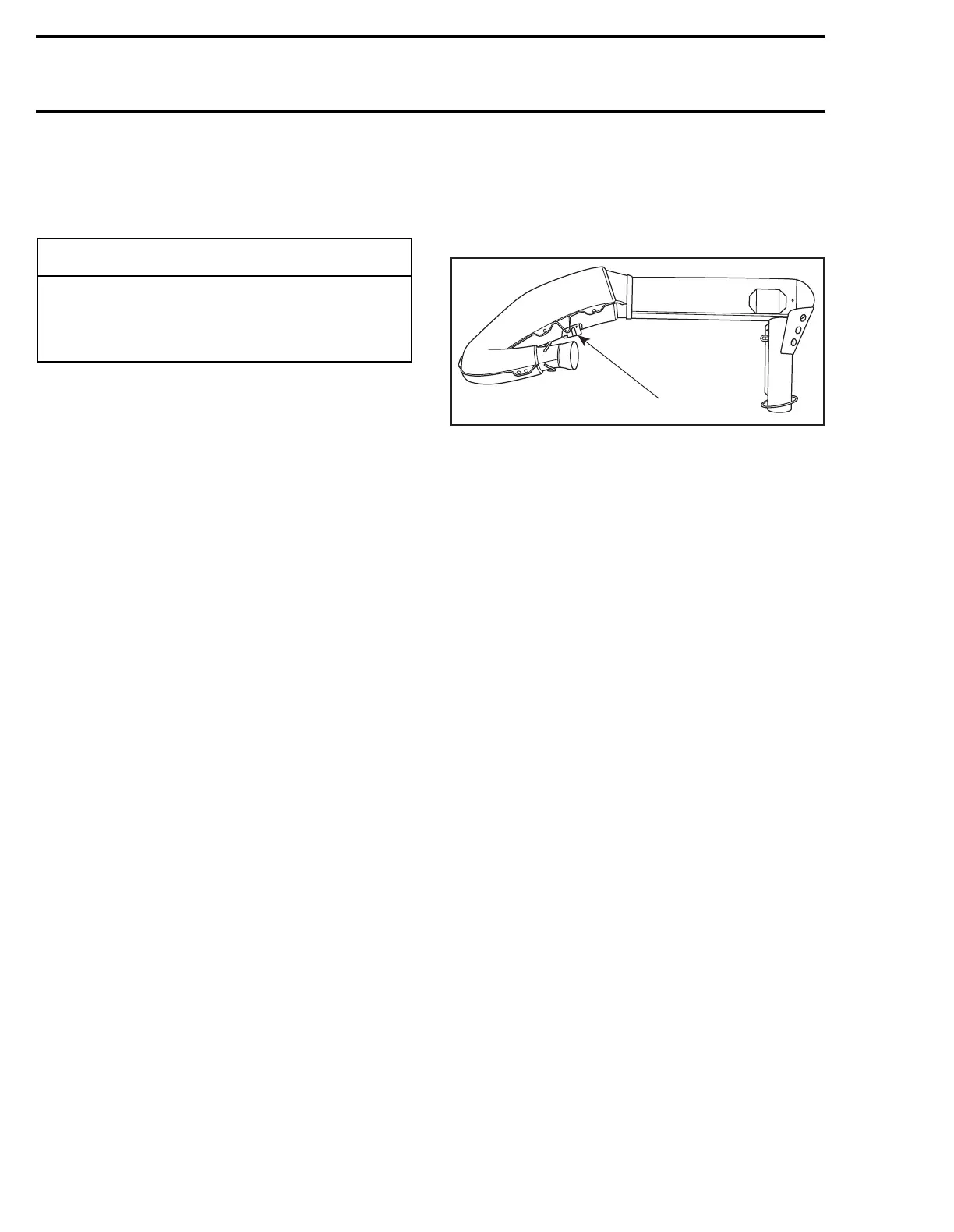

TUNED PIPE IDENTIFICATION
This part is identified on welded support.
Second number sequence of P/N is stamped on
part.
1. Identification: 0464 for 514 0464 00
◆
WARNING
Before disconnecting any electrical wire in
starter system always first disconnect the
BLACK negative battery cable (on electric
starting models).
A03C1KA
1
