Section 05 TRANSMISSION
Subsection 06 (BRAKE)
05-06-4
17, Brake Disc
Check for scoring, cracking or heat discoloration,
replace as required.
ASSEMBLY
24, Brake Lever Lock Nut
Tighten nut to 3 N•m (27 lbf•
in
). Check free
movement of brake lever.
Apply Loctite Black Max Gel (Loctite item no.
18398) over nut and on bolt threads.
INSTALLATION
To install brake, reverse removal procedure paying
attention to the following.

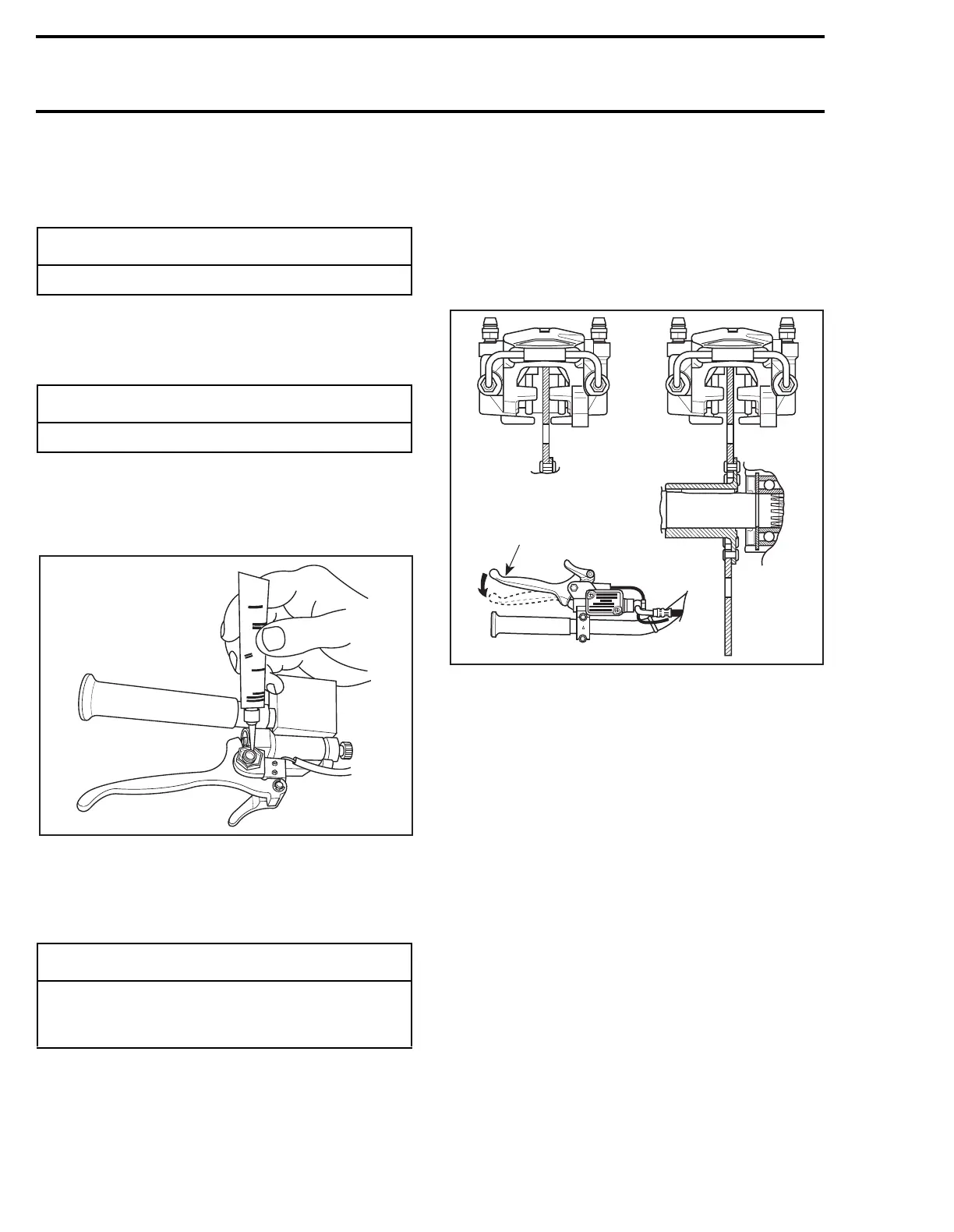

7, Brake Pad
After brake pads installation, brake disc must be
centered in caliper. Apply brake then check for
proper brake disc positioning.
Push on appropriate caliper piston in order to
move pad inward allowing proper brake disc posi-
tioning.
1. Brake disc not centered
2. Brake disc centered
3. Apply brake before checking
Apply brake then recheck.
17, Brake Disc
S-Series
Apply anti-seize lubricant (P/N 413 7010 00) on
shaft.
The disc hub exceeds the disc more from one
side than from the other. Install disc with the long-
er exceeding portion toward driven pulley.
Skandic WT/SWT/WT LC
The disc hub exceeds the disc more from one
side than from the other. Install disc with the long-
er exceeding portion toward LH side.
-
CAUTION
Brake disc should never be machined.
◆
WARNING
Always install a new nut when servicing.
◆
WARNING
Avoid getting oil on brake pads. Do not lubri-
cate or apply antirust or antifreeze solution
in brake cable.
TITE
CK
X
A06D15A
1
A03D2KA
2
3
