Ski-Doo Summit 583 1998 - General; Testing Procedure

Section 06 ELECTRICAL
Subsection 06 (TESTING PROCEDURE)
06-06-1
TESTING PROCEDURE 0
GENERAL
The following chart gives the engine types with
their implemented system.
CDI System Identification
Nippondenso
The NIPPONDENSO CDI system has a separate
ignition coil which is mounted on the reservoir
support.
1. Ignition module is connected to the ignition
generator coil via a 3-wire connector (RED,
BLACK/RED and BLACK wires).
➀

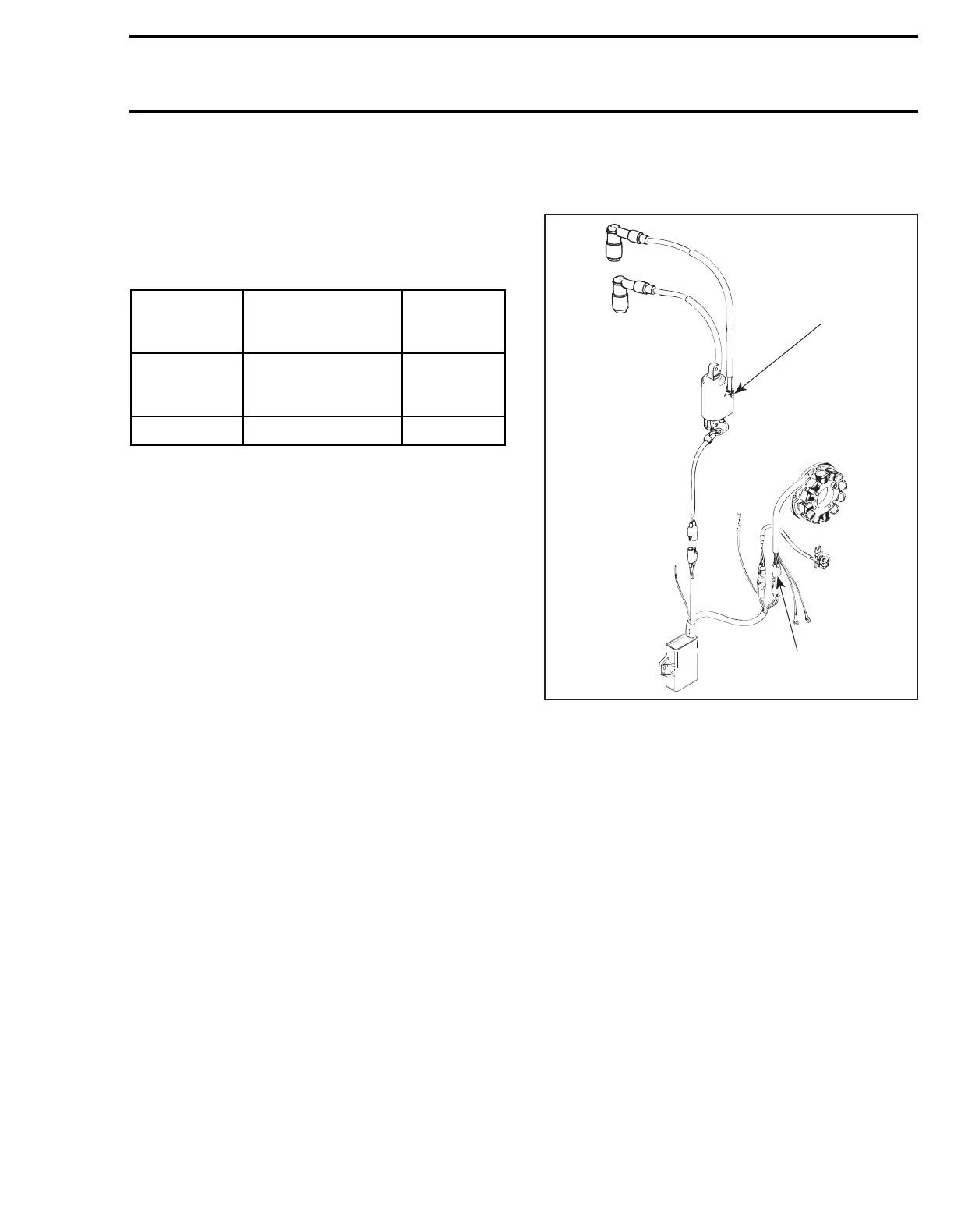

NIPPONDENSO CDI TRIGGER COIL SYSTEM
1. Separate ignition coil mounted on reservoir support
2. Three-wire connector (RED, BLACK/RED and BLACK)
Ducati
The DUCATI CDI system has a combined ignition
module/ignition coil which are mounted on oil res-
ervoir support.
2. Ignition module is connected to the ignition
generator coils via a 2-wire connector (GREEN
and WHITE wires).
ENGINE
TYPE
IGNITION
SYSTEM
CHARGING
SYSTEM
OUTPUT
494, 583
and 670
➀
NIPPONDENSO
(CDI)
TRIGGER COIL
220
443 and 503
➁
DUCATI (CDI) 240
A27E02A
1
2
