Section 05 TRANSMISSION
Subsection 05 (PULLEY DISTANCE AND ALIGNMENT)
05-05-2

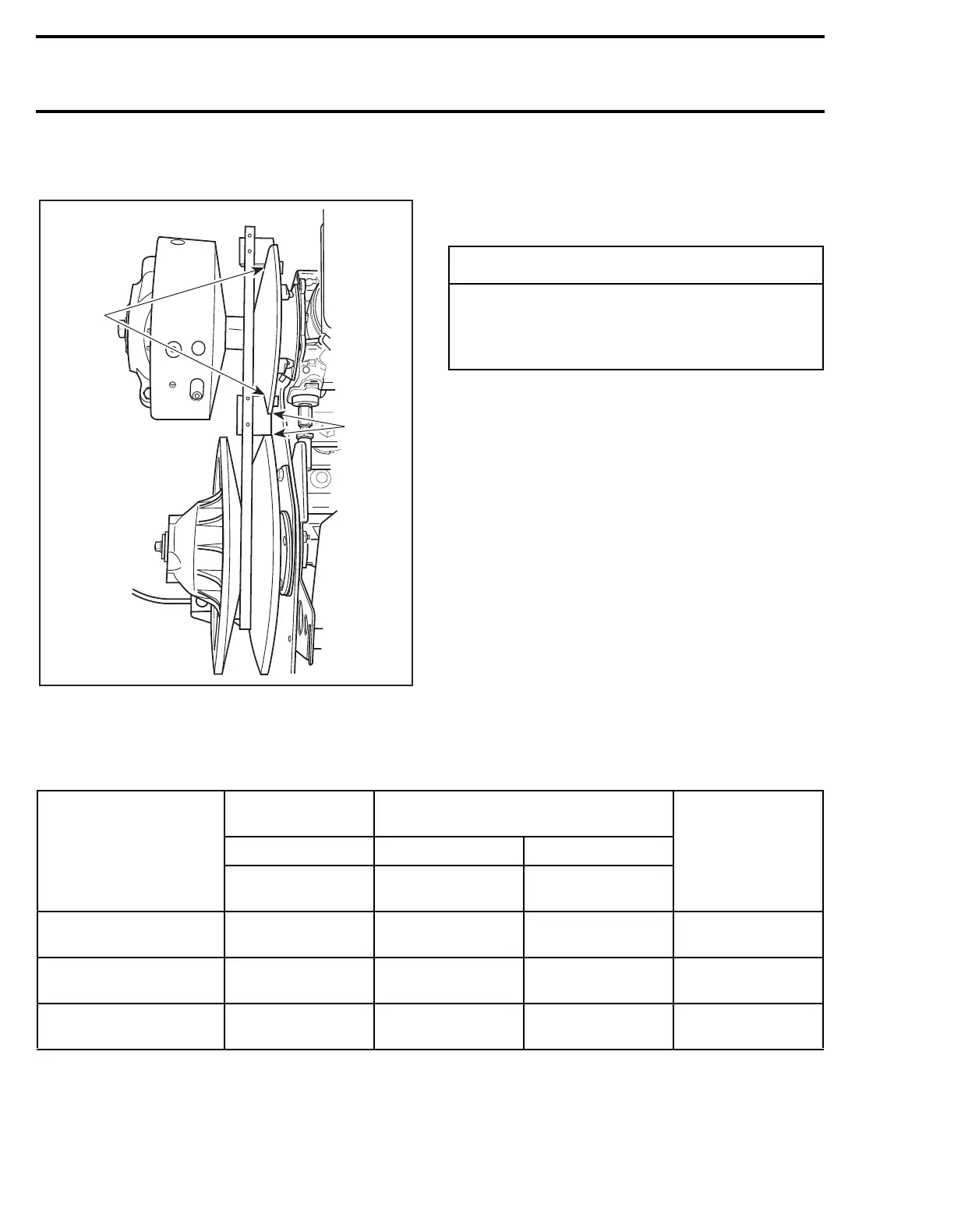

Refer to chart below for proper alignment tem-
plate.
TYPICAL
1. Contact (alignment)
2. Contact (distance)
Drive Belt Deflection
NOTE:
When pulley distance and alignment are
adjusted to specifications, refer to DRIVE BELT
05-02 to adjust drive belt deflection.
PULLEY ALIGNMENT AND DISTANCE SPECIFICATIONS CHART
➀ Alignment templates have been made according to pulley alignment nominal values. However, they
do not take into account allowed tolerances for alignment specifications. They are used as GO/NO GO
gauges for quick alignment and pulley distance check and as templates to reach alignment nominal
values.
A06D0LA
1
2
-
CAUTION
This section deals mainly with adjustment
procedures. For complete assembly require-
ments, refer to the proper ENGINE or TRANS-
MISSION installation section.
MODEL
PULLEY
DISTANCE
OFFSET
ALIGNMENT
TEMPLATE
➀
P/N
Z X Y-X
+
0,
−
1 mm
(
+
0,
−
.040 in)
±
0.50 mm
(.020 in)
±
0.5 mm
(.020 in)
TRA Equipped
S-Series
16.5
(.650)
35.0
(1.380)
1.5
(.060)
529 0267 00
Skandic WT/WT LC
32.75
(1.289)
36.50
(1.437)
0.75 to 2.25
(.030 to .086)
529 0355 02
Skandic SWT
32.75
(1.289)
36.25
(1.427)
1.5
(.060)
529 0310 00
