Section 05 TRANSMISSION
Subsection 08 (GEARBOX)
05-08-10

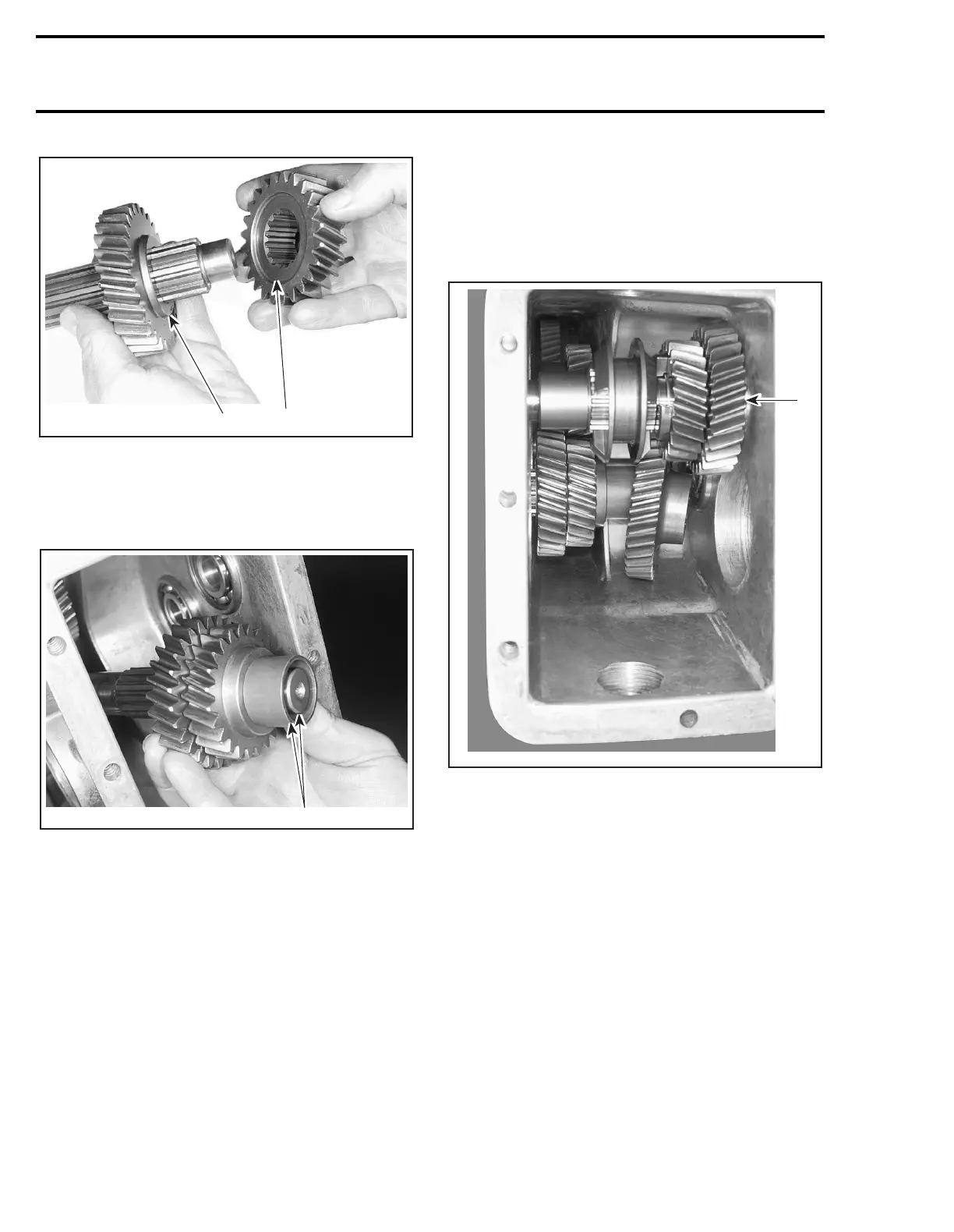

1. Shoulder
2. Recess
Install sleeve
no. 23
on brake shaft
no. 26
then,
slide gears and sleeve until end of sleeve is flush
with shaft end.
1. Flush
Install brake shaft
no. 26
into gearbox then, loose-
ly install gear
no. 22
with its shoulder facing bear-
ing
no. 21
. Do not push brake shaft into bearing
no. 21
at this time.
Install reverse shaft ass’y
no. 38
into its RH side
bearing
no. 19
.
1. Reverse shaft installed in its RH bearing
A29D1IA
1
2
A29D1JA
1
A29D1KA
1
To Next Page
