Ski-Doo Summit 583 1998 - Page 213

Section 05 TRANSMISSION
Subsection 08 (GEARBOX)
05-08-11

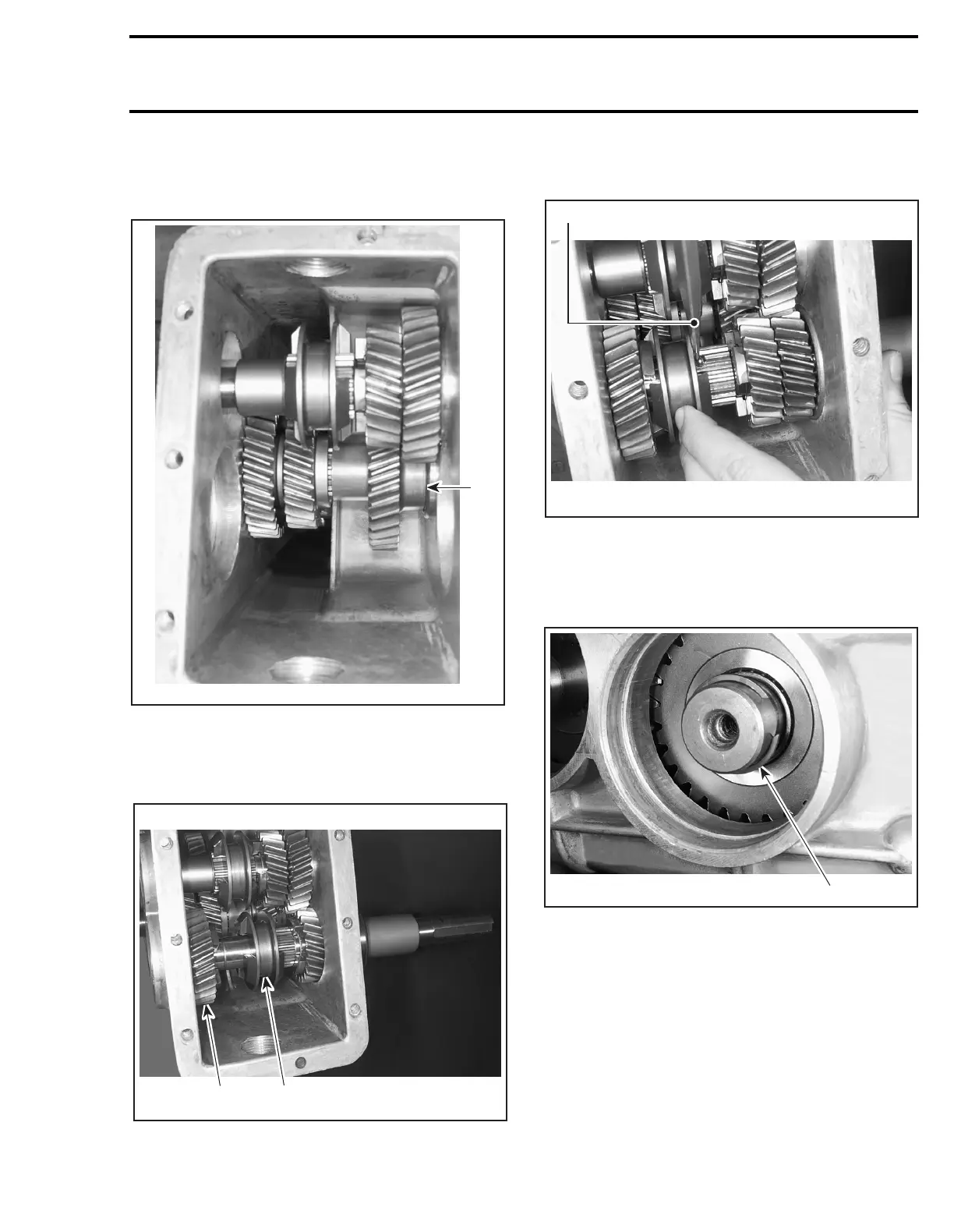

Position gear
no. 22
against bearing RH side bear-
ing
no. 19
then, finalize brake shaft
no. 26
inser-
tion.
1. Finalizing brake shaft insertion
Install driven pulley shaft
no. 15
with the sliding
sleeve loosely inserted. Gear
no. 14
must be at its
place.
1. Sliding sleeve loosely inserted
2. Gear no. 14 in place
Install balls
no. 18
and spring
no. 16
into driven
pulley shaft.
1. Push on ball with a screwdriver then move sliding sleeve to the
right
Finalize driven pulley shaft insertion. Make sure
that gears mesh during insertion. Install circlip
no. 20
.
1. Circlip
Install LH side bearings
nos. 12, 19
and
21
, shims
no. 8
, circlip
no. 9
then, plugs
no. 8
.
A29D1LA
1
A29D1MA
1
2
A29D1NA
1
A29D1PA
1
