Section 07 REAR SUSPENSION
Subsection 03 (FORMULA Z 670 SUSPENSION)
07-03-8

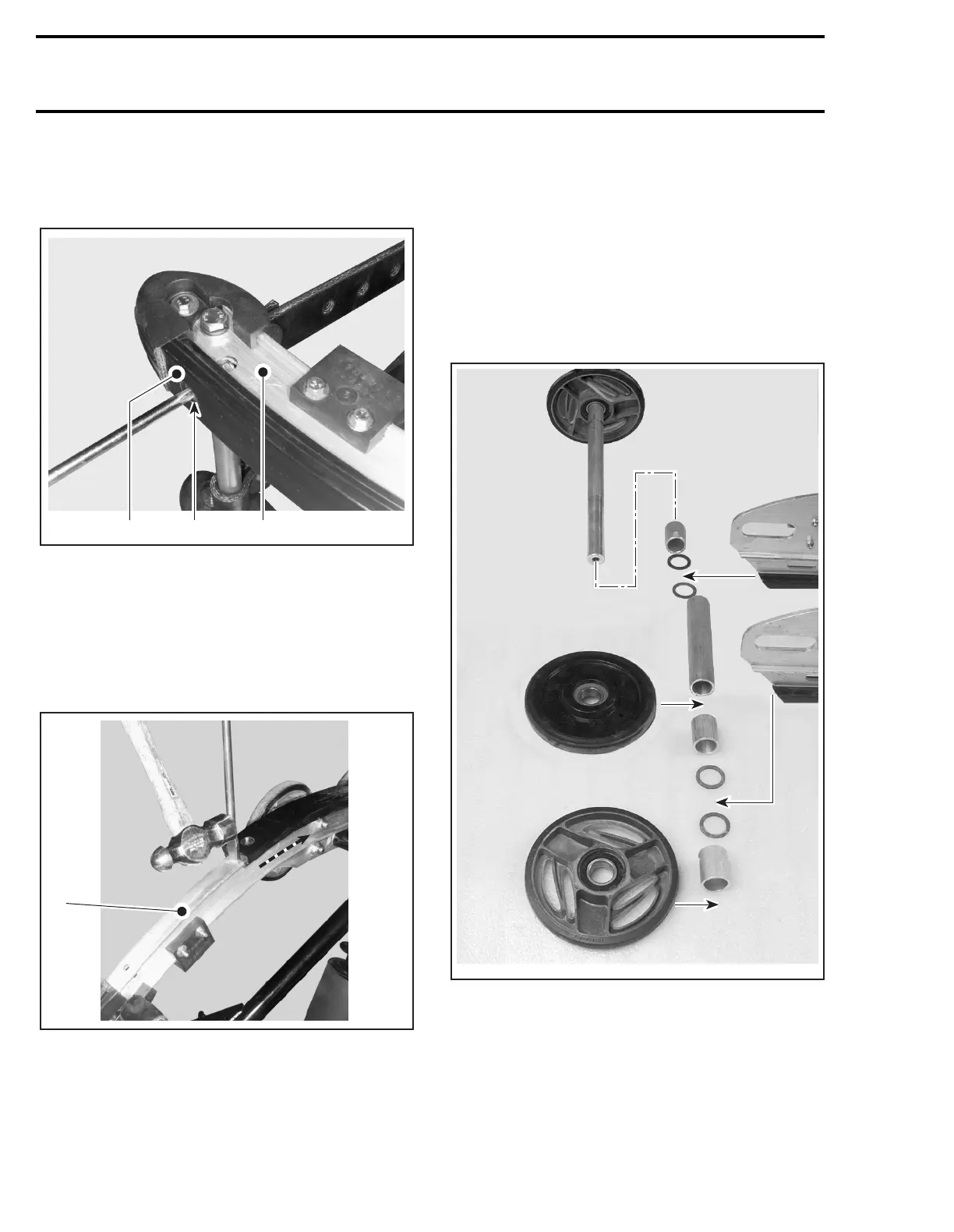

8, Slider Shoe
Remove screw retaining slider shoe to rail front
end, as shown in the following photo.
1. Remove screw
2. Slider shoe
3. Rail
Using a soft material block or a flat screwdriver, as
shown in the next photo, push slider shoe out of
the rail.
NOTE:
When using a screwdriver to remove slid-
er shoe, ensure not to damage rail surface.
PUSH OUT SLIDER SHOE
1. Rail surface
When reinstalling, use a soft sand paper to smooth
rail surface.
Apply BOMBARDIER LUBE (P/N 293 6000 16 —
12 x 14 oz) on rail surface. This will ease new slid-
er shoe installation.
Install new slider shoe and secure with
new
elas-
tic nut (P/N 228 5610 45) and original screw.
Repeat procedure for the other side.
10, Rear Axle
Remove screws retaining rear axle. Note position
of spacers and thrust washers.
When assembling make sure to align screw and
small spacer hole.
A03F2UA
21 3
A03F2VA
1
A03F3CA
