Section 04 ENGINE
Subsection 11 (CARBURETOR AND FUEL PUMP)
04-11-9

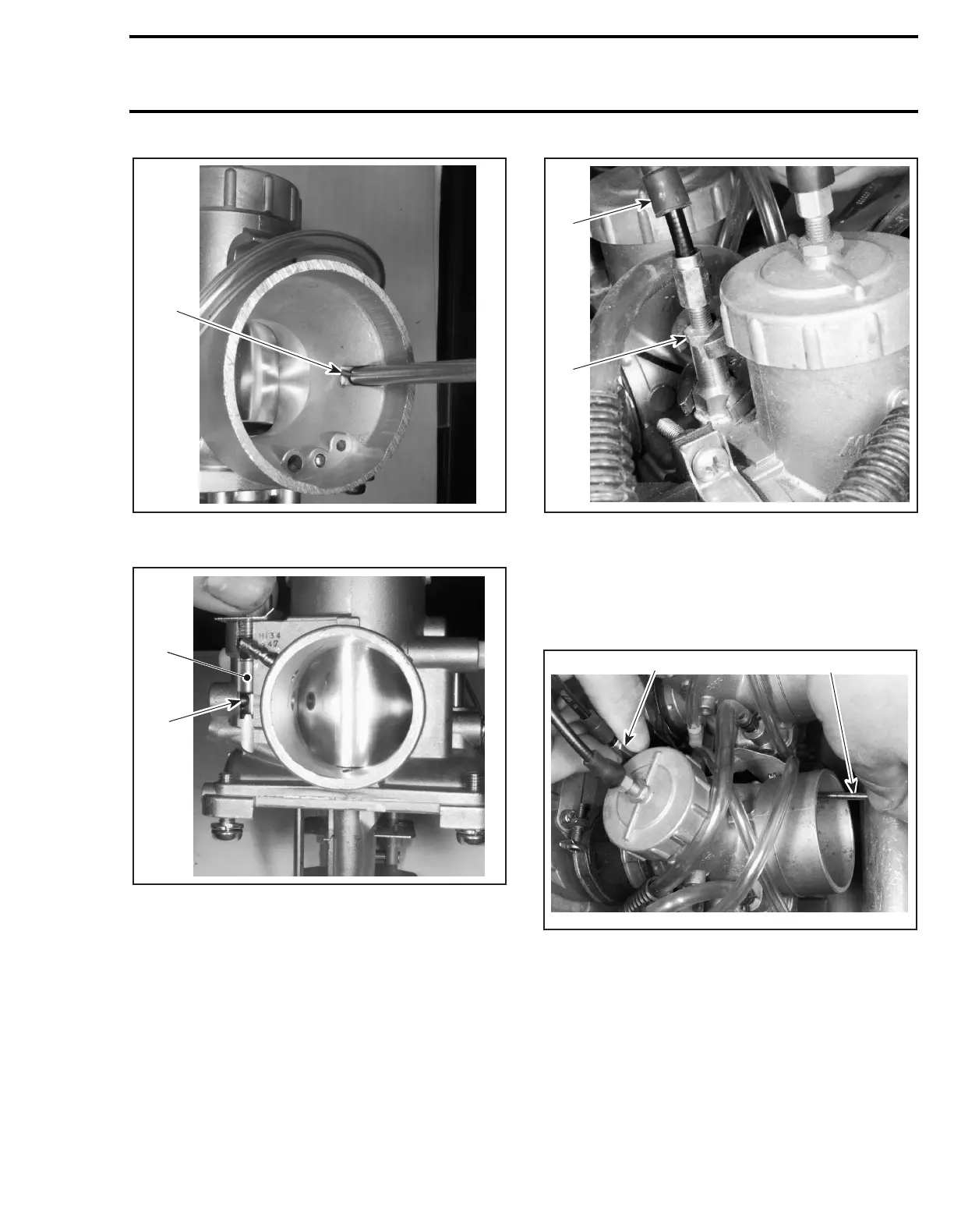

AIR SILENCER SIDE SHOWN
1. Tool stopper within 1 mm (.040 in) of recess wall
CUT-AWAY (ENGINE SIDE SHOWN)
1. Choke plunger
2. Tool properly seated under choke plunger
If tool tip does not seat under choke plunger
no. 15
, adjust as follows:
Make sure choke lever is at fully open position.
Lift up protector cap and loosen choke cable lock
nut, as shown in the next photo.
1. Lift up protector cap
2. Loosen lock nut
Turn choke cable adjustment nut by hand until tool
properly seats under choke plunger.
NOTE:
A light pressure should be needed to posi-
tion tool under plunger.
1. Choke cable adjustment nut
2. Choke plunger tool
Tighten choke cable lock nut and reinstall protec-
tor cap.
Set choke lever to close and open positions and
ensure that tool properly seats under plunger
only
when lever is set to fully open position.
Set choke lever to close position and, by pulling
and pushing choke lever, make sure there is no
tension on cable (free play).
1
A01C5EA
A01C5FA
1
2
2
A01C5GA
1
A01C5IA
1
2
