Section 01 TOOLS AND PRODUCTS
Subsection 01 (SERVICE TOOLS)
01-01-8

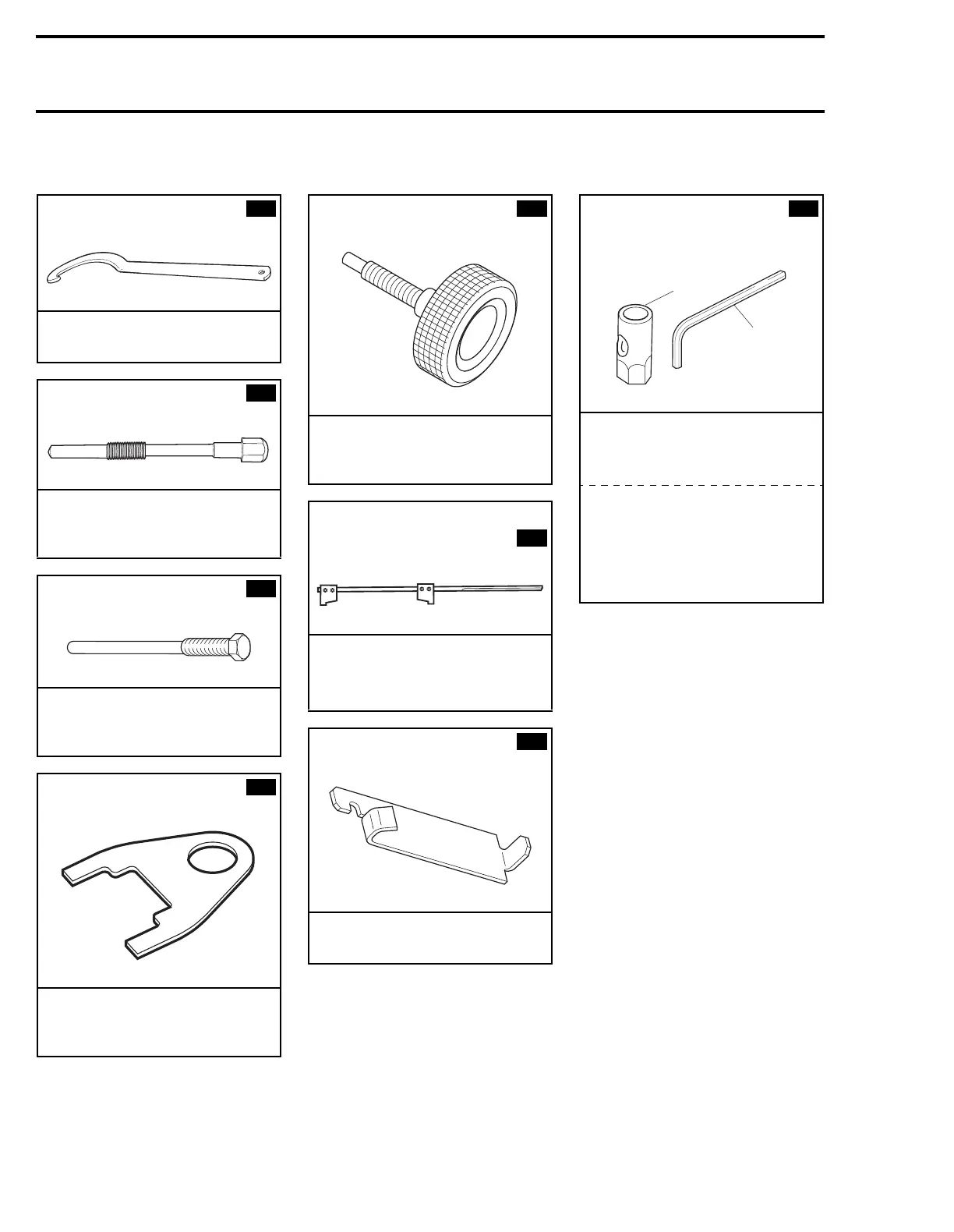

TRANSMISSION — MANDATORY SERVICE TOOLS
Clutch holder
(P/N 529 0064 00)
A01B154
APPLICATION
All TRA drive pulleys.
TRA drive pulley puller
(P/N 529 0224 00)
A06B014
APPLICATION
TRA drive pulley for the 494 and
670 engines.
TRA drive pulley puller
(P/N 529 0079 00) (25 mm)
A18B044
APPLICATION
TRA drive pulley for the 443 and
503 engines.
Forks (qty 3)
(P/N 529 0055 00)
A16B014
APPLICATION
All vehicles equipped with a TRA
drive pulley.
51
75
55
57
Drive belt installer
(P/N 529 0172 00)
A00A1A4
APPLICATION
All vehicles except Skandic WT
Series.
Transmission alignment bar
A) (P/N 529 0267 00)
B) (P/N 529 0355 02)
A01B4D4
APPLICATION
A) S-Series.
B) Skandic WT/WT LC/SWT.
Spring scale hook (long)
(P/N 529 0309 00)
A00B4A4
APPLICATION
S-Series.
58
78
84
Drive belt tension adjuster
tool
(P/N 529 0087 00)
A15B044
APPLICATION
All models except Skandic WT
Series.
Parts included:
1) Hex wrench
(P/N 420 8767 30
2) Socket wrench
(P/N 529 0150 00)
63
2
1
