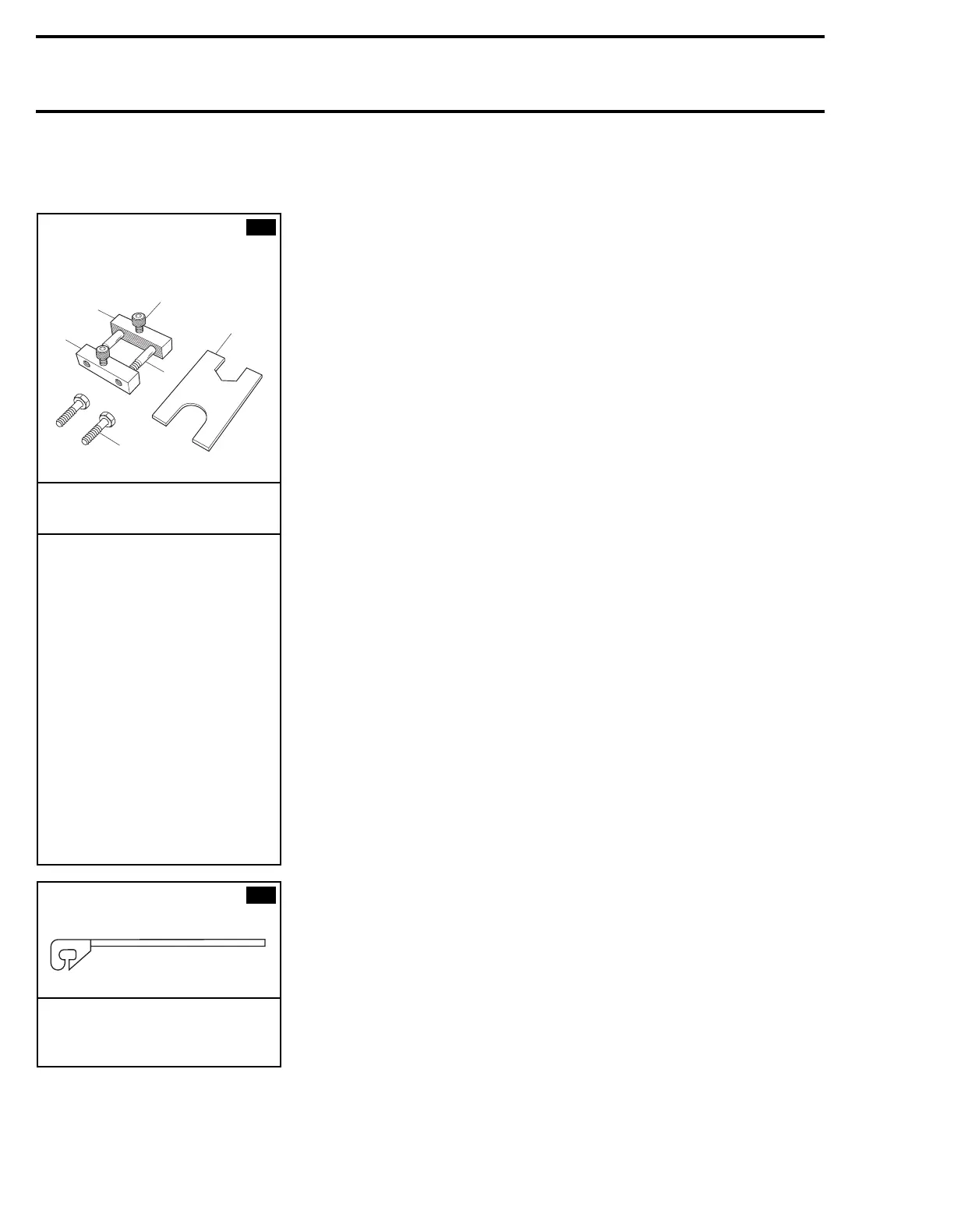

TRANSMISSION (continued) — RECOMMENDED SERVICE TOOLS
The following tools are highly recommended to optimize your basic tool kit and reduce repair time.
Drive axle sprocket
adjuster
(P/N 861 7257 00)
A01B2O4
APPLICATION
All vehicles.
Parts included in the kit:
1) Block with threads
(P/N 529 0107 00)
2) Block without threads
(P/N 529 0108 00)
3) Plate
(P/N 529 0106 00)
4) Bolt M10 (2)
(P/N 222 0075 65)
5) Allen screw M8 (2)
(P/N 222 9830 65)
6) Screw M8 (2)
(P/N 222 0825 65)
NOTE: When the tool is to be use
between tunnel and sprocket use
screw M8.
Transmission adjuster
(P/N 529 0303 00)
A03D1T4
APPLICATION
Vehicles equipped with “push-pull
shifter” reverse transmission.
