SKOPE Reflex Underbench Fridge and Freezer
Replacement Procedures
Service Manual
Drawers
Adjust Drawer
Alignment
If a drawer is out of alignment, realign it by loosening the top and/or bottom drawer bracket
fixing screws, move the drawer as required, and re-tighten the bracket screws.
Doors
Adjust Door
Alignment
If a door is out of alignment, realign it by loosening the top and/or bottom hinge bracket fixing
screws, move the door as required, and re-tighten the hinge bracket screws.
Door Gasket The one-piece door gasket clips into the door frame and runs around the perimeter of the door.
Remove the gasket by peeling it from the door frame, starting at a corner.
If the gasket is out of shape after refitting, use a hair dryer to heat and reshape it.
Removing and
Refitting the
Door
For ease of servicing, the door can be removed from the cabinet.
Procedure 5: To replace the LED driver
1. Unplug the cabinet from the power supply.
2. Gain access to the cartridge electrics panel (see “Cartridge Electrics Panel” on page 37).
3. Unplug, unscrew and replace the LED driver.
4. Reassemble and test for correct operation.

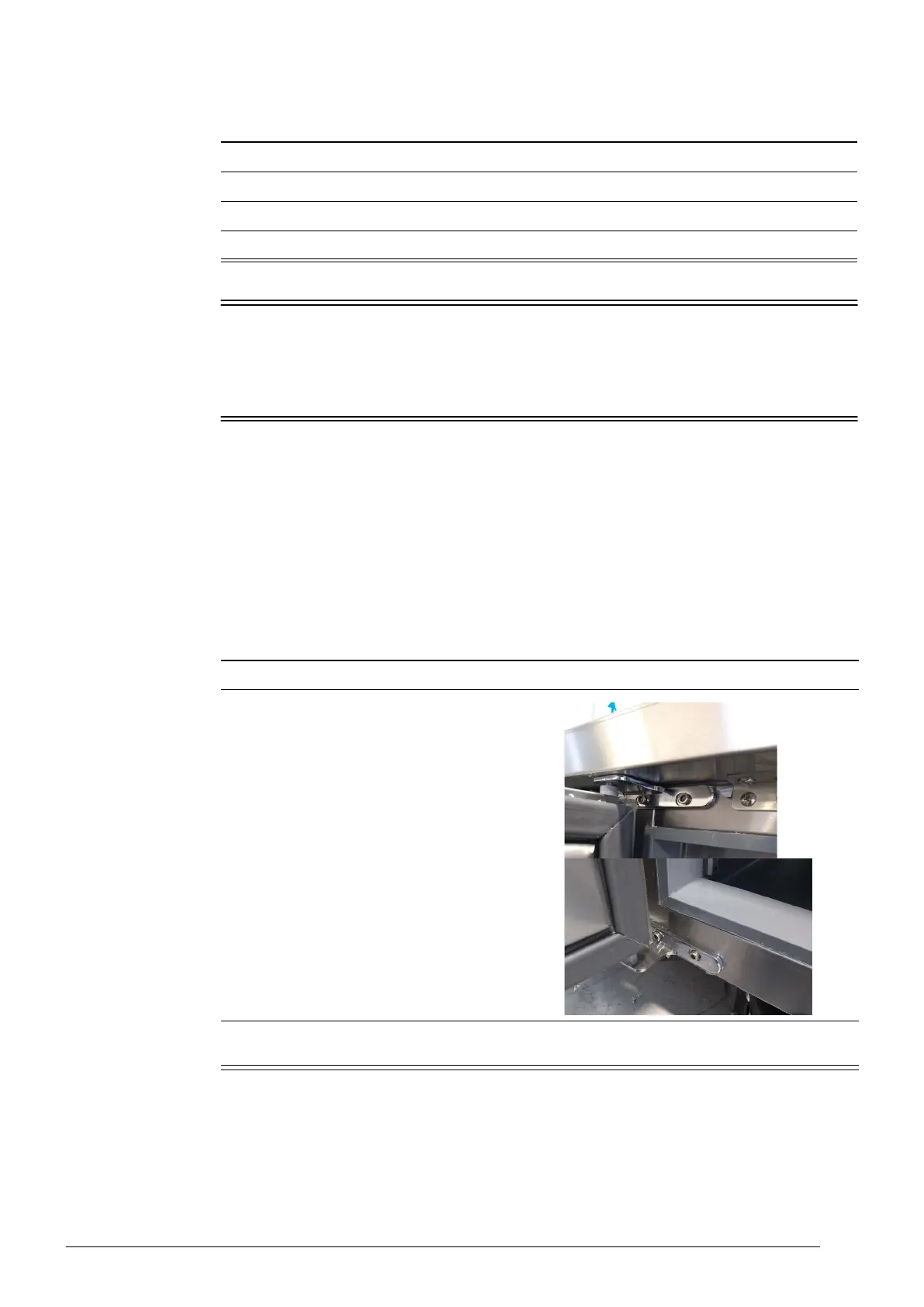

Procedure 6: To remove the door
1. Disconnect the cabinet from the power supply.
2. Unscrew the top and bottom hinges and
remove the door from the cabinet.
3. If necessary, remove the top and bottom hinges, and self-closing mechanism (see “Door Hinges”
on page 26).
