Replacement Procedures
Service Manual
SKOPE Reflex Underbench Fridge and Freezer
Door Tension The door is fitted with a self-closing mechanism which allows the door to self-close. If door
tension is lost, check that the self-closing mechanism is installed correctly, and if necessary
replace (see “Door Hinges” on page 26).
Door Hinges Each door is fitted with top and bottom hinges, and an additional self-closing mechanism which
allows the door to self-close. The hinges and self-closing mechanism are replaceable.
Procedure 7: To refit the door
1. If necessary, refit the self-closing mechanism and top and bottom mechanism. Ensure all bushes
and washers are present, and the bottom hinge is fitted in closed position for correct self-closing.
2. Refit the door to the cabinet.
3. Check that the door seal gasket is fitted correctly and forms a complete seal with the cabinet
when the door is closed.

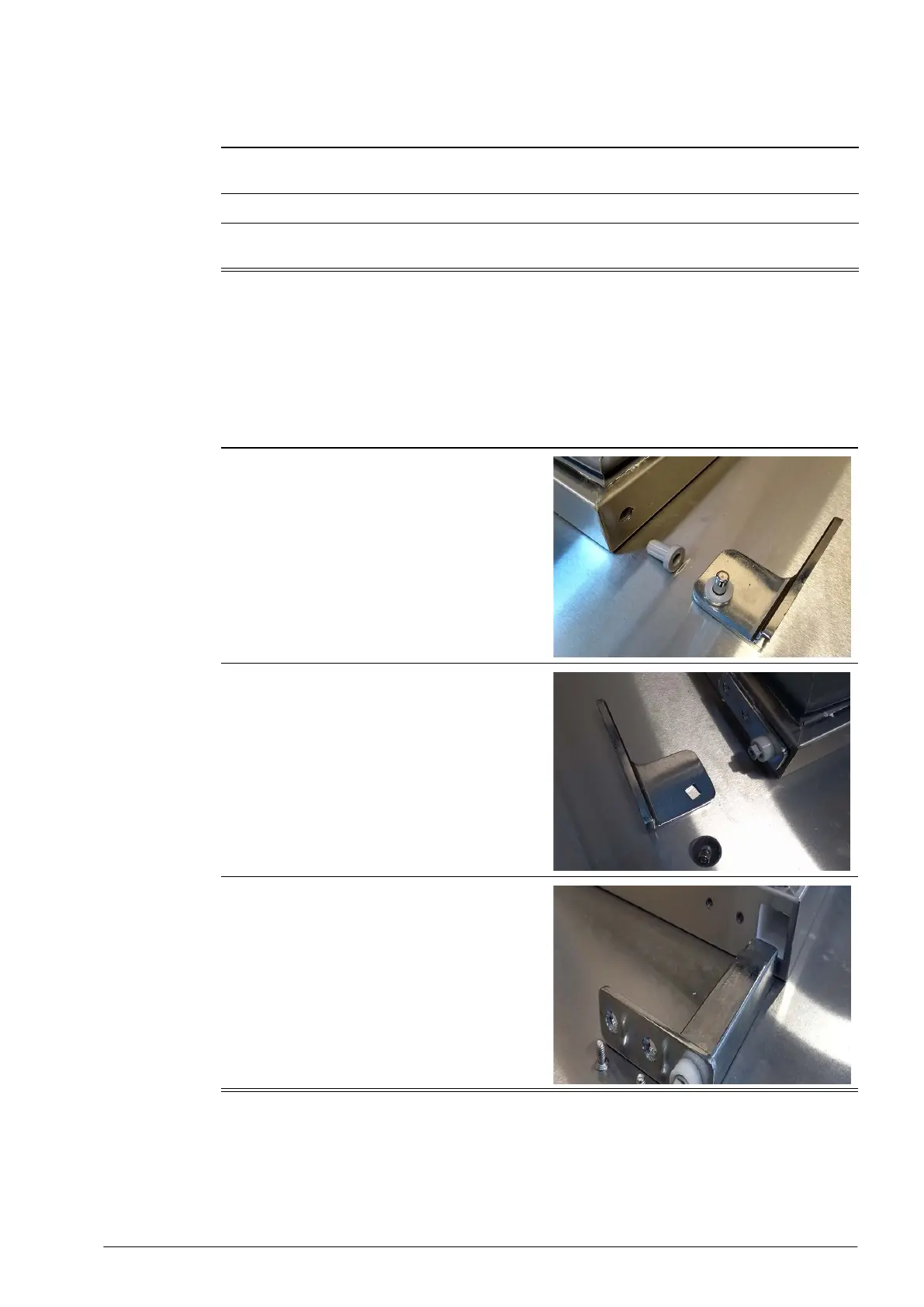

Procedure 8: To remove the hinges
1. Remove the top hinge, washers and bush
from the top of the door.
2. Unscrew and remove the bottom hinge and
washers from the bottom of the door.
3. Unscrew and remove the self-closing hinge
from the bottom of the door.
