Replacement Procedures
Service Manual
SKOPE Reflex Underbench Fridge and Freezer
6 Replacement Procedures
Disconnect the Cabinet from the Power Supply
Disconnect the cabinet from the power supply before attempting any maintenance.
Lighting
The cabinet is fitted with LED modular interior lights. Ensure the light is replaced with the same
light type. Fluorescent or LED tubes cannot be used in place of LED modular lights.
Note: There are no lights on drawer cabinets.
The lighting is made up of three components which are replaceable:
• LED modular light/s
• Light power supply
• Interior wiring loom
Lighting components are all non-serviceable items. If a component is faulty, it should be
removed and a SKOPE OEM new replacement component fitted.
Refer to Table 14, “Cabinet and cartridge troubleshooting,” on page 58 to determine what
component may be at fault, and the procedures over the next few pages for component
replacement instructions.
Ensure the cabinet is isolated from the power supply before cleaning or removing parts.
Procedure 3: To disconnect the cabinet
1. Switch the cabinet off at the mains power supply.
2. Unplug the power cord from the mains power supply.
IMPORTANT
Replace the light with the same SKOPE OEM part.
DO NOT use alternative LED strip or tube lights, or fluorescent
tubes.
Procedure 4: To replace an interior light component
1. Unplug the cabinet from the power supply.
2. Remove the shelves from either side of the
light.
3. Unplug the light.
4. Unscrew and replace the light.
5. Plug the light in and reassemble the shelves.
6. Reconnect to the power supply and check for correct operation.

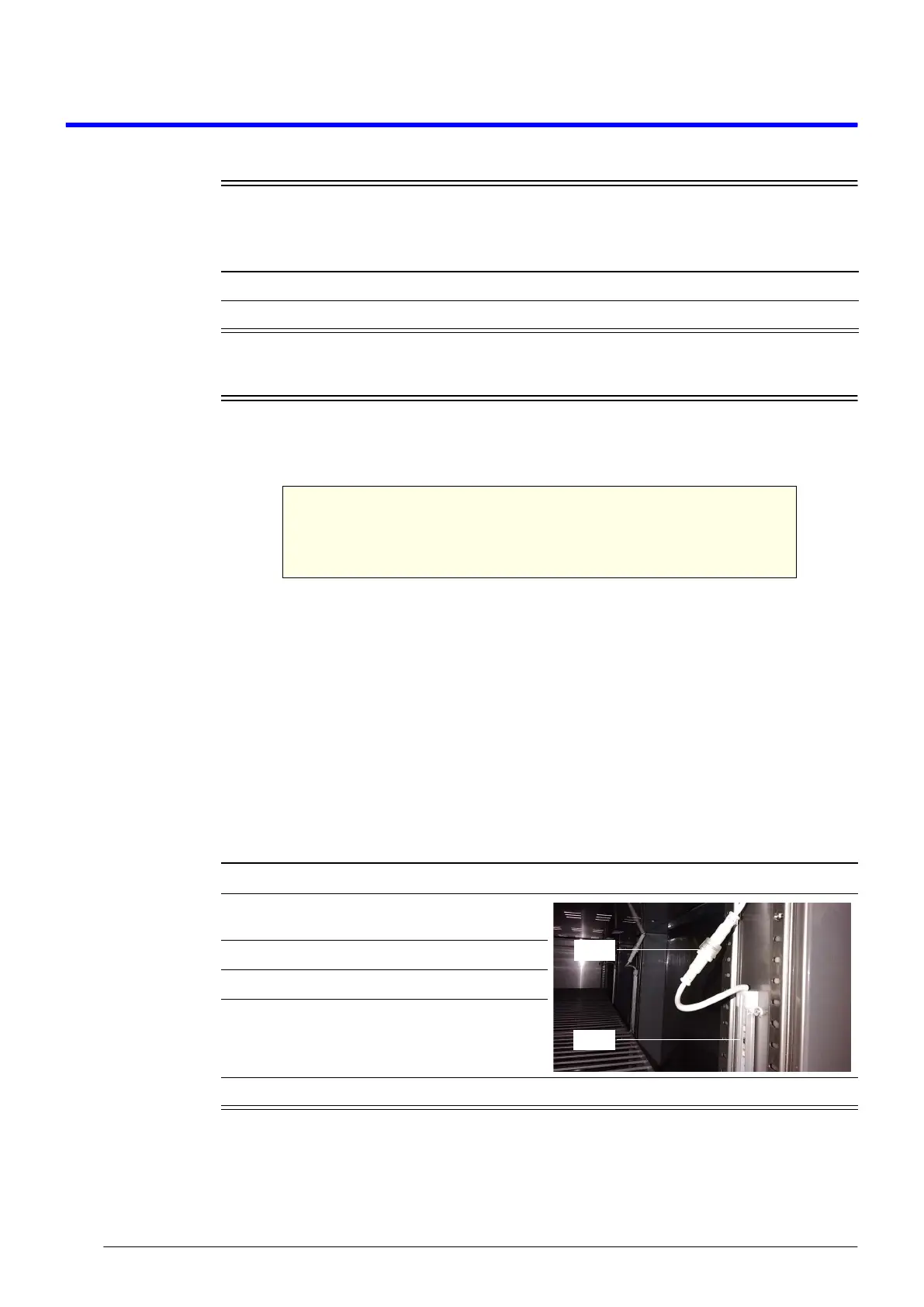

Light
Plug
To Next Page
