SKOPE Reflex Underbench Fridge and Freezer
Replacement Procedures
Service Manual
Cartridge
Electrics Panel
The cartridge electrics panel (including light power supply) is matched to the cabinet, and must
be left with the cabinet when exchanging the cartridge. Replacement spare part cartridges are
not supplied with an electrics panel.

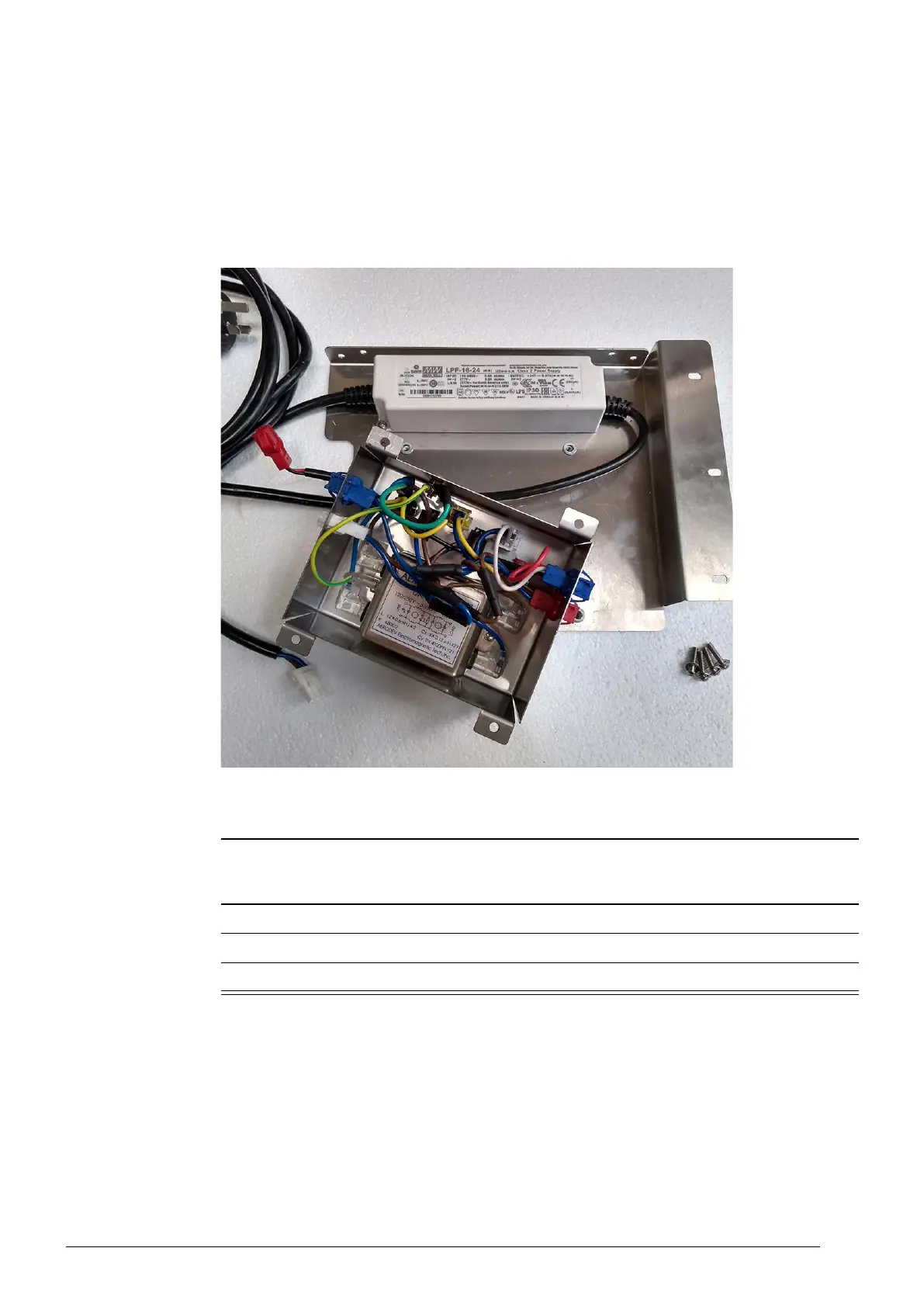

The cartridge electrics panel assembly contains the light power supply, EMI filter and panel
mount socket connectors for the cartridge and cabinet.
Due to the confined space within the cartridge electrics box, plugs may come loose as a result
of movement and vibrations during servicing. Take care when refitting to ensure all plugs are
securely attached to the correct sockets.
Procedure 16: To remove the cartridge electrics panel and open the electrics box
Before you start
If a customer reports a “not cooling” fault, and it has been established that the cabinet is not cooling,
follow the “On-site Work Procedure” on page 48 when making the service visit.
1. Remove the cartridge from the cabinet (see page 31).
2. Unscrew the panel from the cartridge (5 × screws).
3. To open the box, unscrew the four screws and lift the box off the panel.
