38
Replacement Procedures
Service Manual
SKOPE Reflex Underbench Fridge and Freezer
Condenser
Fan

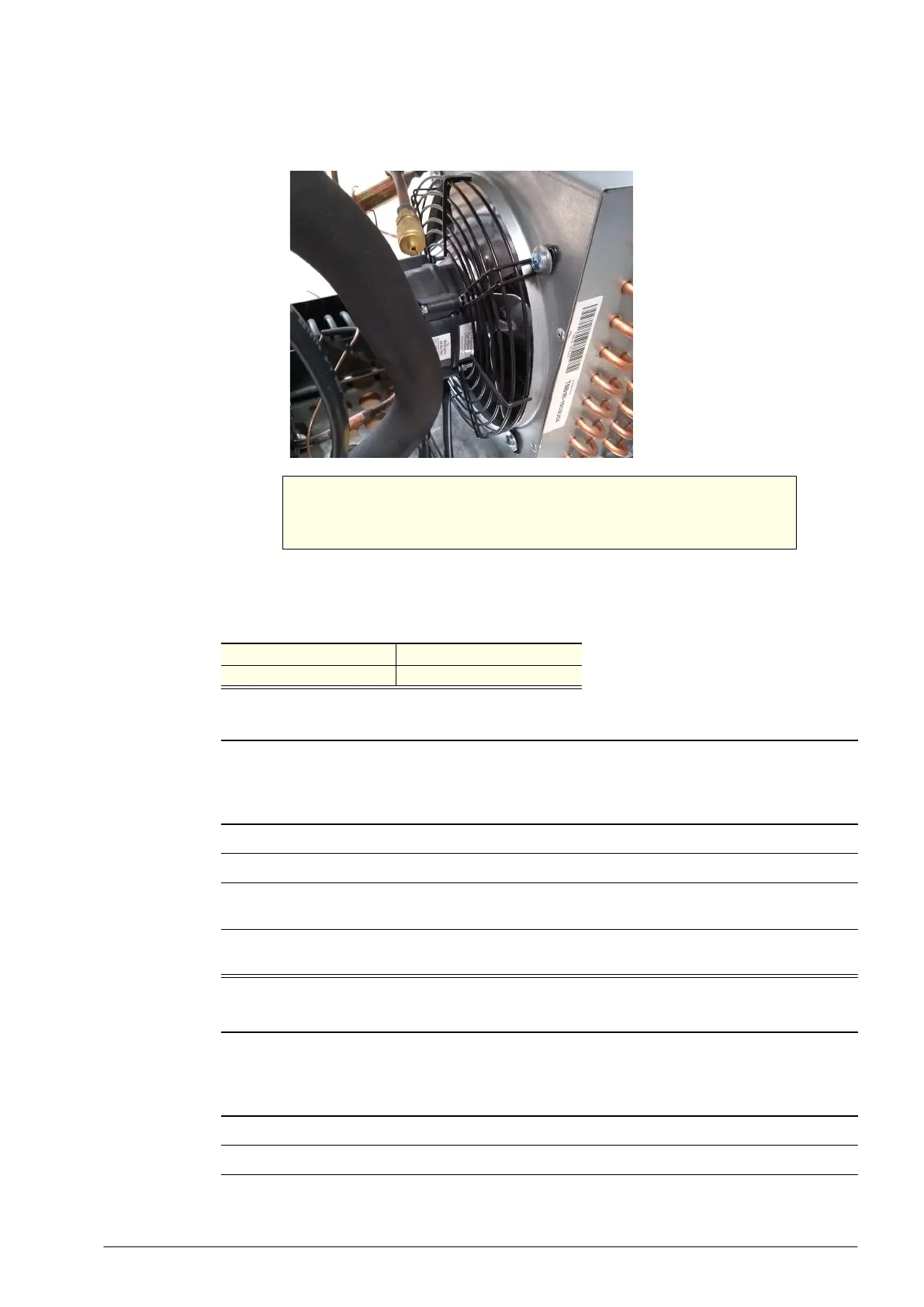

The condenser fan assembly is made up of a fan motor, fan blade and mounting brackets
which can be replaced if necessary.
If the fan stops for any reason, check all connections to ensure no plugs have come loose.
It is important to replace the fan blade and/or fan motor with the same part to ensure safety,
correct alignment, refrigeration performance, and compliance. Tighten the fan blades to the
recommended torque settings (shown in the table below).
IMPORTANT
Replace the motor with the same SKOPE OEM part.
DO NOT use alternative parts.
Table 10: Recommended torque settings
Fan motor manufacturer Torque setting
Wellington Drive 1.4 Nm
Procedure 17: To access and remove the condenser fan assembly
Before you start
1. If a customer reports a “not cooling” fault, and it has been established that the cabinet is not
cooling, follow the “On-site Work Procedure” on page 48 when making the service visit.
2. Make sure you take note of the original condenser fan motor cable’s path, e.g. a photo.
1. Remove the cartridge from the cabinet (see page 31).
2. Remove the electrics panel (see page 37).
3. Cut the cable ties holding the condenser fan motor cable along the cartridge, and free up the
condenser fan motor cable.
4. Unscrew the condenser fan assembly from the condenser coil, and remove the assembly (fan
motor, fan blade, mounting brackets) from the cartridge by lifting the shroud up and out.
Procedure 18: To replace the condenser fan blade
Before you start
1. If a customer reports a “not cooling” fault, and it has been established that the cabinet is not
cooling, follow the “On-site Work Procedure” on page 48 when making the service visit.
2. Make sure you take note of the original cable’s path, e.g. a photo.
1. Remove the condenser fan assembly (see Procedure 17, on page 38).
2. Remove the screw and washer from the centre of the fan blade, and lift the blade from the motor.
