SKOPE Reflex Underbench Fridge and Freezer
Replacement Procedures
Service Manual
Condenser
Probe

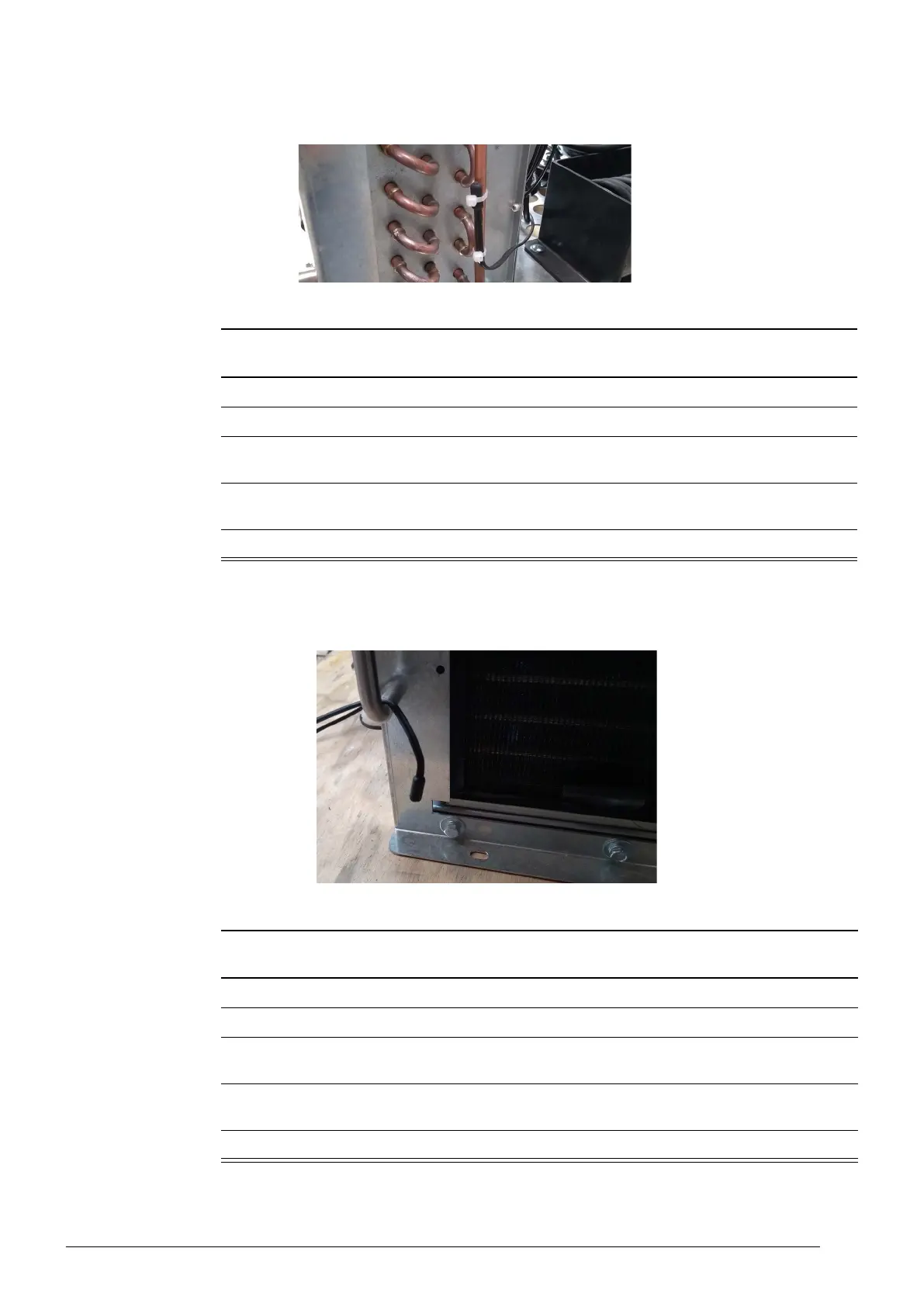

The condenser probe is located on the side of the condenser coil.
Ambient Probe The ambient probe is located in front of the condenser coil. It monitors the temperature around
the refrigeration cartridge. Note: The ambient probe is wired in series with the door switch.
Procedure 28: To replace the condenser probe
Before you start
Make sure you take note of the original condenser probe cable’s path, e.g. a photo.
1. Disconnect the cabinet from the power supply (see page 24).
2. Remove the refrigeration cartridge (see page 31).
3. Carefully cut the cable ties to release the probe cable. Detach the probe from the side of the
condenser coil, trace the probe cable back to its connector, and unplug it.
4. Following the same path as the original probe, run the new probe to the condenser coil and
secure with cable ties. Position the probe in the same location as the original probe.
5. Reassemble and test for correct operation.
Procedure 29: To replace the ambient probe
Before you start
Make sure you take note of the original ambient probe cable’s path, e.g. a photo.
1. Disconnect the cabinet from the power supply (see page 24).
2. Rermove the refrigeration cartridge (see page 31).
3. Carefully cut cable ties to release the probe cable. Detach the probe from the front of the
cartridge, trace the probe cable back to its connector, and unplug it.
4. Following the same path as the original probe, run the new probe to the condenser coil and
secure with cable ties. Position the probe in the same location as the original probe.
5. Reassemble and test for correct operation.
