SKOPE Reflex Underbench Fridge and Freezer
Replacement Procedures
Service Manual
Door and
Drawer
Locks
Each door or drawer is fitted with a key lock. The lock bolt can be removed and replaced. The
lock is foamed into the door and cannot be removed.
Castors and Legs
The cabinet is supplied fitted with swivel castors. The front castors are lockable, the rear
castors are free. A set of adjustable height legs is also included in the cabinet.
The castors can be removed for plinth mounting or for fitting the height-adjustable legs.

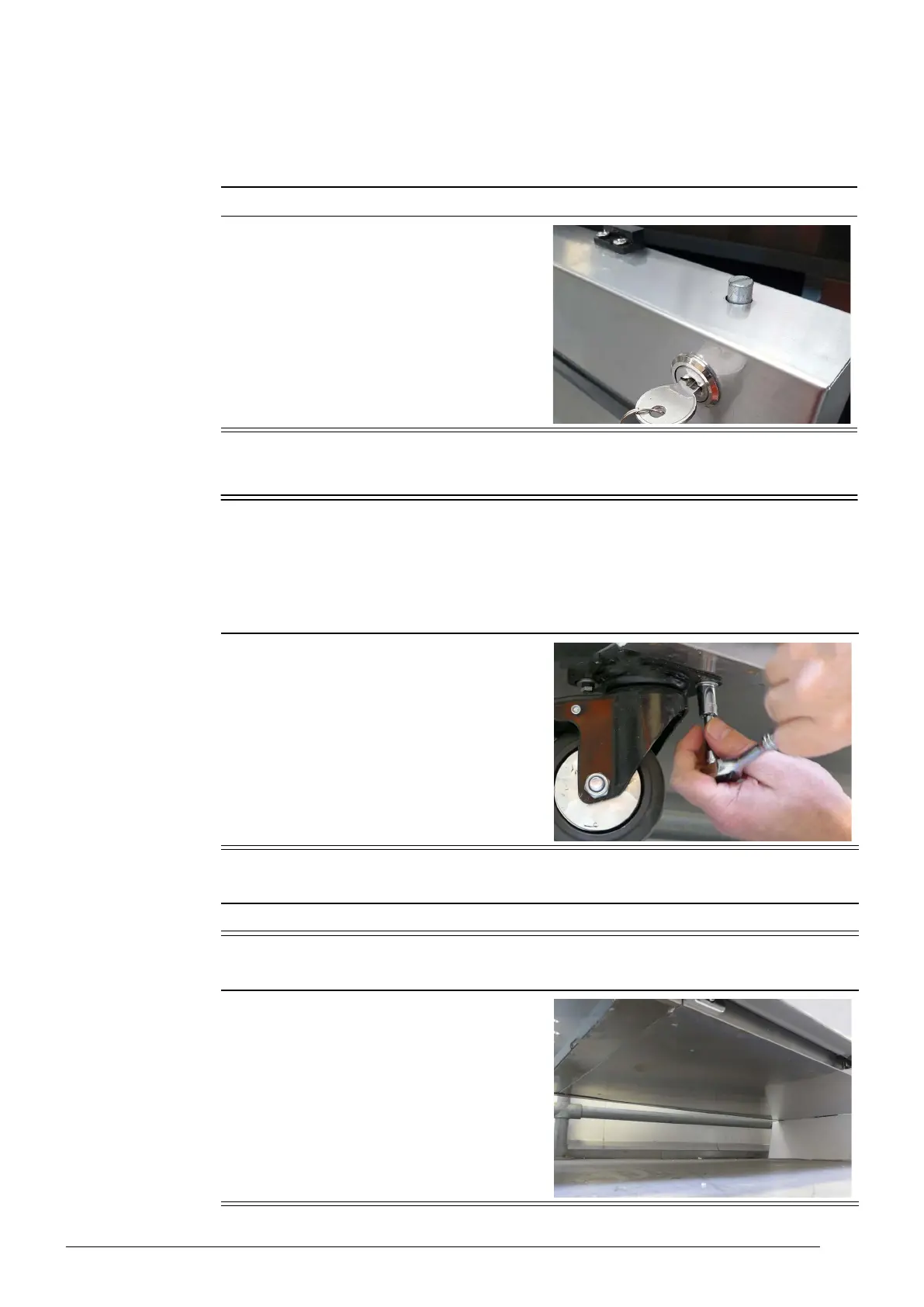

Procedure 9: To replace a door lock bolt
1. Unlock and open the door.
2. Use a slotted screwdriver to remove or fit the
lock bolt to the lock mechanism inside the
door.
Procedure 10: To remove the castors
1. Raise the cabinet off the ground, and unbolt
the castors from the bottom of the cabinet.
Procedure 11: To fit the adjustable height legs
1. Fit the supplied legs into the castor mounting holes.
Procedure 12: To plinth mount
1. The underside of the cabinet is completely flat
for plinth mounting.
