Electronic Controller
Service Manual
SKOPE Reflex Underbench Fridge and Freezer
5 Electronic Controller
Overview
The fridge is fitted with an SCS Connect electronic controller. The controller is located behind
the kick panel, in the electrics junction box, which is at the front of the refrigeration cartridge.
The controller is pre-programmed. SKOPE does not recommend changing the settings unless
it is absolutely necessary. To ensure efficient operation, the controller automatically forces a
defrost cycle when required.

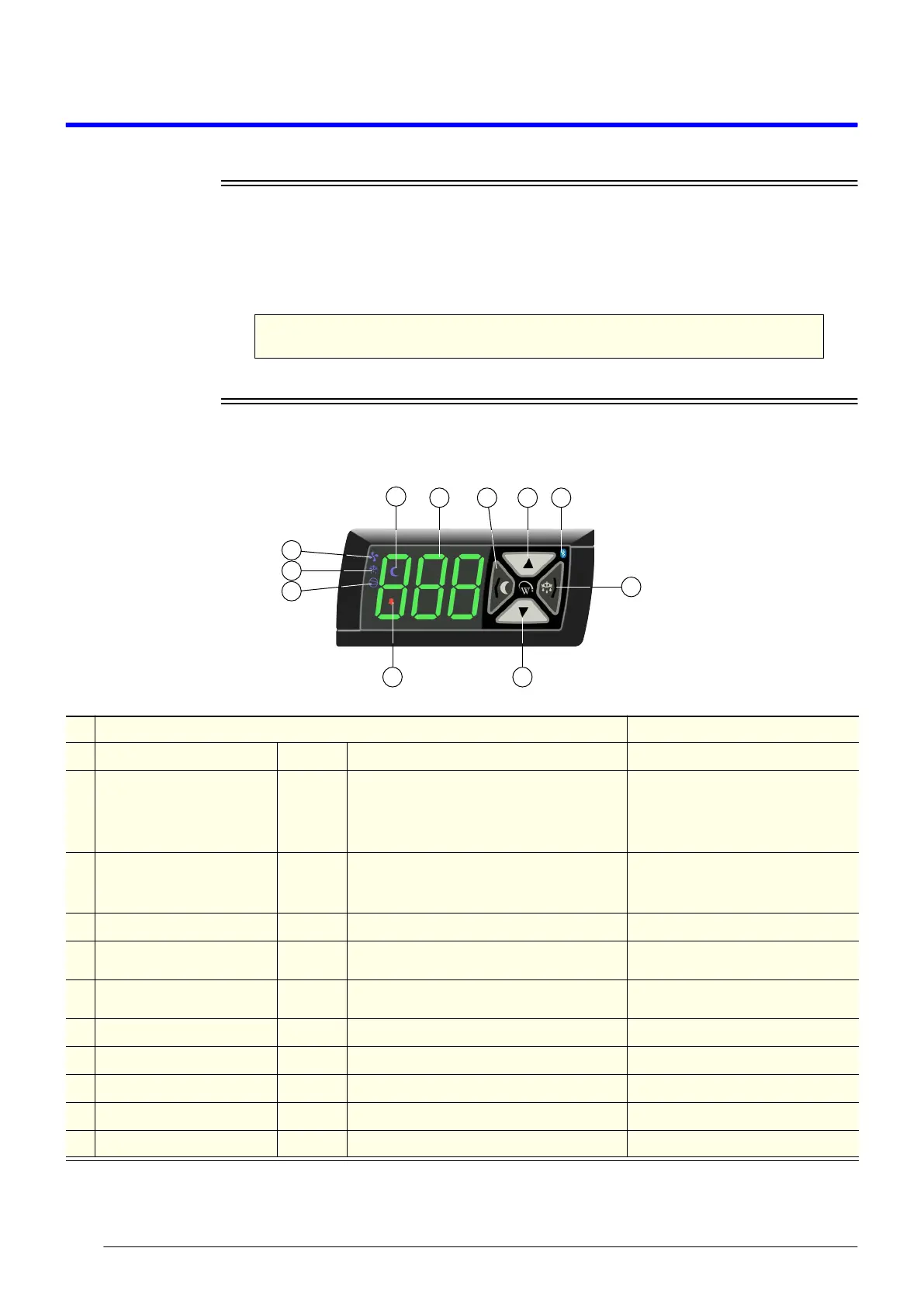

Controller Faceplate
Buttons and
Display
The faceplate includes the front display panel and interface buttons.
IMPORTANT
The controller must only be adjusted by an authorised service agent.
Table 2: Controller Faceplate
No. Description Use
1 Night Mode Indicator On during night mode.
2
Display Indicator
Digital display of:
• the cabinet’s air (not product)
temperature.
• alarm messages.
3
Light Switch - Night Mode
(back/abort)
Button Used during programming.
Press to switch the lights on or off.
Press and hold to switch the fridge
between Day and Night modes.
4
Up Button Used during programming.
5
Bluetooth Indicator
On when ready to connect to a device.
Flashing when connected to a device.
6
Defrost Cycle (next/enter) Button Used during programming.
Press and hold to start a manual
defrost.
7
Down Button Used during programming.
8
Fault - Alarm Indicator On during a fault or alarm.
9
Compressor Indicator On when the compressor is running.
10
Defrost Mode Indicator On during the defrost cycle.
11
Fan Indicator On when the fans are running.
1
2 3 4 5
8 7
11
10
9
6
