Replacement Procedures
Service Manual
SKOPE Reflex Underbench Fridge and Freezer
Evaporator
Fan
The evaporator fan assembly is a one piece assembly which can be replaced if necessary.
If the fan stops for any reason, check all connections to ensure no plugs have come loose.
Refer to the label on the electrics box cover to identify the evaporator fan plug and socket in
the electrics box.
The fan assembly is fixed to evaporator shroud with screws and metal bars.
It is important that the assembly is replaced with the same part to ensure safety, correct
alignment and refrigeration performance, and compliance.
IMPORTANT
Replace the motor with the same SKOPE OEM part.
DO NOT use alternative parts.
Procedure 20: To access and replace the evaporator fan assembly
Before you start
1. If a customer reports a “not cooling” fault, and it has been established that the cabinet is not
cooling, follow the “On-site Work Procedure” on page 48 when making the service visit.
2. Make sure you take note of the original evaporator fan motor cable’s path, e.g. a photo.
1. Remove the cartridge from the cabinet (see page 31).

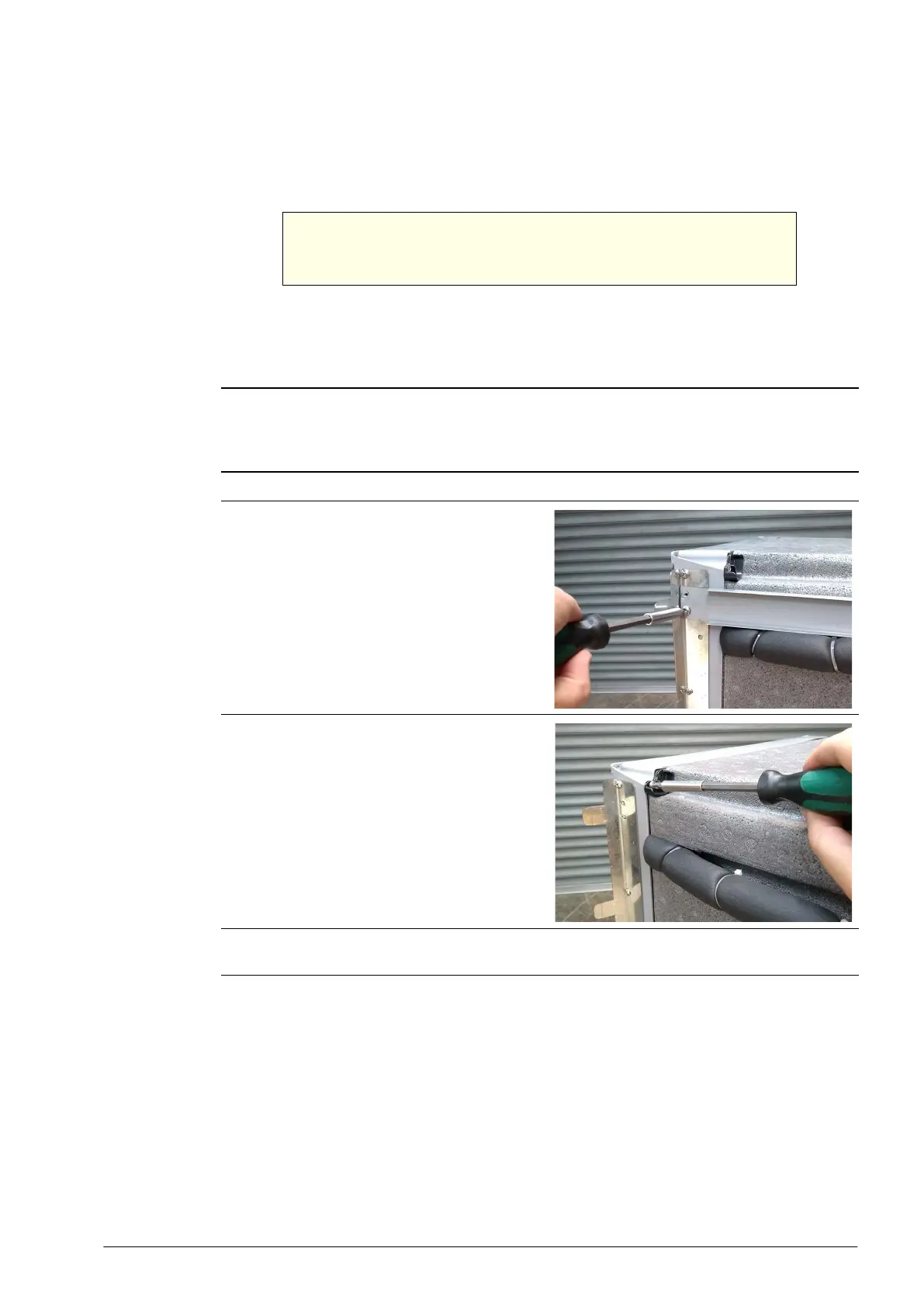

2. Unscrew and remove the evaporator tub strap
(2 × screws at each end of the strap).
3. Unscrew and gently remove the evaporator
tub (4 × screws, 1 at each corner).
4. Cut the cable ties holding the evaporator fan motor cable along the cartridge, and free up the
evaporator fan motor cable.
