SKOPE Reflex Underbench Fridge and Freezer
Replacement Procedures
Service Manual

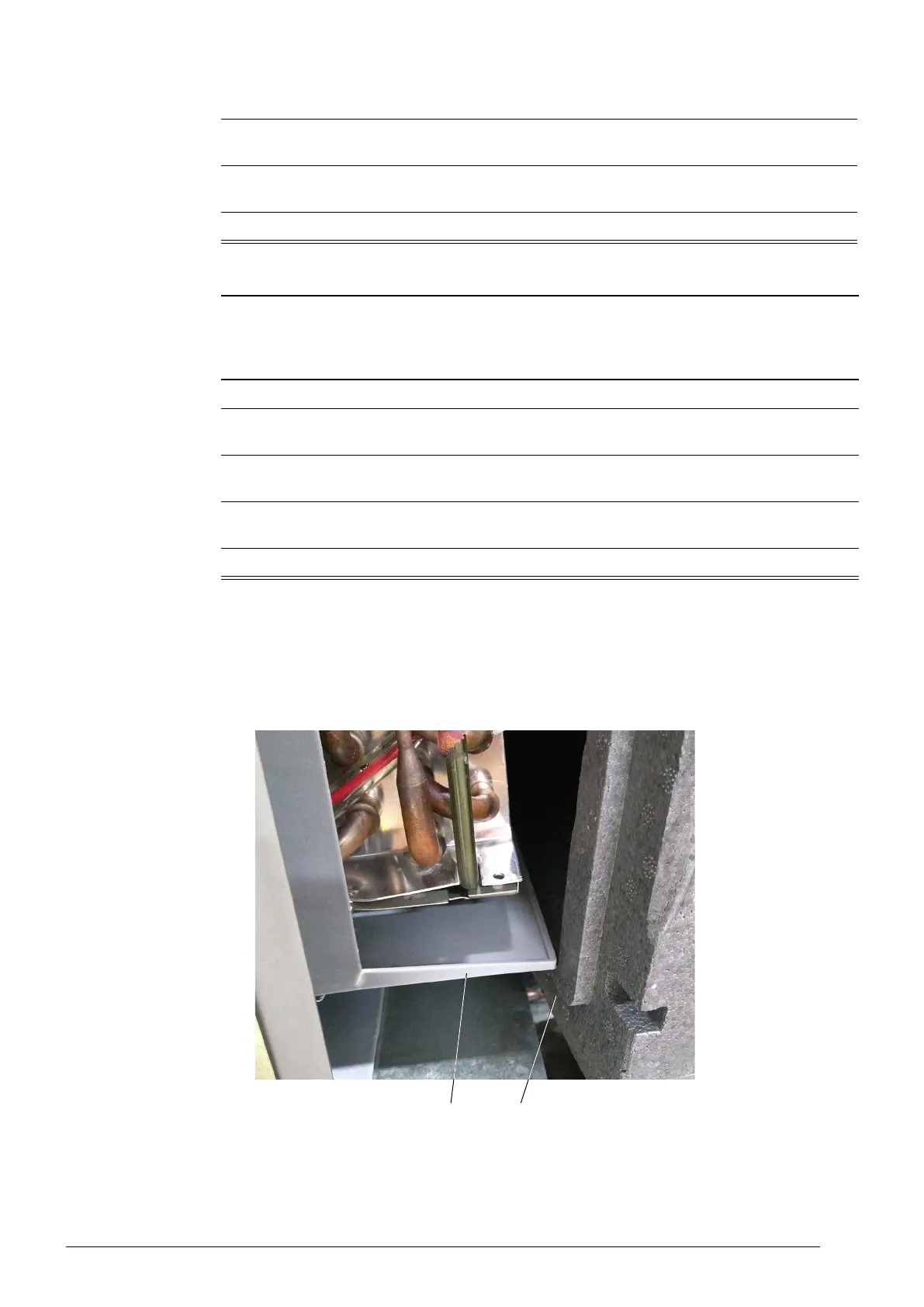

Evaporator
Tub
The evaporator tub is screwed onto the evaporator assembly via plastic corner brackets, and
is supported with a metal strap which wraps around the tub and screws onto the evaporator
assembly.
Only remove the evaporator tub if it is strictly necessary, not for routine maintenance.
When refitting the tub, start at the bottom and take care with the plastic drain tray which could
damage the tub if misaligned.
3. Replace new blade and fix with a 12 mm flat washer and serrated head screw. Tighten the blade
to 1.4 Nm (the recommended torque setting).
4. Refit the condenser fan assembly to the cartridge. Following the same path as the original,
secure the condenser fan motor cable with cable ties as necessary.
5. Reassemble and test.
Procedure 19: To replace the condenser fan motor
Before you start
1. If a customer reports a “not cooling” fault, and it has been established that the cabinet is not
cooling, follow the “On-site Work Procedure” on page 48 when making the service visit.
2. Make sure you take note of the original condenser fan motor cable’s path, e.g. a photo.
1. Remove the condenser fan assembly and the fan blade (see Procedure 17, on page 38).
2. Detach the fan motor from the fan mounting brackets by removing the four screws from the
mounting bracket.
3. Fit new motor and reattach fan blade with a 12 mm flat washer and serrated head screw. Tighten
the blade to 1.4 Nm (the recommended torque setting).
4. Refit the condenser fan assembly to the cartridge. Following the same path as the original cable,
secure the condenser fan motor cable with cable ties as necessary.
5. Reassemble and test.
Procedure 18: To replace the condenser fan blade (continued)
Plastic drain tray
Bottom of tub
